LONCIN G200F Shop Manual

G120F/G160F/G200F Part I specifications
- 10 -

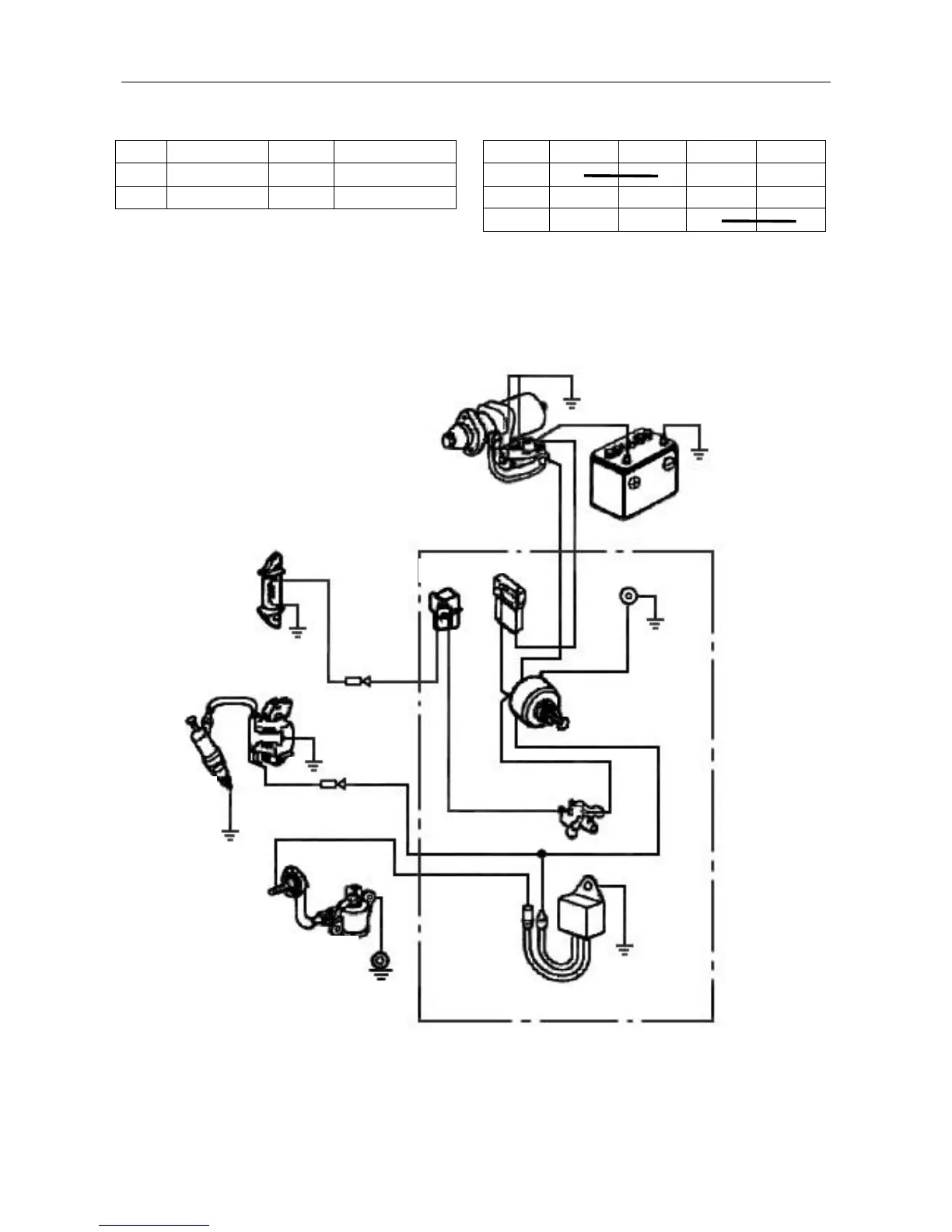

1-5 Wiring diagrams
Wire colors and codes Combination switch
BI Black Br Brown
Y Yellow R Red
W White G Green
IG E BAT ST
OFF ○ ○
ON
START
○ ○
1. With oil alert and electric starter
Control box
Rectifier
Ignitor
Charging coil
Spark plug
Oil level switch
Oil alert unit
Circuit
breaker
Engine switch
Starter motor
Battery
Starter solenoid
Fuse
W
Bl/W
Bl
Bl/R
Bl
Y
W
W
W
Br
W
W

LONCIN G200F Specifications

General

Displacement	196 cc
Compression Ratio	8.5:1
Fuel System	Carburetor
Starting System	Recoil start
Weight	16 kg
Fuel Type	Unleaded gasoline
Lubrication System	Splash
Engine Type	Forced air-cooled, 4-stroke, OHV, single cylinder
Bore x Stroke	68 mm x 54 mm
Max Power	6.5 HP (4.8 kW) / 3600 rpm
Ignition System	Transistorized magneto ignition
Fuel Tank Capacity	3.6 L
Oil Capacity	0.6 L
