LONCIN G200F Shop Manual

G120F/G160F/G200F Part IV Disassembly and maintenance
- 51 -
2. Piston/piston rings
Connecting rod
Marking
Piston
Piston pin

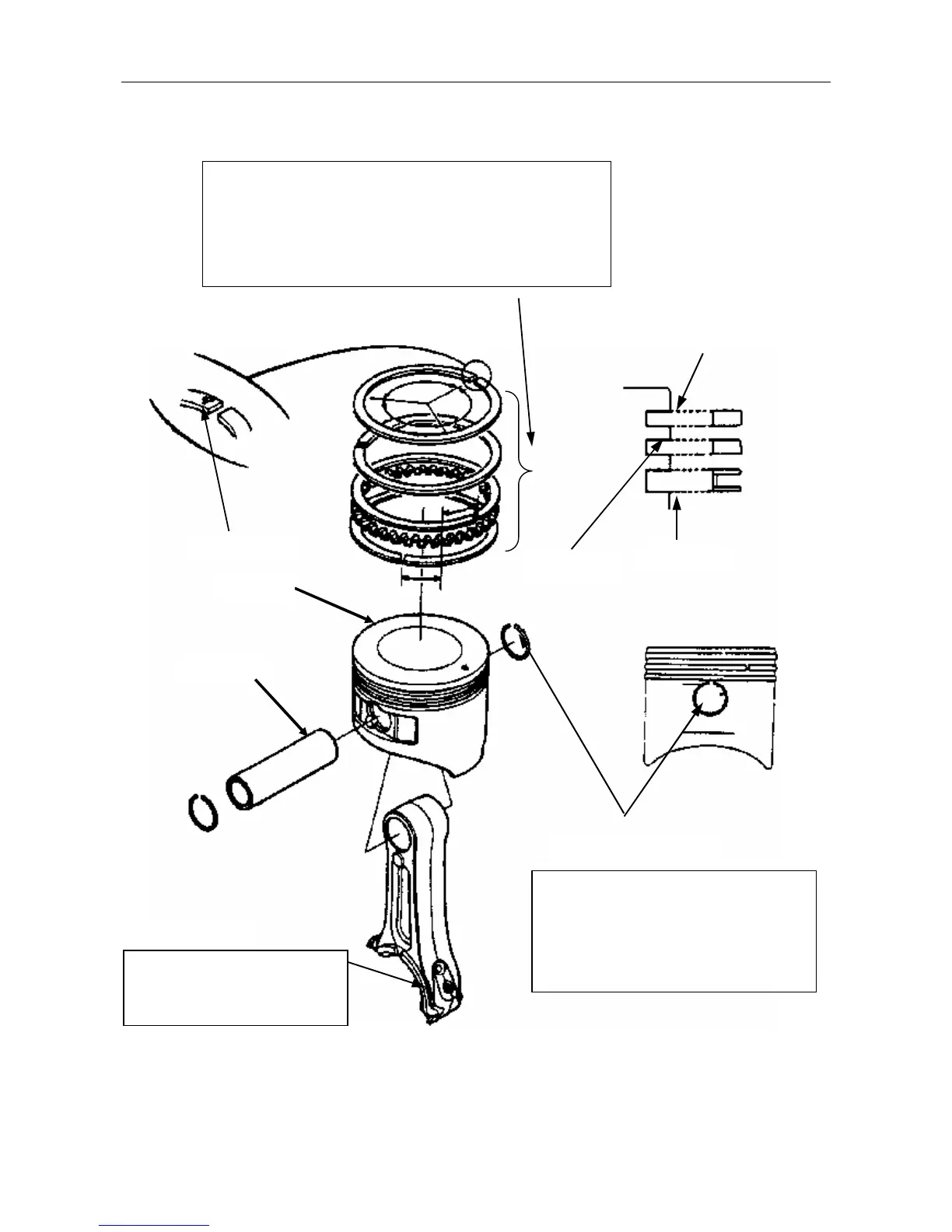

Reassembly:
Install the connecting rod with the
long end toward the triangle
marked side of the piston
Reassembly:
Install by setting one end of the clip in the
piston groove, holding the other end with
long-nosed pliers, and rotating the clip in.
Do not align the end gap of the clip with the
cutout in the piston pin bore
Piston pin clip
Reassembly:
1) Install all rings with the markings facing upward
2) Be sure that the top and second rings are not interchanged.
3) Check that the rings rotate smoothly after installation.
4) Space the piston ring end gaps 120 degrees apart and do not
align the gaps with the piston pin bore
Top ring (chrome plated)
Oil ring
Second ring

LONCIN G200F Specifications

General

Displacement	196 cc
Compression Ratio	8.5:1
Fuel System	Carburetor
Starting System	Recoil start
Weight	16 kg
Fuel Type	Unleaded gasoline
Lubrication System	Splash
Engine Type	Forced air-cooled, 4-stroke, OHV, single cylinder
Bore x Stroke	68 mm x 54 mm
Max Power	6.5 HP (4.8 kW) / 3600 rpm
Ignition System	Transistorized magneto ignition
Fuel Tank Capacity	3.6 L
Oil Capacity	0.6 L
