CHASSIS
7-5

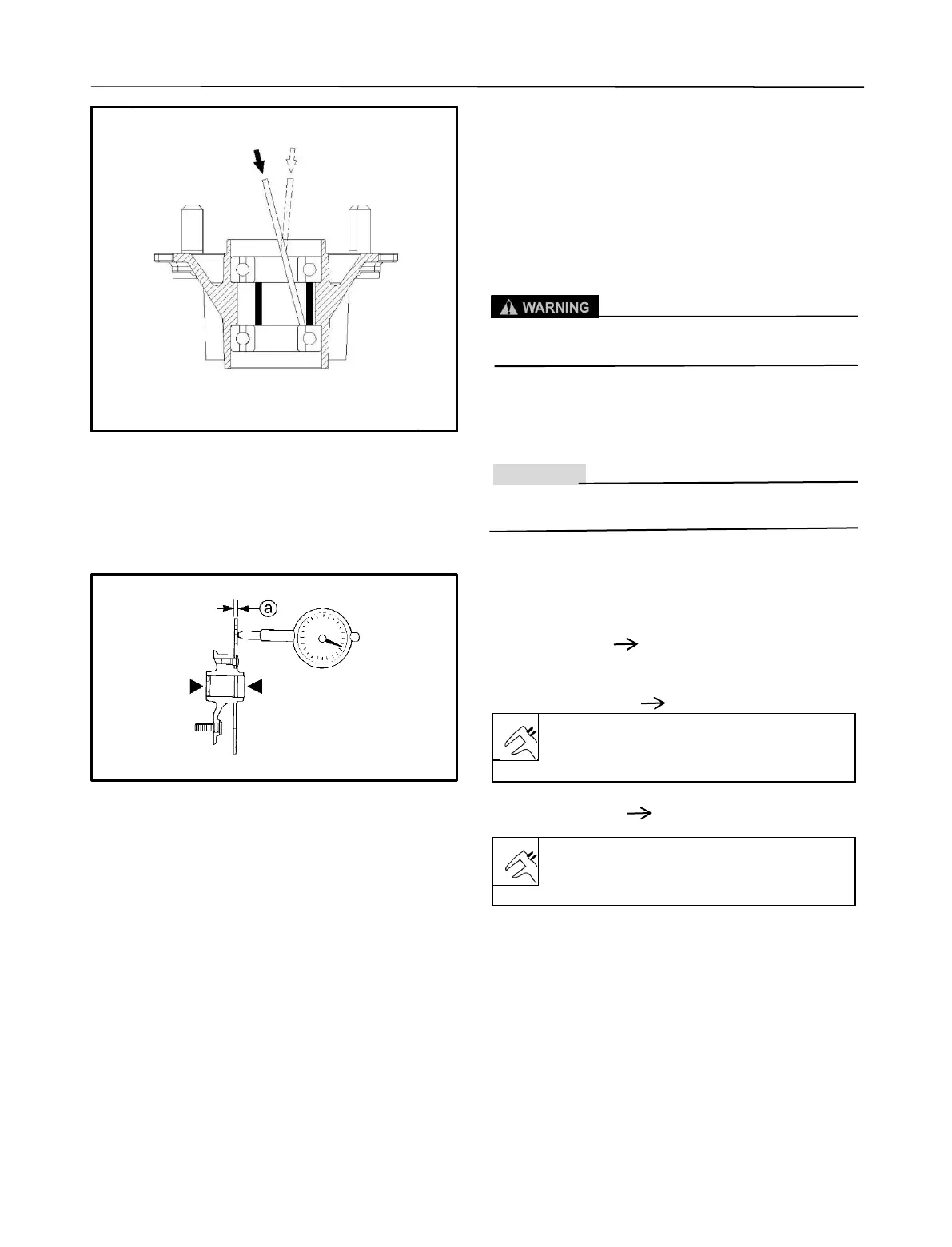

2. Check:
• Wheel bearings
Wheel hub play/wheel turns roughly →Replace.
a. Clean wheel hub exterior.
b. Drive bearing out by pushing spacer aside and tap-
ping around perimeter of bearing inner race.
Use soft metal drift punch and hammer. The spacer ①
“floats” between bearings. Remove both bearings as
described.
Eye protection is recommended when using strik-
ing tools.
c. To install the wheel bearings, reverse the above se-
quence. Use a socket that matches outside diameter of
bearing outer race to drive in bearing.
CAUTION:
Do not strike the center race or balls of the bearing.
Contact should be made only with the outer race.
Checking the brake discs
1. Check:
• brake discs
Galling / damage Replace.
2. Measure:
• brake disc deflection
Out of specification check the wheel rubout.
Brake disc maximum deection
Front: 0.1 mm (0.004 in)
Rear: 0.1 mm (0.004 in)
• brake disc thickness ⓐ
Out of specification Replace.
Brake disc minimum deection
Front: 3.0 mm (0.12in)
Rear: 4.0 mm (0.16in)
