36

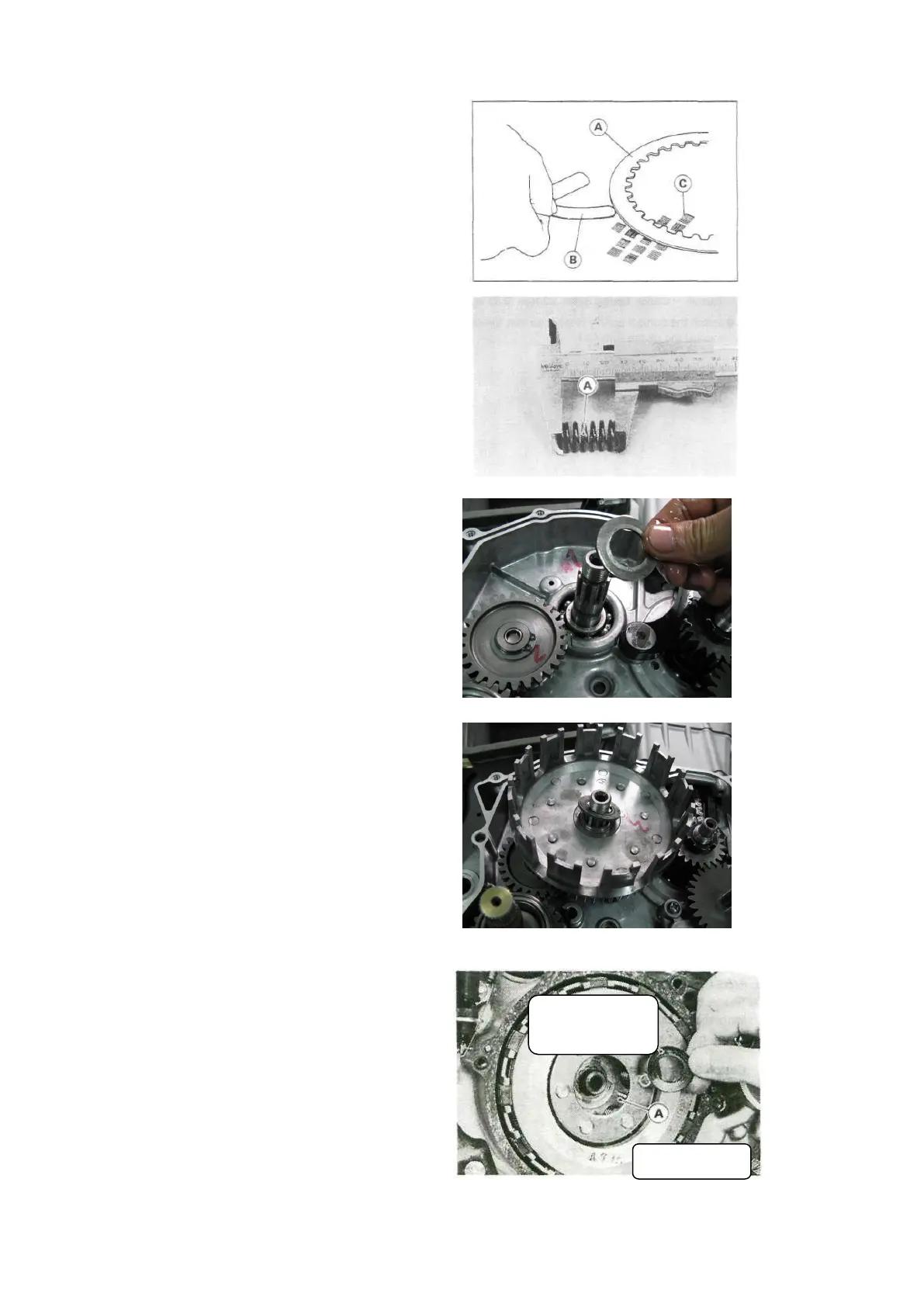

Check flatness of driven plate by
thickness gauge
Standard： ≤0.1
Limit：0.2
Check spring length under free condition
by vernier caliper
Standard： 35.5
Limit： 34
Install clutch and driving gear
Install woodruff key
Install driving gear
Install flat washer and shaft sleeve
of clutch
Install outer case of clutch
Install washer of lower surface
of clutch center case
Install center case comp.
Install washer of locking nut of clutch
Install locking nut of clutch
Installation torque：（70～80）N·m
