Look ZED 2 - Fitting Flanges Steps

16
GB

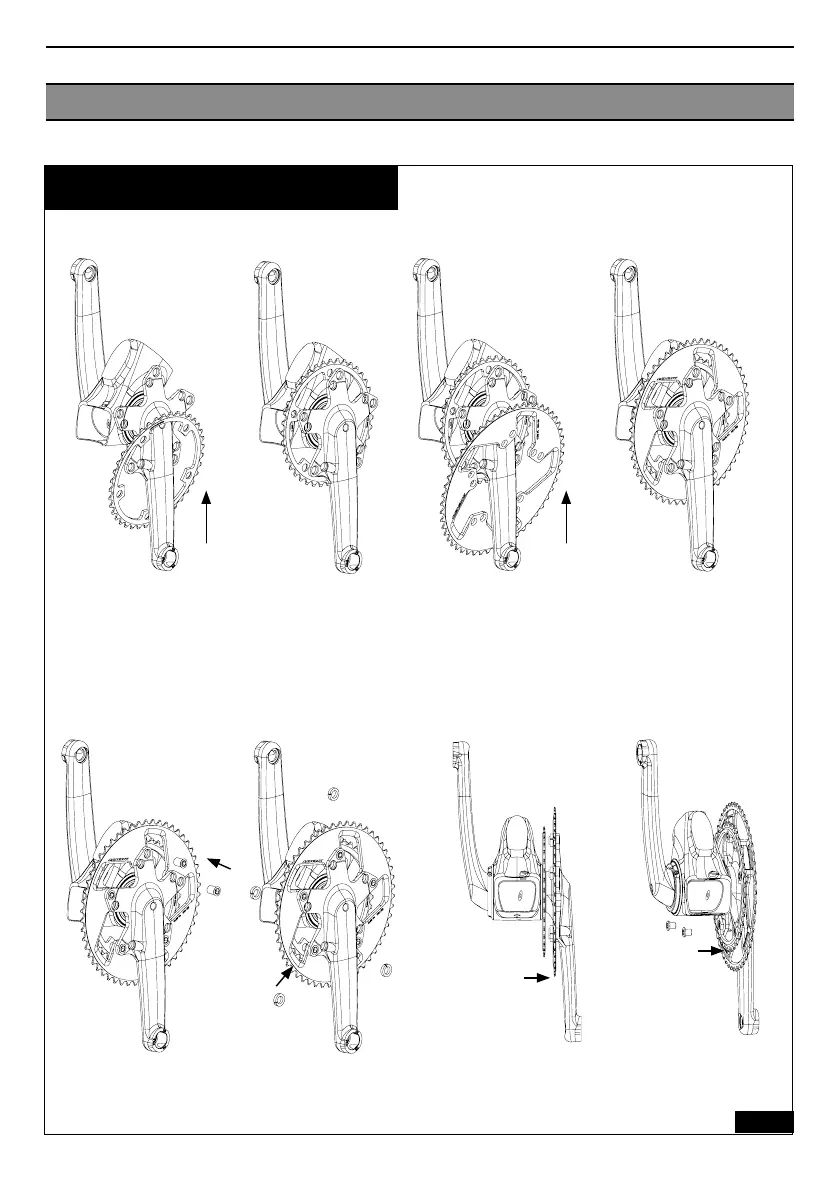

FITTING FLANGES
Fig 4
Place the inner chainring
over the right crank
Leave the inner chainring
for the time being at the
level of the axle
Place the outer chainring
over the right crank
Leave the outer chainring for the
time being at the level of the axle
Place the 5 chainring
attachment pieces
in position
Place the 5 inter-chainring
spacers in position
Place the inner chainring
tight against the crank
sub-assembly
Complete the assembly by
tightening the 5 chainring
attachment screws
