Fireplace Requirements

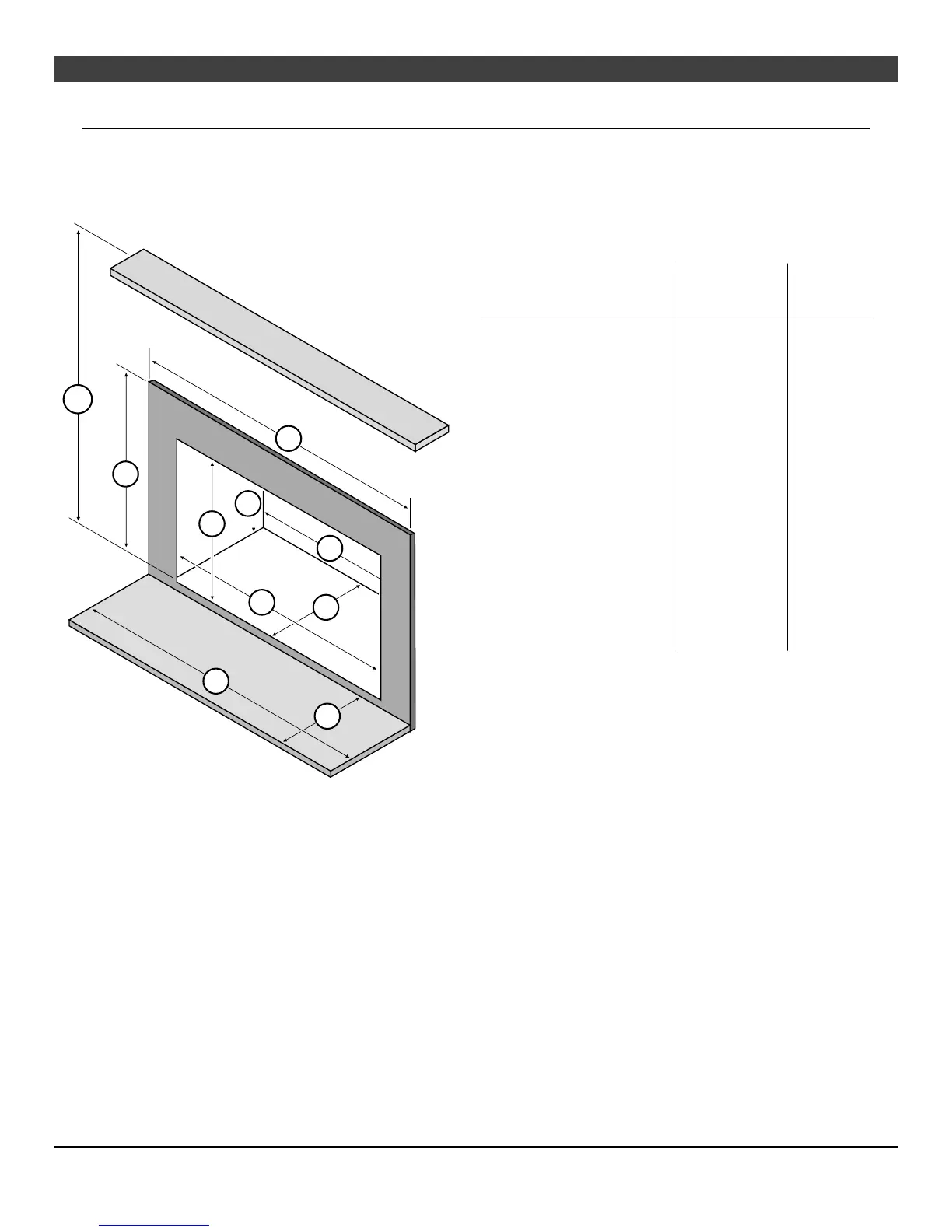

Figure 2 shows the minimum size requirements for the type of fireplace used.
a
c
e
f
Extended
(stock)
With
Flush Kit
Minimum Fireplace Size
a
b
c
d
e
f
g
h
i
j
Height (front)
Height (rear)
Width (front)
Width (rear)
Depth
Hearth Depth*
Hearth Width
Facing Width
Facing Height
with mantel shield
Mantel Height
with mantel shield
21-3/4"
21-3/4"
29-1/4"
21-1/4"
13-1/2"
23"
45-1/4"
56-1/4"
50-1/4"
37-1/4"
52-1/4"
39-1/4"
* This is the distance the insert protrudes from
the fireplace opening plus the required 16" of
hearth extension.
b
d
h
i
j
g
Non-Combustible Hearth
Combustible Mantel
Non-Combustible Facing
21-3/4"
21-3/4"
29-1/4"
21-1/4"
18-7/8"
17-5/8"
45-1/4"
56-1/4"
40-1/4"
N/A
40-1/4"
N/A
Figure 2
