LORD W9 - Drain Hose

12

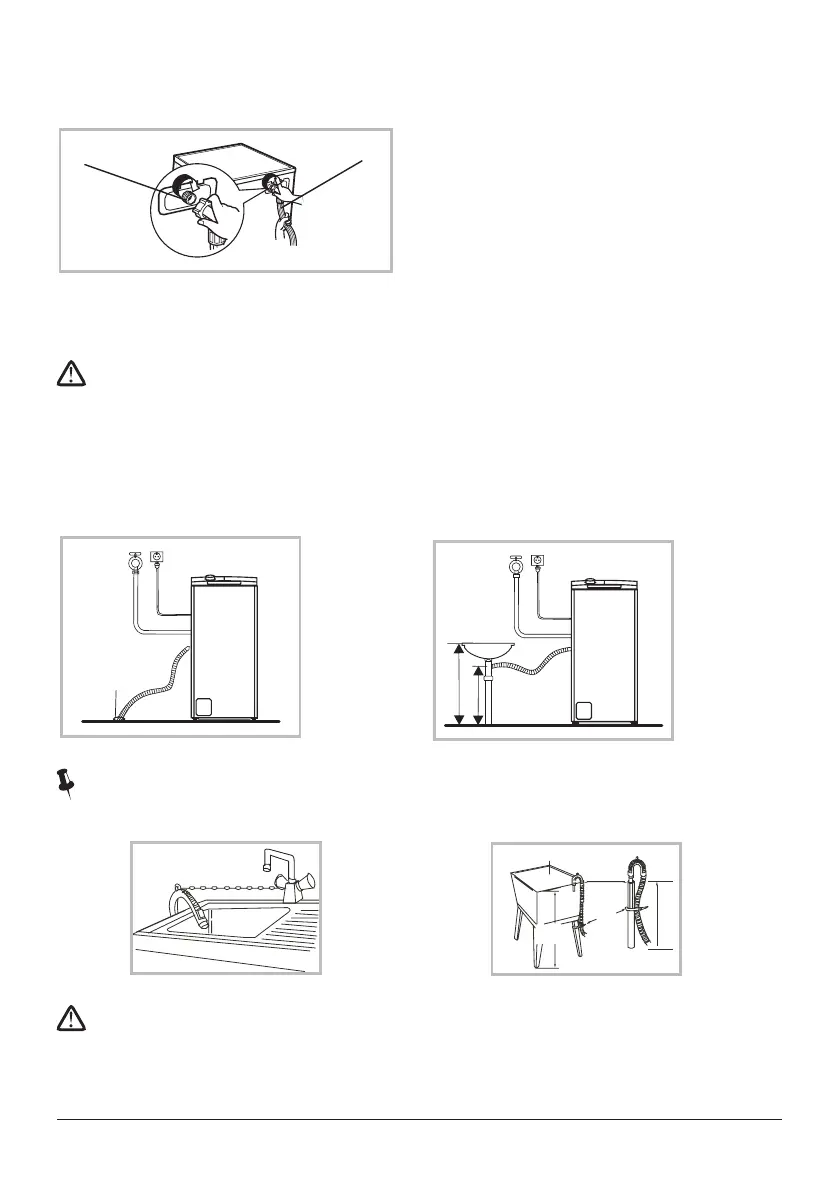

Connect the other end of inlet pipe to the inlet valve at the backside of product
and fasten the pipe tightly clockwise.
water Inlet valve
water supply hose
Drain Hose
Warning!
• Donotkinkorprotractthedrainhose.
• Positiondrainhoseproperly,otherwisedamagemightresultofwaterleakage.
There are two ways to place the end of drain hose:
1. Put it into the water trough.
Water
trough
Note!
• Theproductlinechartisforreferenceonly,pleaserefertorealproductasstandard.
Trough
Hose Retainer
Max.100cm
Min.60cm
Bind
Min.60cm
Min.100cm
Warning!
• Wheninstallingdrainhose,xitproperlywitharope.
• Ifdrainhoseistoolong,donotforceitintowashingmachineasitwillcause
abnormal noises.
2. Connect it to the branch drain
pipe of the trough.
Min.60cm
100cm
Max.
