Lorell Value Series User Manual

LLR44308/44309_081104
Page 21 of 63

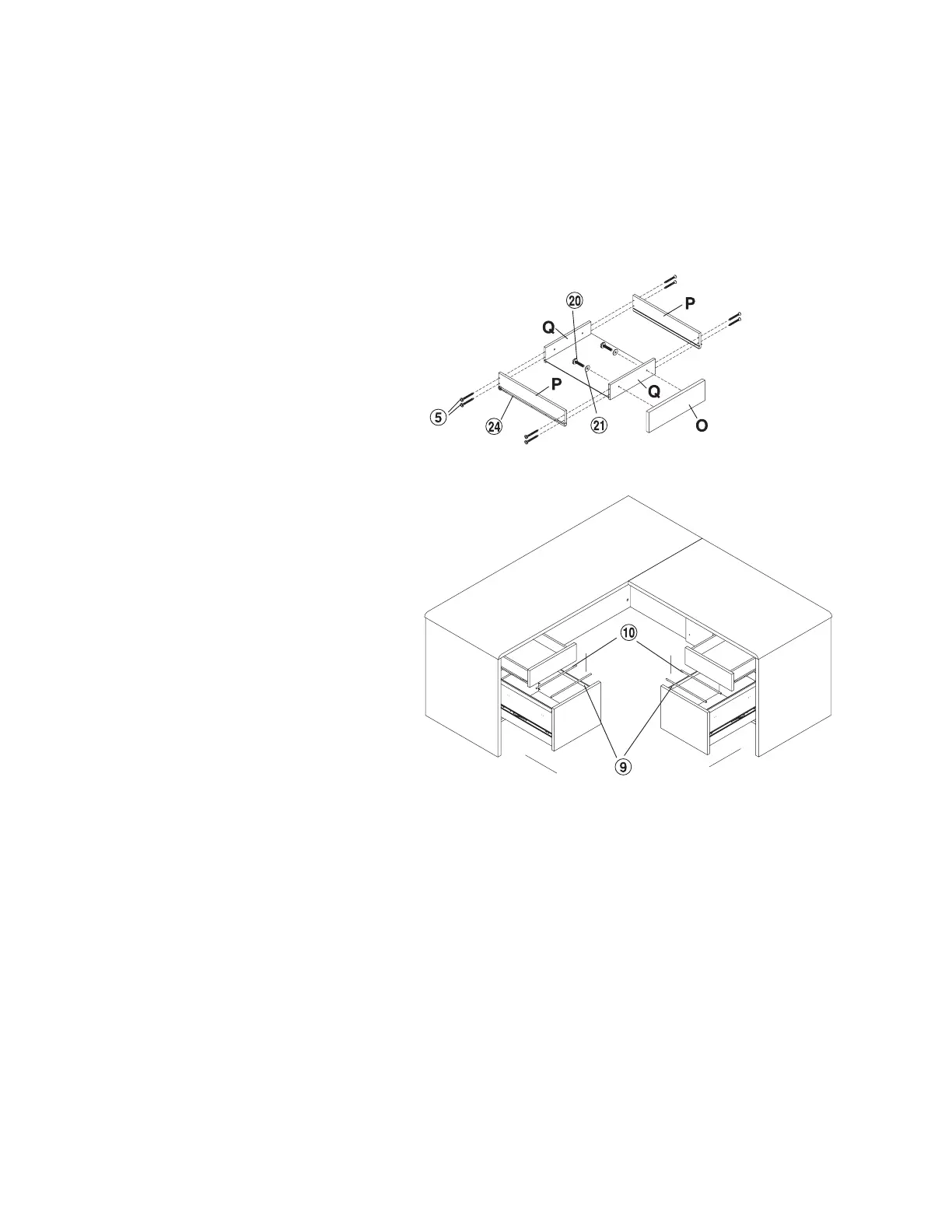

Step 21
Attach the Box Drawer Front and
Back Panel (Q) to the Bottom Panel
(R) making sure that the Bottom
Panel (R) fits securely into the
groove located in the Back Panel
(N).
Attach the Box Drawer Side Panels
(P) with 8 each 4X40 Screws (5) to
the Box Drawer Front and Back
Panel (Q).
Attach the Box Drawer Face Panel
(O) to the Box Drawer Front Panel
(Q) with 2 each 6X21 Bolt (20) and
Washer (21).
Insert the completed File Drawer
from step 19 into the Pedestal Desk
as shown.
Insert the 2 each Hangrail (10) and
2 each Hang Bar (11) into each File
Drawer as shown on the drawing.
Ensure that the lock mechanism
functions properly and adjust the
Lock Clip (8) as needed.
Insert the completed Box Drawer
into the Computer Desk as shown.
YOU HAVE SUCCESSFULLY
COMPLETED THE ASSEMBLY
OF THIS UNIT!
THANK YOU FOR YOUR
PURCHASE!
Box drawer side panel
Box drawer face panel
Box drawer
Front&back
panel
