LLR44308/44309_081104
Page 20 of 63

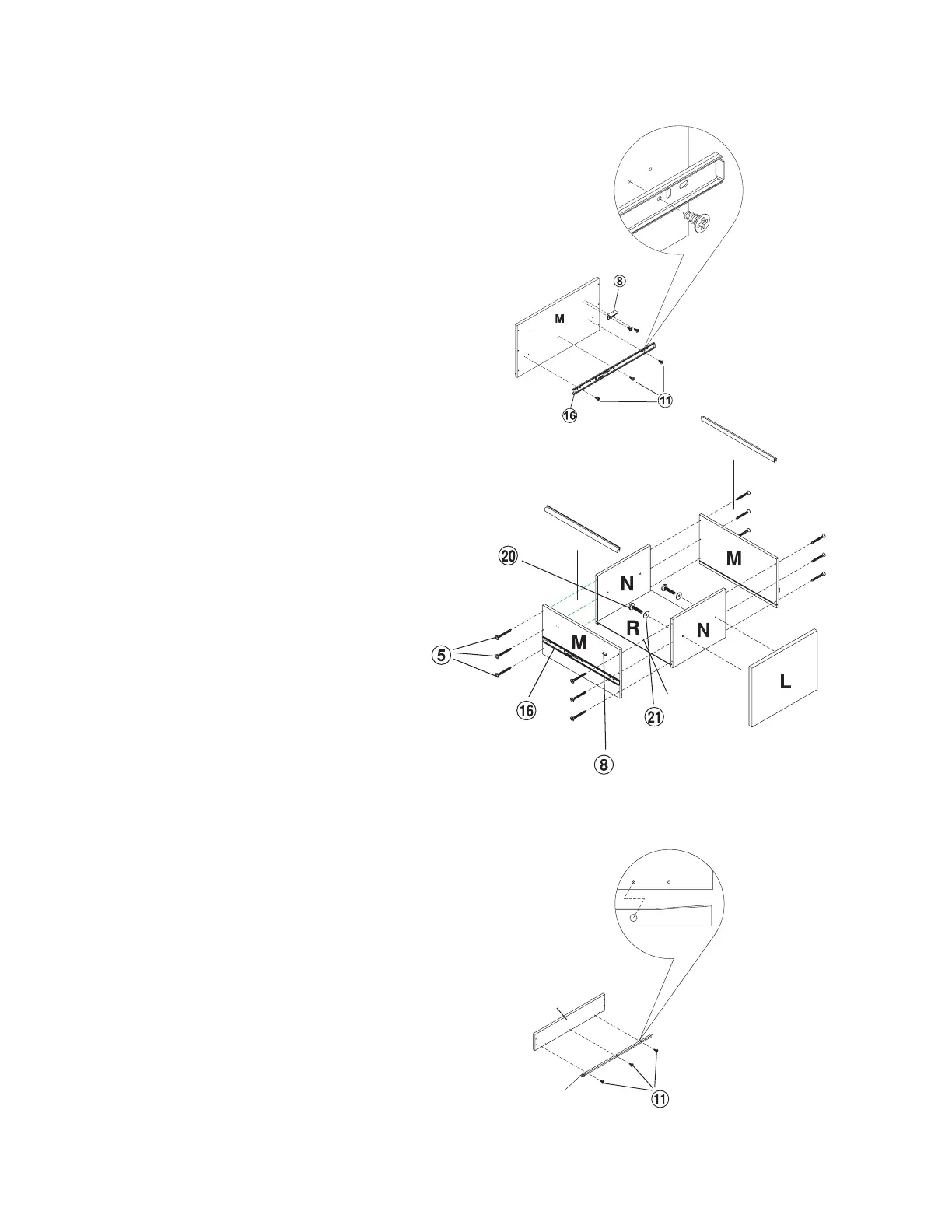

Step 18
Attach the Full Extension Slide (16)
to the 2 each Large Drawer Side
Panel (M) with 6 each 4X9.5 Screw
(11.
Install the Lock Plate (8) on the left
side Large Drawer Side Panel (M)
with 2 each 4X9.5 Screws (11).
Step 19
Install the File Drawer Front and
Back Panel (N) by sliding the
Drawer Bottom Panel (R) into the
groove on the bottom.
Using a Phillips Screw Driver,
attach the left and right side Large
Drawer Side Panel (M) with 12 each
4x40 Screw (5). Make sure that you
have properly placed the Drawer
Bottom Panel (R) in the groove
provided.
Attach the Large Drawer Face Panel
(L) to the front of the unit using 2
each 6X21 Bolt (20) and 2 each
Washer (21) with a Phillips Screw
Driver.
Step 20
Using a Phillips Screw Driver attach
the Box Drawer Track Left (24) and
Box Drawer Track Right (18) to the
2 each Box Drawer Side Panels (P)
with 6 each 4X9.5 Screws (11).
Note the hole location to be used on
the drawing for placement of
General Slide.
To Next Page
