PHOTO GALLERY

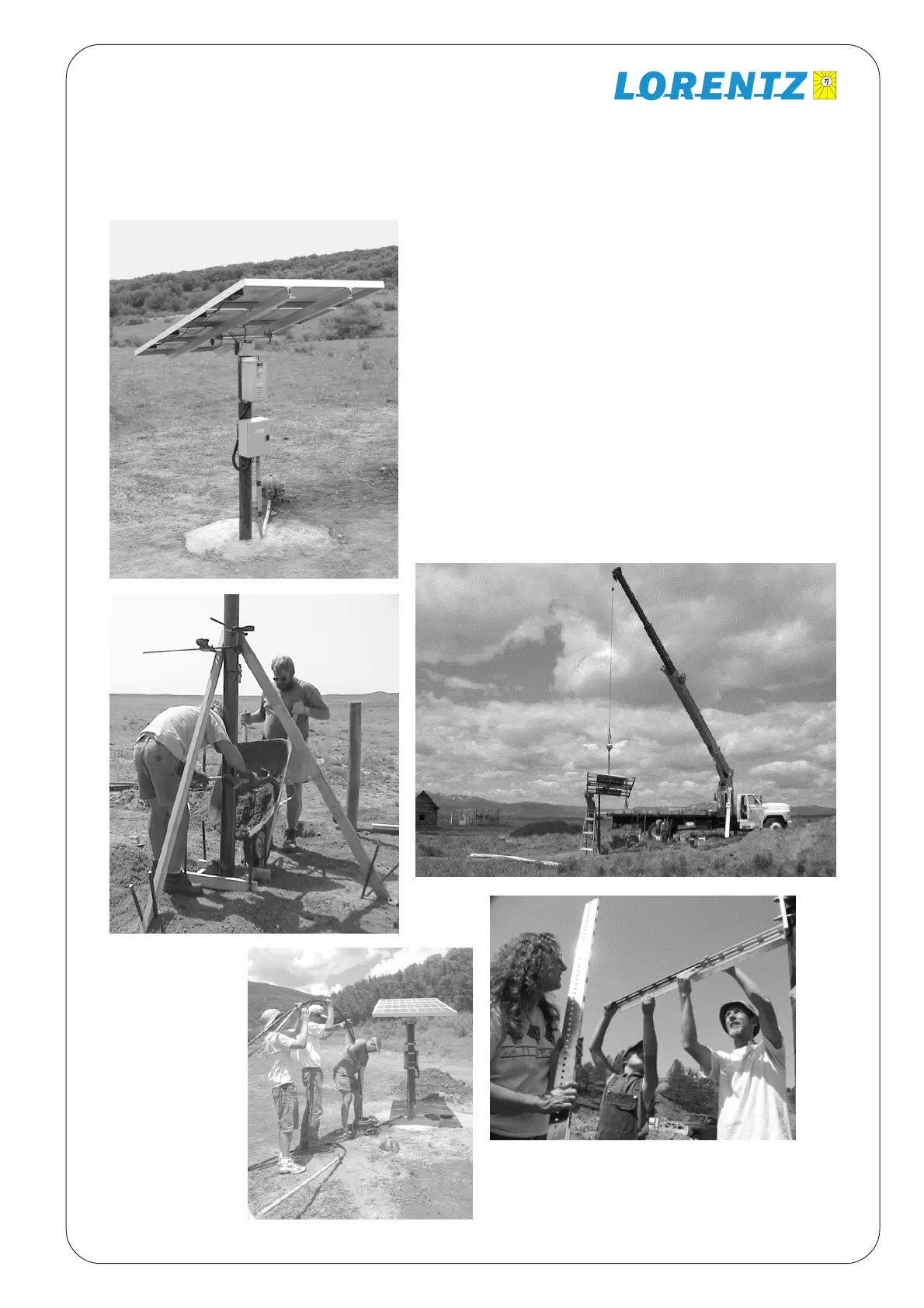

A MODEL INSTALLATION
A PS600 300Wp solar-direct system
Colorado, USA
This system was installed by students in a
solar water pumping class.
- The array is set at summer tilt angle.
- The controller is mounted on the north
side of the pole, directly under the array.
This shades it from the hot mid-day sun.
- Mounting and ground-bonding details are
shown in Section 5.1.
- Electrical conduit runs from the PUMP
junction box to the wellhead to protect the
pump wires. The water pipe is all under
ground.
Courtesy of Dankoff Solar Products, NM, USA
This PV array was
assembled and
wired on the
ground, then lifted
with a crane.
Courtesy of Dankoff Solar
Products,NM, USA
PS600 HR04-
300Wp system in
Colorado, USA,
installed by
students in a solar
pumping class.
The drop pipe is
0.75"
polyethylene.
Hand installation
requires caution
and is not always
recommended
(see Section 7.3)
Courtesy of Dankoff Solar
Products NM, USA
PV array assembly. The mounting pole is short
enough to facilitate assembly without mechanical
assistance.
Courtesy of Dankoff Solar Products, NM, USA
Setting an array
pole in con-
crete.
Courtesy of Dankoff Solar
Products, NM, USA
