Lorentz S1-200 User Manual

Controller input
max. input voltage (Voc) 55 V DC
Operating voltage 16...55 V DC
max. current (DC) 6 A
max. pv short circuit current
(Isc)
25 A
Controller output
Output voltage max. 55 V
BLDC PWM
3-Phase
Frequency max. 170 Hz
max. continuous current 6 A
max. continuous power 250 W
Case
IP class IP 68
Protective class Protective
class II
General
Ambient Temperature -40... +50 °C
Environmental category Outdoor
Wet location classication Yes
Pollution degree
classication
PD3
max. altitude rating max. 2000m
Overvoltage category
input/output
OC II
Explanation of warning symbols
l
WARNING – Disregard can lead
to injury, death or damage the
system

The WEEE Symbol means that
a device must be disposed of
separately from general household
waste. When a device reaches
the end of its lifespan, it must
be taken to a designated waste
collection point for safe disposal or
recycling.
When installing and using this electrical
equipment, basic safety precautions should
always be followed, including the following:
l
WARNING – To reduce the risk of
injury, do not permit children to
use this product unless they are
closely supervised at all times
WARNING – To reduce the risk of
electric shock, replace damaged
cords immediately
WARNING - Due to local laws an
external fuse might be necessary
WARNING – When the
photovoltaic array is exposed to
light, it supplies a DC voltage to
the controller
WARNING - Make sure that the
controller is unplugged when
installing the pump system
Keep pump out of direct sun during installation
to avoid overheating.
We recommend to use only one extension
cable. Using multiple extension cables will
reduce system performance.
l
WARNING - Do not try to open
the controller. This will damage
the controller and voids the
waranty
WARNING - Only connect
equipment that was provided by
the manufacturer or supplier to
this pump
Ensure the pump class is suitable for the water
temperature.

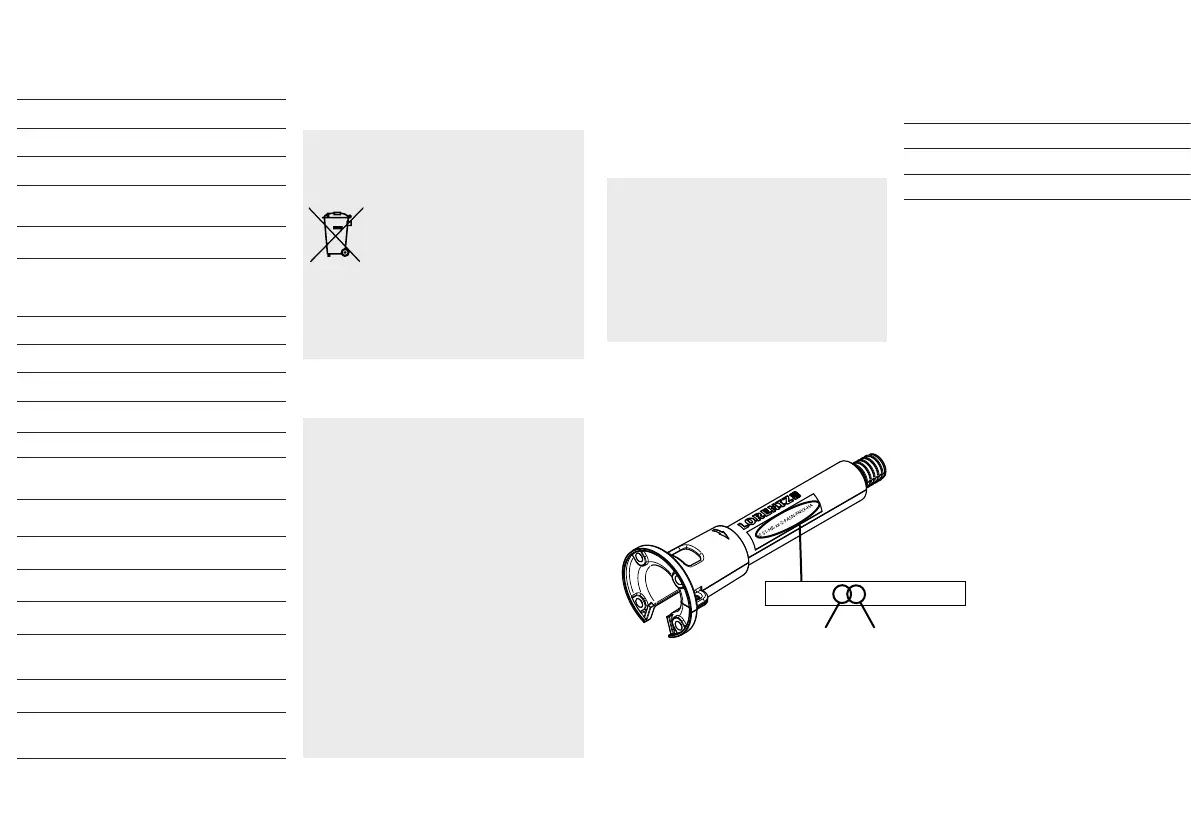

PE S1-HR-XX-X-PASN-FNXX-HA
Pump end type:
07
14
23
Temperature class:
2
3
4
EN
Temperature
class
Water temperature range
2 +20 – +30 °C (68 – 86 °F)
3 +30 – +40 °C (86 – 104 °F)
4 +40 – +50 °C (104 – 122 °F)
