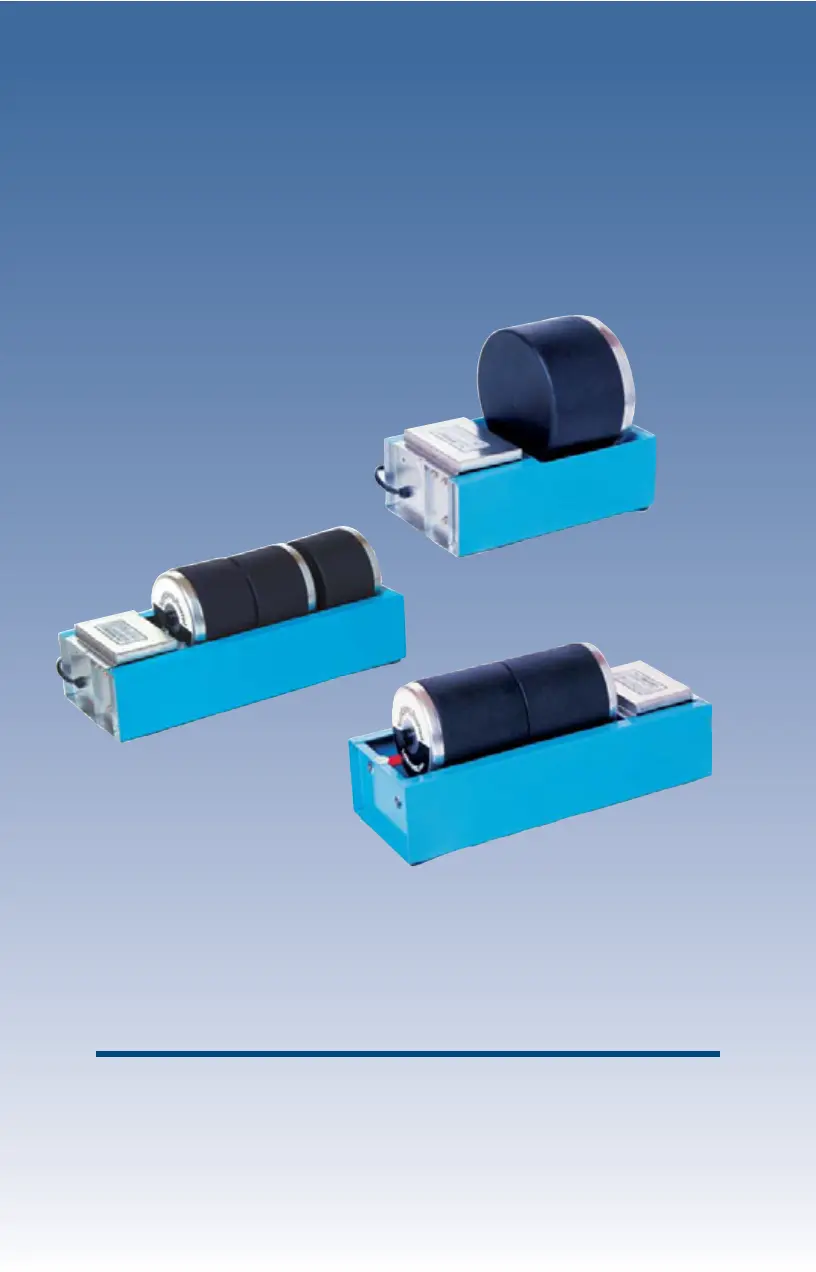

LORTONE

ROTARY TUMBLER

INSTRUCTIONS AND PARTS LIST

12130 Cyrus Way

Mukilteo, WA 98275

(425) 493-1600

Model

45C

Model

33B

Model

3-1.5B

Table of Contents

Questions and Answers:

R
Robert JonesAug 4, 2025
Why is my Lortone 3-1.5B Power Tool barrel not turning?
- C
  Cheryl GomezAug 4, 2025
  If the Lortone Power Tool barrel isn't turning, is turning slowly, or stops after you place it on the tumbler, here's what to check: * **Power:** Ensure the machine is properly plugged in and the electrical circuit is working. * **Installation:** Make sure the barrel is correctly aligned. * **Weight:** Avoid exceeding the rated capacity of the barrel. * **Belt:** Tighten the belt if it's slipping. If the drive belt is broken, remove the cover and replace it. * **Motor:** If the motor isn’t running or runs intermittently, it may need to be replaced.
L
Leslie HarrisAug 13, 2025
What to do if Lortone 3-1.5B Power Tool barrel leaks?
- R
  Ryan ColeAug 13, 2025
  If your Lortone Power Tool barrel leaks or the lid comes off during operation, consider the following: * **Inner Lid:** Ensure the inner lid and barrel shoulder are clean and properly seated inside the barrel. * **Knurled Nut:** Tighten the knurled nut by hand until it's snug; avoid over-tightening with tools. * **Gas Build-up:** Occasionally open the barrel to vent any gas that may accumulate during tumbling. * **Gasket:** Check for damage to the barrel or boot gasket and replace if necessary.

Lortone 3-1.5B Specifications

General

Type	Rock Tumbler
Barrel Material	Rubber
Weight	12 lbs
Number of Barrels	3
Barrel Capacity	1.5 lbs
Speed	Fixed

Summary

Setting Up Your Machine

Install The Barrel Guide

Instructions for attaching the barrel guide to the tumbler frame.

Getting Started

Open the Barrel

Procedure for opening the tumbler barrel and its inner lid.

Add Rocks and Abrasive

Guidelines for filling the barrel with rocks and abrasive material.

Close the Barrel

Steps for properly sealing the tumbler barrel after loading.

Tumble and Rinse

Instructions for operating the tumbler and cleaning after tumbling.

Repeat with Finer Abrasives

Using multiple grits of abrasives for progressive polishing.

Troubleshooting

Barrel Operation Issues

Troubleshooting common problems like slow or stopped barrel rotation.

Barrel Leaks and Lid Issues

Addressing leaks and barrel lid detachment during operation.

Maintenance

Motor Maintenance

Motor is designed for continuous use without maintenance.

Barrel Cleaning

Keep barrel clean with soapy water; avoid dishwashers/solvents.

Bearing Lubrication

Apply one drop of oil to shaft bearings monthly.

Drive Belt Adjustment

Adjust belt tension by repositioning the motor.

Drive Belt Replacement

Steps for replacing the drive belt, cautioning about pulley edges.

Parts List 33B, 3-1.5B
