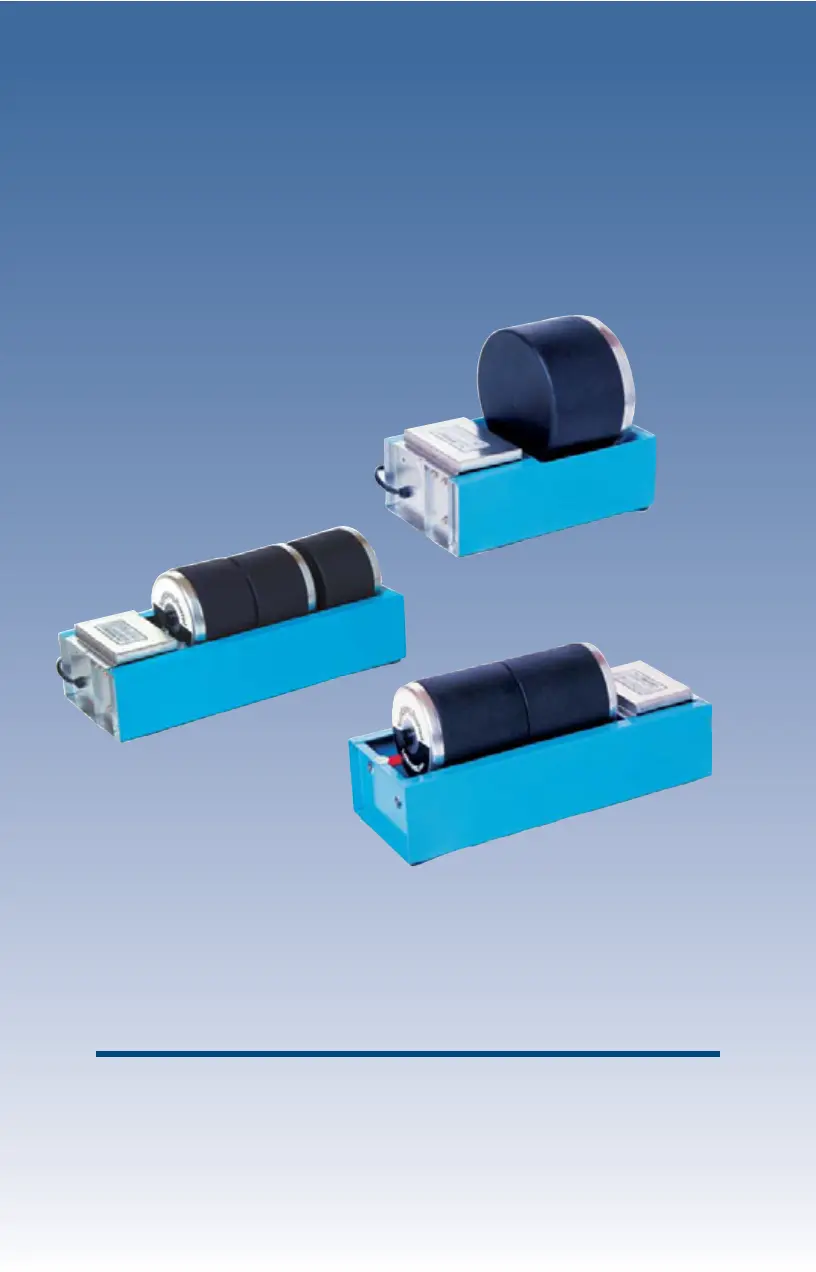

LORTONE
ROTARY TUMBLER
INSTRUCTIONS AND PARTS LIST
12130 Cyrus Way
Mukilteo, WA 98275
(425) 493-1600
Model
45C
Model
33B
Model
3-1.5B

Questions and Answers

  • T
    Travis BakerAug 9, 2025
    Why is my Lortone 45C Power Tool barrel not turning?
    • C
      cody97Aug 9, 2025
      If the Lortone Power Tool barrel isn't turning, is turning slowly, or stops after you place it on the tumbler, here's what to check: * **Power:** Ensure the machine is properly plugged in and the electrical circuit is working. * **Installation:** Make sure the barrel is correctly aligned. * **Weight:** Avoid exceeding the rated capacity of the barrel. * **Belt:** Tighten the belt if it's slipping. If the drive belt is broken, remove the cover and replace it. * **Motor:** If the motor isn’t running or runs intermittently, it may need to be replaced.
  • T
    thopkinsAug 19, 2025
    What to do if Lortone 45C Power Tool barrel leaks?
    • D
      Deanna DavisSep 12, 2025
      If your Lortone Power Tool barrel leaks or the lid comes off during operation, consider the following: * **Inner Lid:** Ensure the inner lid and barrel shoulder are clean and properly seated inside the barrel. * **Knurled Nut:** Tighten the knurled nut by hand until it's snug; avoid over-tightening with tools. * **Gas Build-up:** Occasionally open the barrel to vent any gas that may accumulate during tumbling. * **Gasket:** Check for damage to the barrel or boot gasket and replace if necessary.
  • J
    julia84Aug 28, 2025
    Why is my Lortone 45C Power Tool leaking?
    • R
      randallhughesAug 28, 2025
      If the barrel of your Lortone Power Tool is leaking or the barrel lid comes off during operation, it could be due to several reasons: * The inner lid might not be seated correctly; ensure the inner lid and barrel shoulder are clean and free of contaminants, and that the inner lid is seated on the shoulder inside the barrel. * The knurled nut might be over tightened; tighten it by hand only until snug, without using tools. * Gas might be building up in the barrel; open the barrel occasionally to vent any gas formed during tumbling. * The barrel or boot gasket might be damaged; replace the damaged barrel or boot gasket.

Summary

Setting Up Your Machine

Install The Barrel Guide

Instructions for installing the barrel guide on the 45C model tumbler.

Getting Started

Open the Barrel

Steps to open the tumbling barrel, including handling the inner and outer lids.

Add Rocks

Guidance on filling the barrel with rocks, aiming for optimal size assortment.

Add Abrasive

Instructions for adding abrasive grit and water to the barrel for effective tumbling.

Close the Barrel

Procedure for properly closing the barrel after adding contents, ensuring a tight seal.

Tumbling Operation

Tumbling and Rinsing

Instructions for tumbling duration, checking progress, and proper rinsing procedures.

Abrasive Stages and Progression

Guide to using successively finer abrasives for different stages of the tumbling process.

Troubleshooting

Tumbler Operation Issues

Solutions for when the barrel doesn't turn, turns slowly, or stops during operation.

Barrel Leakage and Lid Issues

Troubleshooting steps for barrel leaks and the lid coming off during operation.

Maintenance

Motor Maintenance

Information regarding the motor's design for continuous use and lack of maintenance needs.

Barrel Cleaning

Guidelines for cleaning the outside of the barrel, avoiding dishwashers or solvents.

Bearing Lubrication

Instructions for lubricating the shaft bearings every 30 days with lightweight oil.

Drive Belt Adjustment and Replacement

Procedures for adjusting drive belt tension and replacing the drive belt.

Parts Lists

Parts for 33 B & 3-1.5 B Models

Detailed list of components for the 33B and 3-1.5B rotary tumbler models.

Parts for 45 C Model

Detailed list of components for the 45C rotary tumbler model.
