SETTING UP YOUR MACHINE
For 45C Unit Only
(33B & 3-1.5B already assembled)
Install The Barrel Guide: Using the machine screw
provided, install the barrel guide on top of the frame edge
as shown in the picture.
I. Place the barrel on the tumbler and align. Align the
slot in the guide with the groove in the knurled nut on
the barrel. (fi gure 1.)
II. Adjust the position of the guide so the slot is centered
on the groove. Tighten the screw securely with the nut
provided. (fi gure 2.)
Install Barrel guide over the tumbler frame edge.
Place barrel on the tumbler and align before
tightening the screw. Once aligned, tighten screw
and nut securely.
1

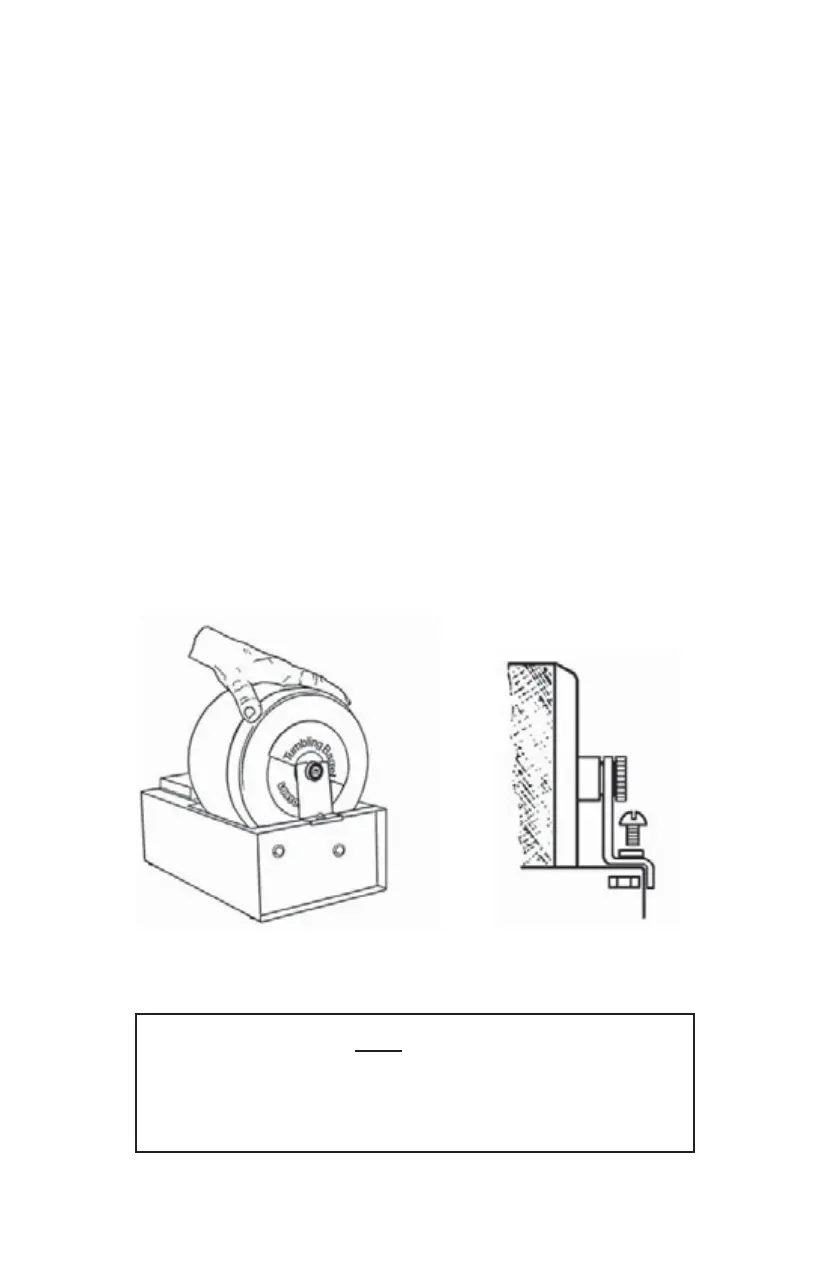

fi g. 1
fi g. 2
