- To adjust the high beam laterally, adjust the dome headed
screw at the upper inboard side of the lamp, accessed from
behind the lamp. Turn clockwise to adjust the beam to the
right.
- To adjust the vertical aim of the high beam, adjust the dome
headed screw at the lower outboard side of the lamp, ac
-
cessed from behind the lamp. Turn clockwise to raise the
beam.
7. Repeat for the RH lamp.
8. Re-fit the cover/mask assemblies complete with edge seal to
the body, and secure with the three socket head screws and
washers. Refit the wheelarch access panel.

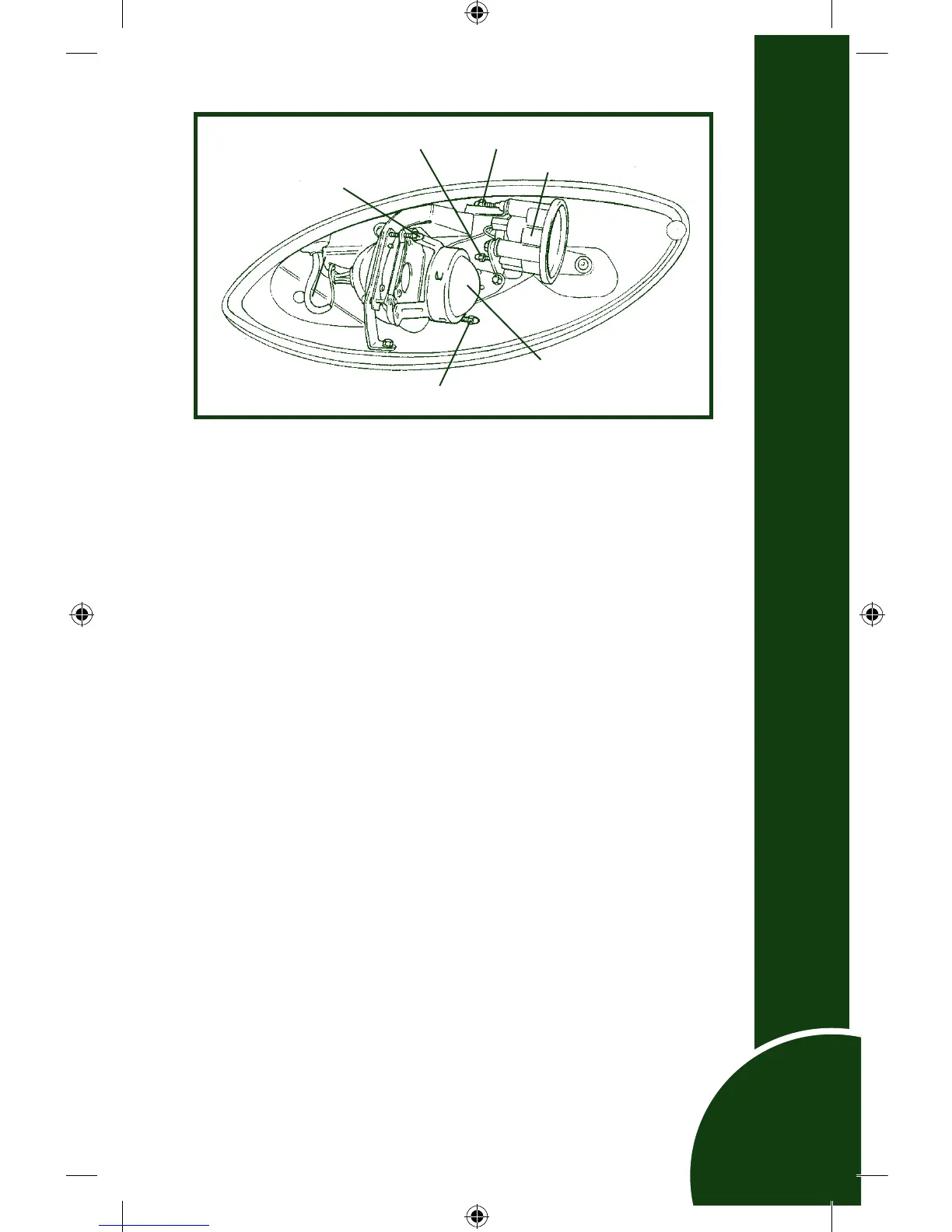

m257
Vertical adjuster
Lateral adjuster
Lateral adjuster
High beam lamp
Vertical adjuster
Low beam lamp
Electrical
141
