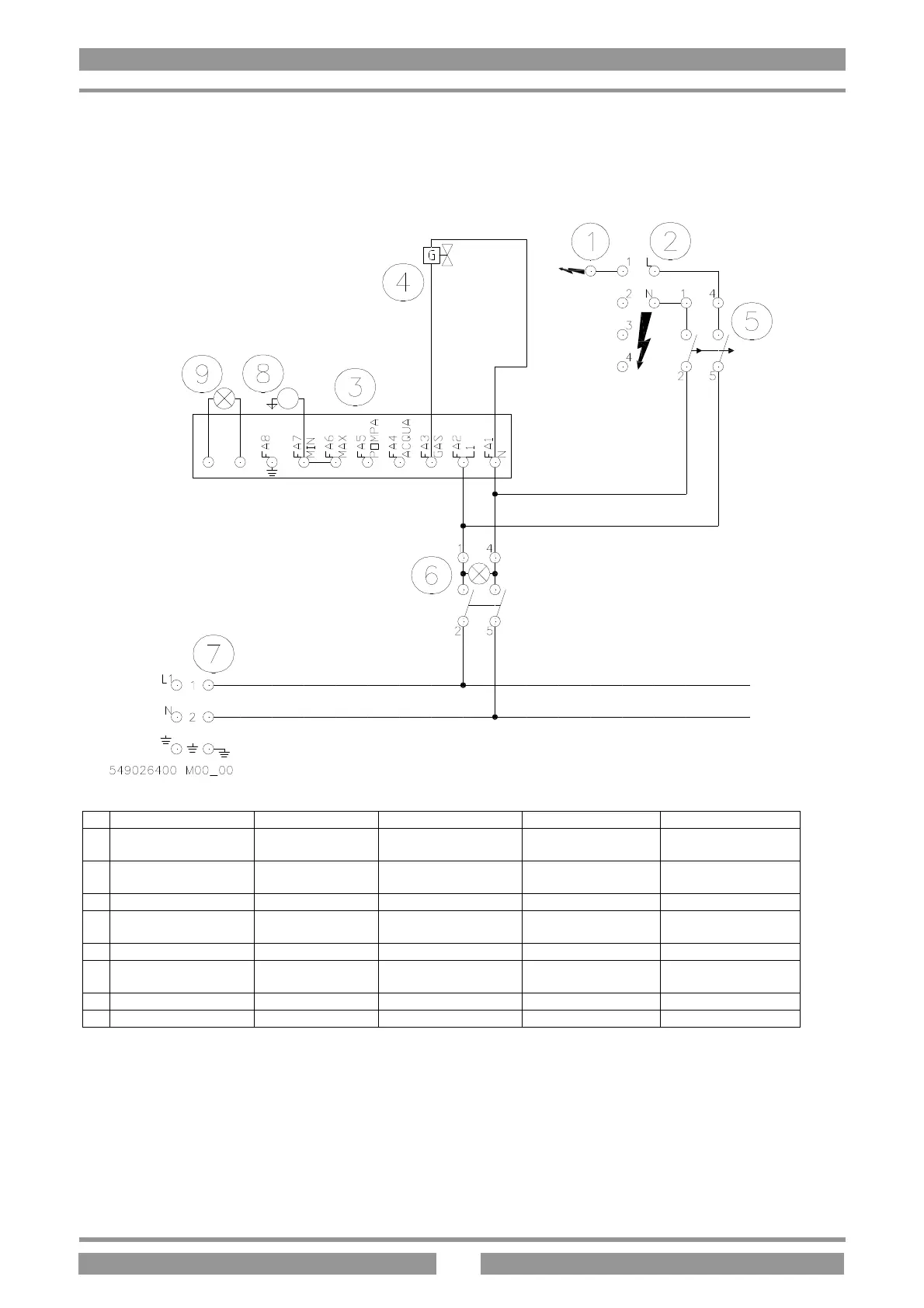

SCHEMA ELETTRICO – SCHALTPLAN – SCHEMA ELECTRIQUE
WIRING DIAGRAM – ESQUEMA ELECTRICO
CP...
549026400 M00_00
230V~ 50/60 Hz
1
Candela accensione Zündkerze Bougie d'allumage Lighting spark plug Candela encendido
2
Centralina accensione
bruciatori
Zentrale
Brennerzündung
Centrale allumage
brûleurs
Power-station starting
burner
Central encendido
quemador
3
Centralina sicurezza
acqua
Wassersicherheitsei
nheit
Unité de sécurité de
l'eau
Water safety unit
Central de seguridad
agua
4
Elettrovalvola gas Gas Magnetventil Electrovanne de gaz Gas solenoid valve Electroválvula gas
5
Pulsante accensione
bruciatori
Druckknopf
Brennerzündung
Poussoir allumage
brûleurs
Push-button starting
burner
Pulsador encendido
quemador
6
Interruttore bipolare Bipolar-Schalter Bipolar-Schalter Interrupteur bipolaire Interruptor bipolar
7
Morsettiera
alimentazione
Einspeiseklemme Bornier d'alimentation Power terminal block
Tablero de bornes de
alimentacion
8
Sonda di livello Pegelsonde Sonde de niveau Level Probe Sonda de nivel
9
Spia rossa Kontrolleuchte rot Lampe témoin rouge Red warning light Piloto rojo
