Loup Electronics Weighlog 100 User Guide And Installation Manual

Remote Enter Switch
Page 13

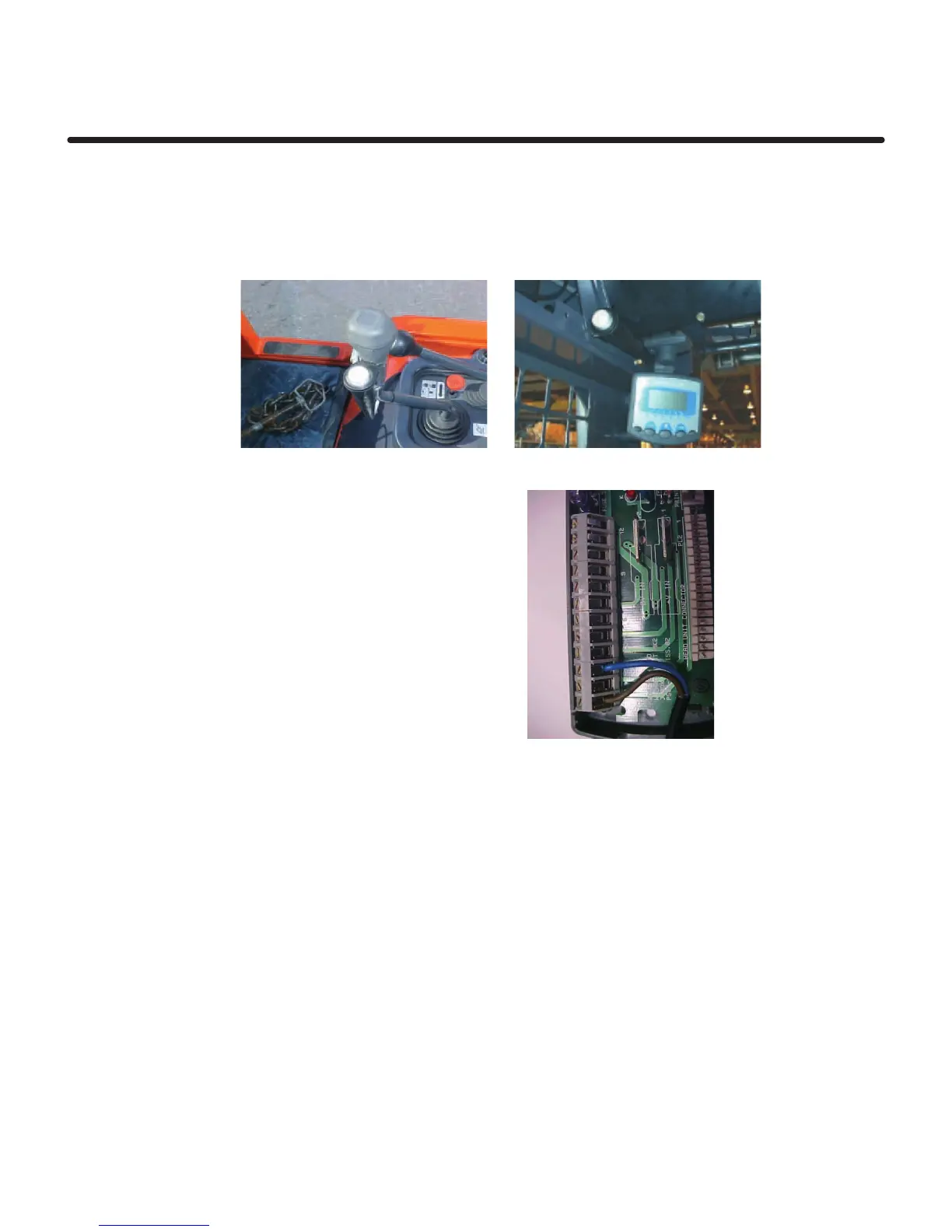

Remote Enter Switch
Mount the Remote Enter Switch either on
the lift lever using a hose clamp or wire
ties, or mount with screws provided
within easy access of the operator.
Connect the wires according to the label
on the Junction box lid.
Color Function Terminal #
Blue 0v 3
Brown Signal 1
Remote Enter
12
11
10
9
8
7
6
5
4
3
2
1
External Alarm
An External alarm is optional. Mount the
alarm buzzer where it will stay dry.
Connect the wires according to the label
on the Junction box lid.
Color Function Terminal #
Blue 0v 9
Brown Signal 11
