OVERVIEW
Page 5
The Weighlog system consists of a number
of standard kits, which are designed to fit a
wide range of loaders.
Mounting positions will vary according to the
type of machine, however this manual gives
general guidelines that apply to all machines.
The installation may require some modification
of the brackets provided for mounting the
reference/direction sensors. Normal
installation requires only basic handtools.

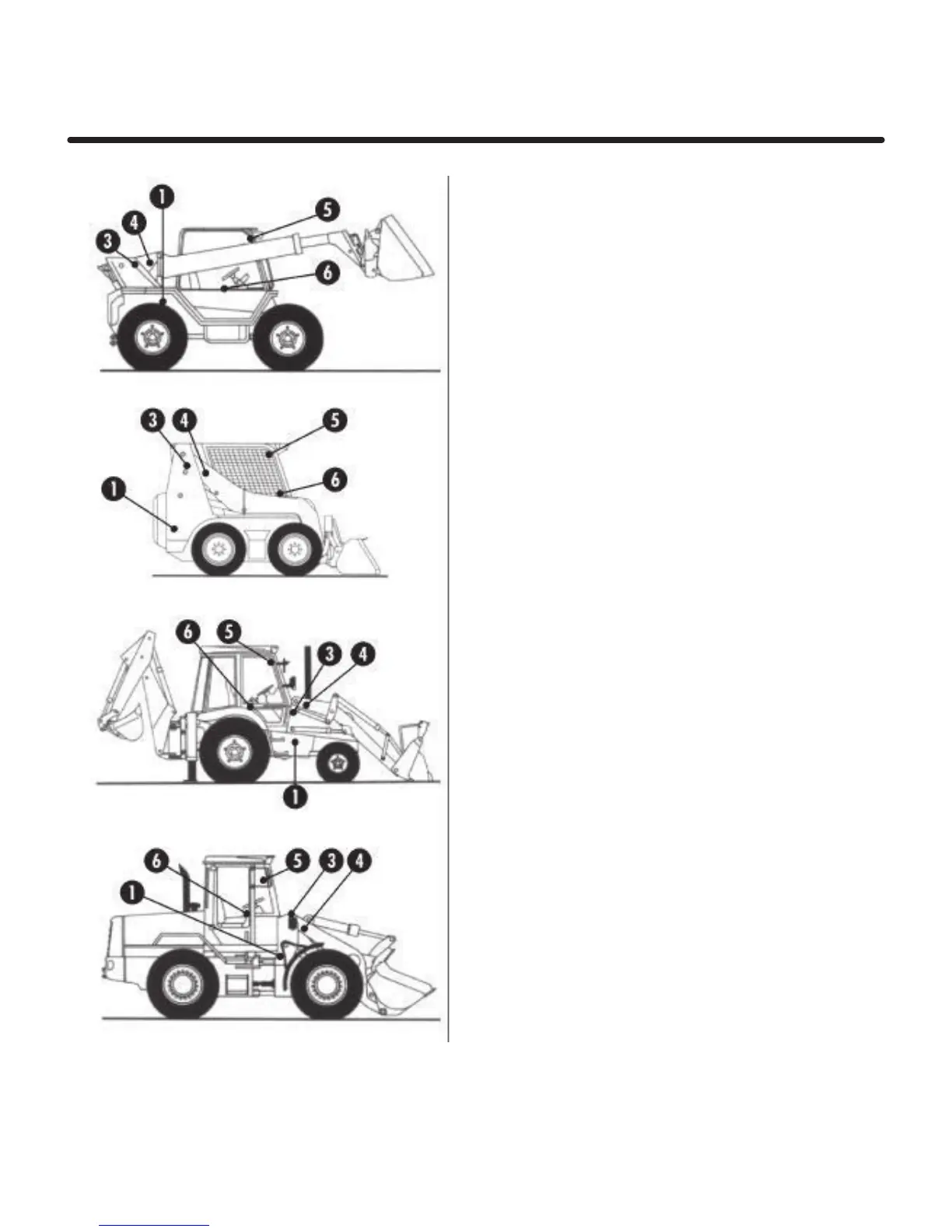

Typical Mounting Positions Shown
1. Pressure Sensor
2. Strain Sensor (Optional)
3. Reference/Direction Sensor
4. Magnet
5. Head Unit
6. Remote Enter Button
