4 Product description
4.1 Overview
A diagram of the individual parts can be found on the
fold-out page.
Key
1. Upper part of humidifier
2. Humidifier insert
3. Lower part of humidifier
4. Inlet opening
5. Outlet opening
6. Heater rod

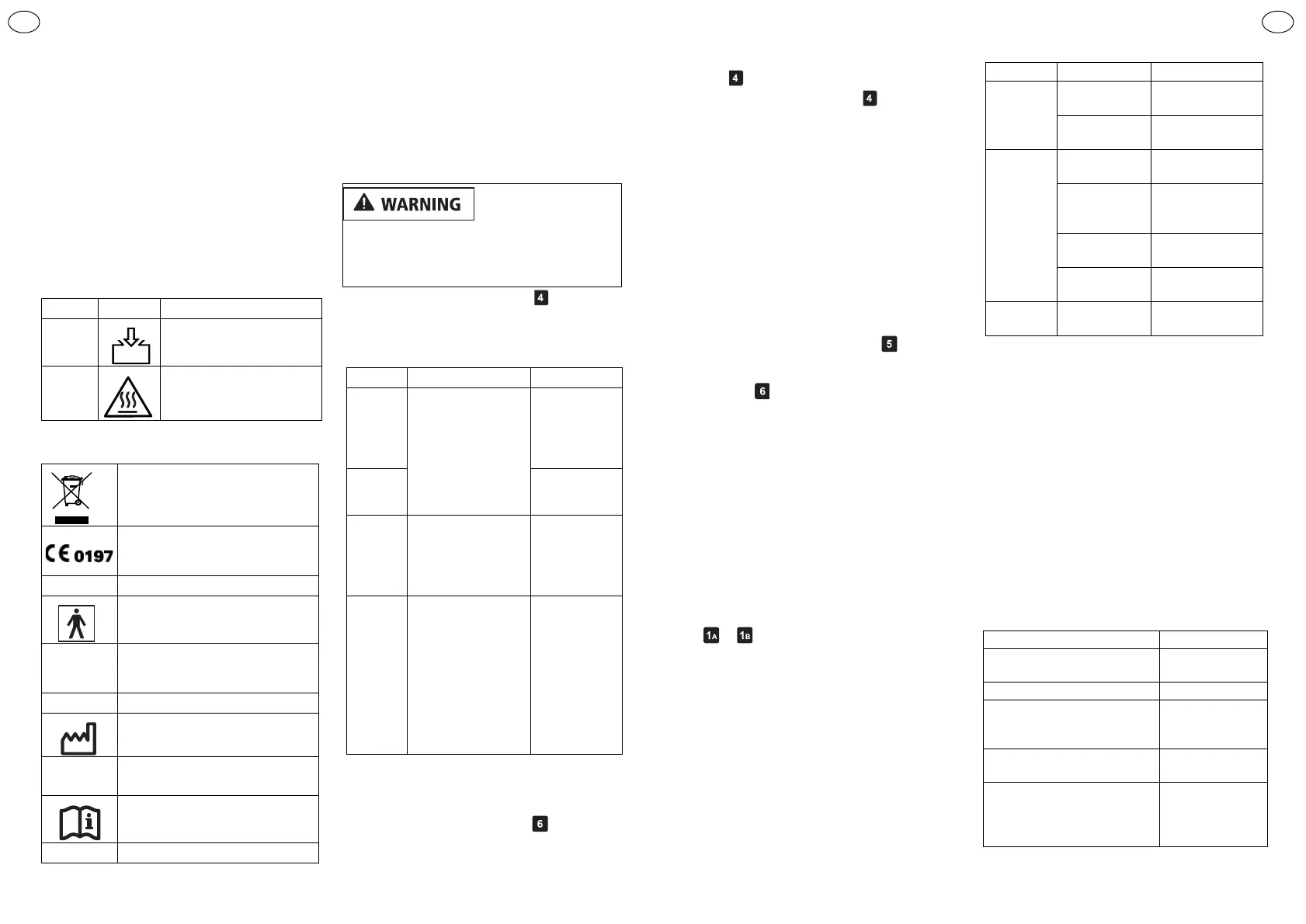

4.2 Marks and symbols
4.3 Symbols on the device ID plate
5 Hygiene treatment
Clean - or in the clinical sphere disinfect - the humid-
ifier weekly. If necessary, descale the humidifier (see
"5.1 Descaling the humidifier"). Replace housing
parts if they are in poor condition (cracked). If the
therapy device or the humidifier have been used with-
out a bacteria filter, the specialist dealer must per-
form a professional hygiene treatment on change of
patient.
1. Dismantling the humidifier (Fig. ).
2. Subject the humidifier to a hygiene treatment in
accordance with the table below. Sterilizing is not
permitted.
3. Rinse off parts with clean water and dry.
4. Perform a visual inspection.
5. If necessary: replace damaged parts.
6. Assembling the humidifier (Fig. ).
Position Symbol Description
4
Fill with water.
6
Humidifier is heating. Do not touch
heater rod.
Do not dispose of device in domestic waste.
CE symbol (confirms that the product con-
forms to the applicable European direc-
tives).
32 V DC
32 V direct voltage
Application part type BF
IP22
IP protection class Degree of protection
against solid foreign bodies. Device is pro-
tected against drips.
>PC<
Material designation: polycarbonate
Date of manufacture (month/year)
Type:
WM100TH
Type designation: Device of the
WM 100 TH type
Follow Instructions for Use.
SN
Serial number
Risk of injury from hot heater rod!
During and shortly after operation, the heater rod is
hot and touching it can lead to burns.
⇒ Allow the heater rod to cool down completely.
Part Cleaning Disinfecting
Lower part
of
humidifier
With hot water and deter-
gent.
Recommended: wash
weekly in the top basket
of a dishwasher (max.
65 °C).
If necessary: descale (see
5.1)
Disinfect by
immersion
(recommended:
gigasept FF
®
) /
boil for 5 minutes
Humidifier
insert
Boil for 5 minutes
Upper part
of
humidifier
Wipe down: use water or
mild detergent; do not use
microfiber cloth
Disinfect by wiping
(recommended:
terralin
®
protect /
perform advanced
Alcohol EP)
Heater rod
If necessary: descale (see
5.1)
Disinfect by im-
mersion
(recommended:
gigasept FF
®
)
Disinfect by
spraying
(recommended:
perform advanced)
or boil for
5 minutes
5.1 Descaling the humidifier
1. Remove the humidifier from the therapy device
(Fig. ).
2. Dismantle the humidifier (Fig. ).
3. Pour 300 ml pure household vinegar (5 %
solution without additives) into the lower part of
the humidifier.
4. Put the humidifier insert in bowl of pure
household vinegar (5 % solution without
additives). Humidifier insert must be completely
covered with vinegar.
5. Leave vinegar to take effect for 1 hour.
6. Rinse off the lower part of the humidifier, the
heater rod and the humidifier insert with clean
water.
7. Carefully dry the lower part of the humidifier, the
heater rod and the humidifier insert.
8. Assemble the humidifier (see Fig. ).
5.2 Replacing the heater rod seal
(Fig. )
1. If necessary: allow the heater rod to cool down
completely.
2. Unscrew the heater rod.
3. Replace the sealing ring.
4. Put the heater rod back in.
6Function check
Carry out a function check after every hygiene treat-
ment and repair, but at least every 6 months.
1. Check housing parts for cracks and damage. If
necessary: replace damaged parts.
2. Fill humidifier with water up to the mark (see Fig.
or )
3. Check whether the humidifier has any leaks. If
necessary: replace damaged parts.
4. Fill humidifier with 200 ml water.
5. Connect the humidifier to the therapy device and
switch on.
6. Set heating capacity to the highest stage.
7. Check whether the humidifier is heating up.
8. If the humidifier does not heat up slightly after
10 minutes: contact your specialist dealer.
7 Troubleshooting
8 Servicing
If used in accordance with purpose (see "2.1 Intend-
ed use") the humidifier requires no servicing.
9 Scope of supply
prismaAQUA, black - WM 29680
prismaAQUA, white - WM 29490
9.1 Accessories and replacement
parts
You can order accessories and replacement parts sep-
arately if necessary. You can order a current list on
the Internet or via your specialist dealer.
10 Technical data
Fault Cause Remedy
Humidifier
does not
warm up.
Humidifier stage
switched off.
Set humidifier stage.
Humidifier is faulty.
Have humidifier
repaired.
Humidifier is
leaking.
Heater rod seal is
faulty.
Replace seal (see 5.2).
Humidifier insert is
not inserted
correctly.
Insert humidifier insert
correctly.
Humidifier insert is
faulty.
Replace humidifier
insert.
Cracks in lower part
of humidifier.
Replace lower part of
humidifier.
Humidifier
switches off.
Humidifier is empty.
Fill humidifier with
water.
Product class to 93/42/EEC IIa
Dimensions
W x H x D in cm
14 x 13.5 x 18
Weight (without water) 0.6 kg
Temperature range
operation
storage
+5 °C to +37 °C
-25 °C to +70 °C
Permitted humidity for operation and
storage
15 % to 93 %, no
condensation
Air pressure range
600 hPa - 1100 hPa,
corresponds to an alti-
tude of 4000 m above
MSL
EN EN
