Lowrance HOOK2-5 - Page 2

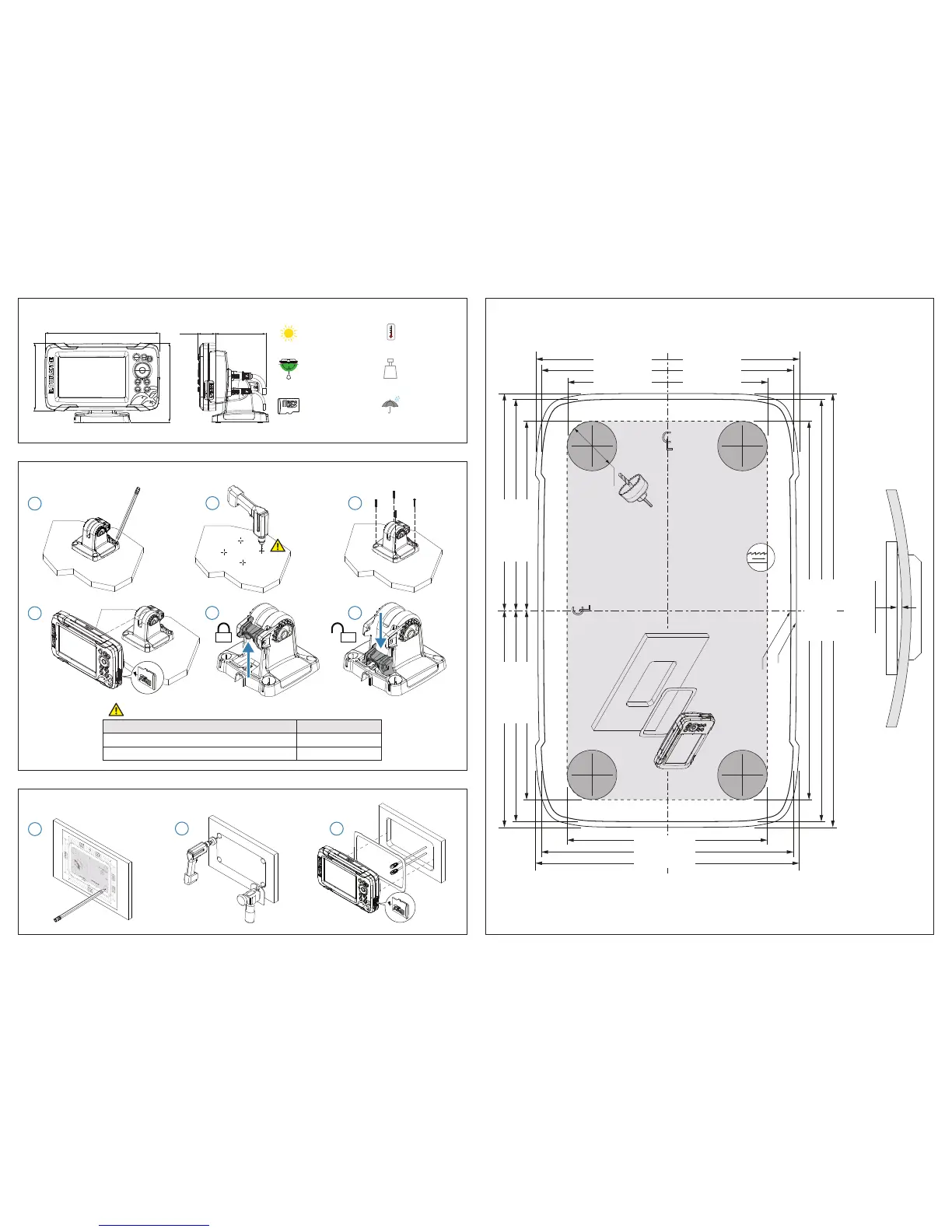

Mounting template (1/2)Details
1x card reader slot*
Micro SD
IPX6
IPX7
-15°C to +55°C
+5°F to +131°F
70°/50°, top/bottom
70°/70°, left/right
0.46 Kg
1.00 lbs
Sunlight readable
Kg
83.4 mm
(3.28“)
28.9 mm
(1.14“)
185.7 mm
(7.31“)
128.7 mm
(4.07“)
111.2 mm
(4.38“)
Bracket mounting
Panel mounting
1
3
2
2
1
3
TM
Ø22.0 mm (0.87”)
REMOVE SHADED AREA
L
C
L
C
SUN COVER
PRODUCT OUTLINE
191.4 mm (7.53”) 167.0 mm (6.57”) 185.7 mm (7.31”)
83.5 mm (3.30”) 95.7 mm (3.78”)
92.9 mm (3.66”)
83.5 mm (3.30”) 95.7 mm (3.78”) 92.9 mm (3.66”)
88.4 mm (3.48”)
116.3 mm (4.58”)
111.2 mm (4.38”)
58.2 mm (2.29”)
44.2 mm (1.74”)
55.6 mm (2.19”)
58.2 mm (2.29”)
44.2 mm (1.74”)
55.6 mm (2.19”)
Material 10# screw
Soft materials e.g. Plywood Ø 3.7-4.0 mm (5/32”)
Hard materials e.g. Fiberglass, Acrylic, Hardwoods Ø 4.1-4.7 mm (3/16”)
Recommended pilot holes.
A
B
4
Note: Adhesive panel mounting gasket is sold separately.
Part no.: 000-14187-001.
Maximum curve of the dash
0.5 mm (0.02”)
* Depending on model
