LPG Cellu M6 - Treatment Heads; Main Head T70 Description; Keymodule Description

The Keymodule is the bottom interchange-
able section of the T70 main head. It com-
prises the motorised rollers
and sealing valves.
You have three Keymodule, the character-
istics of which differ from the motorized
rollers in several points:
• Diameter and texture of the rollers.
• Rigidity of return springs on motorised
rollers.
• Roller lenght.
Keymodule i1:
It is characterised by the following points:
• Roller diameter: 26 mm.
• Hard springs.
Keymodule i2:
It is characterised by the following points:
• Roller diameter: 28 mm.
• Soft springs.
Movement and direction of rotation are visu-
ally displayed by LEDs for these Keymodule.
!
Before running your unit for the first time, ensure that a Keymodule is properly connected to the T70.

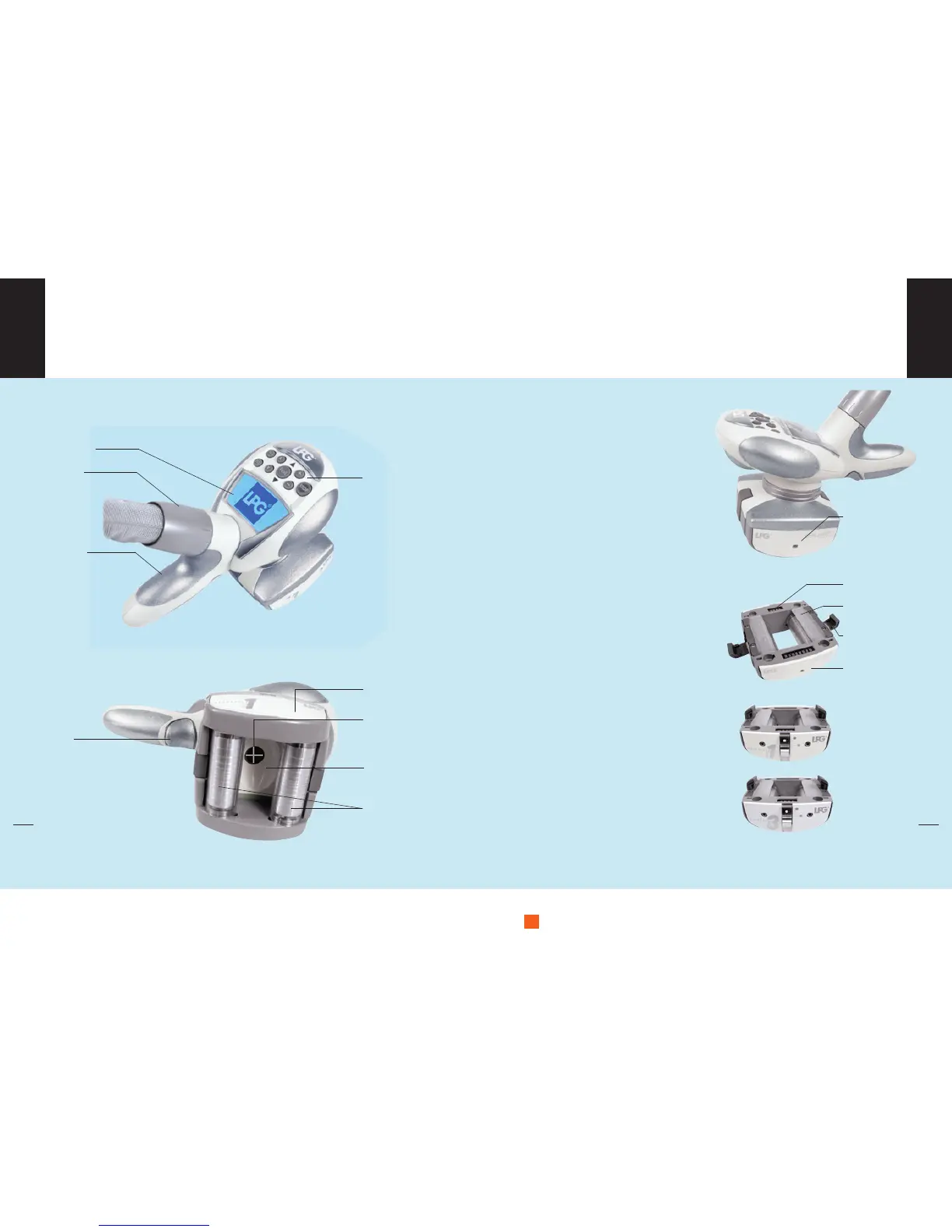

Keymodule
®
Main head T70
monitor screen
rapid twist
connection
main handle
control panel with
adjustment keys
trigger
keymodule
safety grid to prevent
the ingress of foreign
debris
treatment chamber
motorized rollers
electrical contacts
sealing
valve
latch
keymodule
disconnected
keymodule
connected
7. A
des criptio n of main hea d
t
70
7. B
description of keymodule
