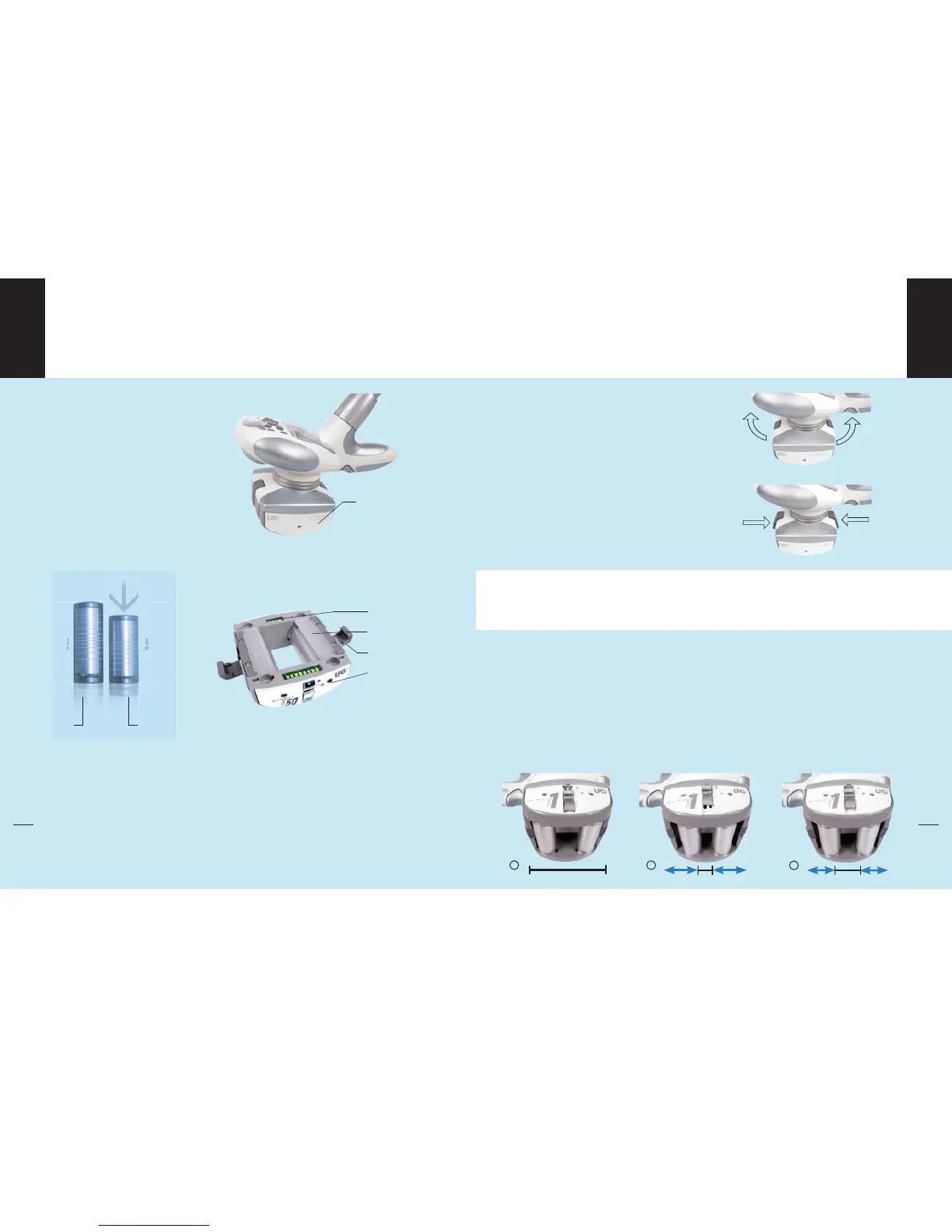

InstallationKeymodule
®
Every Keymodule is designed to be
compatible with the main head T70.
Attach the Keymodule to the main head
as shown in the photos opposite.
To remove the Keymodule release the lat-
ches.
Keymodule i 50:
is adaptable to the main head of the
Cellu M6 Keymodule [2]i T70. It consists
of two motorised rollers and airtight val-
ves.
It is characterized by the following points:
•
Roller diameter: 26 mm.
•
Roller length: 50 mm.
•
Soft springs.
•
The depth of treatment can be selec-
ted by setting the rollers a distance of
between 28 and 10 mm apart.
28 29
Setting the cursor
of keymodule i 1, i2 and i 50
The Keymodule i1, i2 and i 50 have a cur-
sor, which can be adjusted to 5 positions,
thereby making it possible to adjust the
spacing between the motorized rollers.
When the cursor is in the bottom position
(figure 1) the distance between centres
of the rollers is maximum and fixed, there
is no roller mobility.
When the cursor is in the top position
(figure 2) the distance between centres of
the rollers is variable, from a maximum
position to a minimum position, which
ensures maximum mobility of the rollers.
When the cursor is in one of the 3 inter-
mediate positions (figure 3) the distance
between centres of the rollers,
as well as their mobility, are variable.
1
2
3
