It is important to replace the filter cartridges one after the other, so that the correct cartridge is replaced in its housing.
The Cellu M6 must be switched off before proceeding with a filter cartridge change. The unit must also be cold, so as to
avoid any risk of burning.
Replacing
the filters of the vacuum generator
The vacuum generator has two filter car-
tridges:
• one paper cartridge at the inlet, on the
left side,
• one metal cartridge on the discharge
side, on the right side.
These two cartridges must be replaced after
every 1.000 hours of operation.
No special tool is required for this operation.

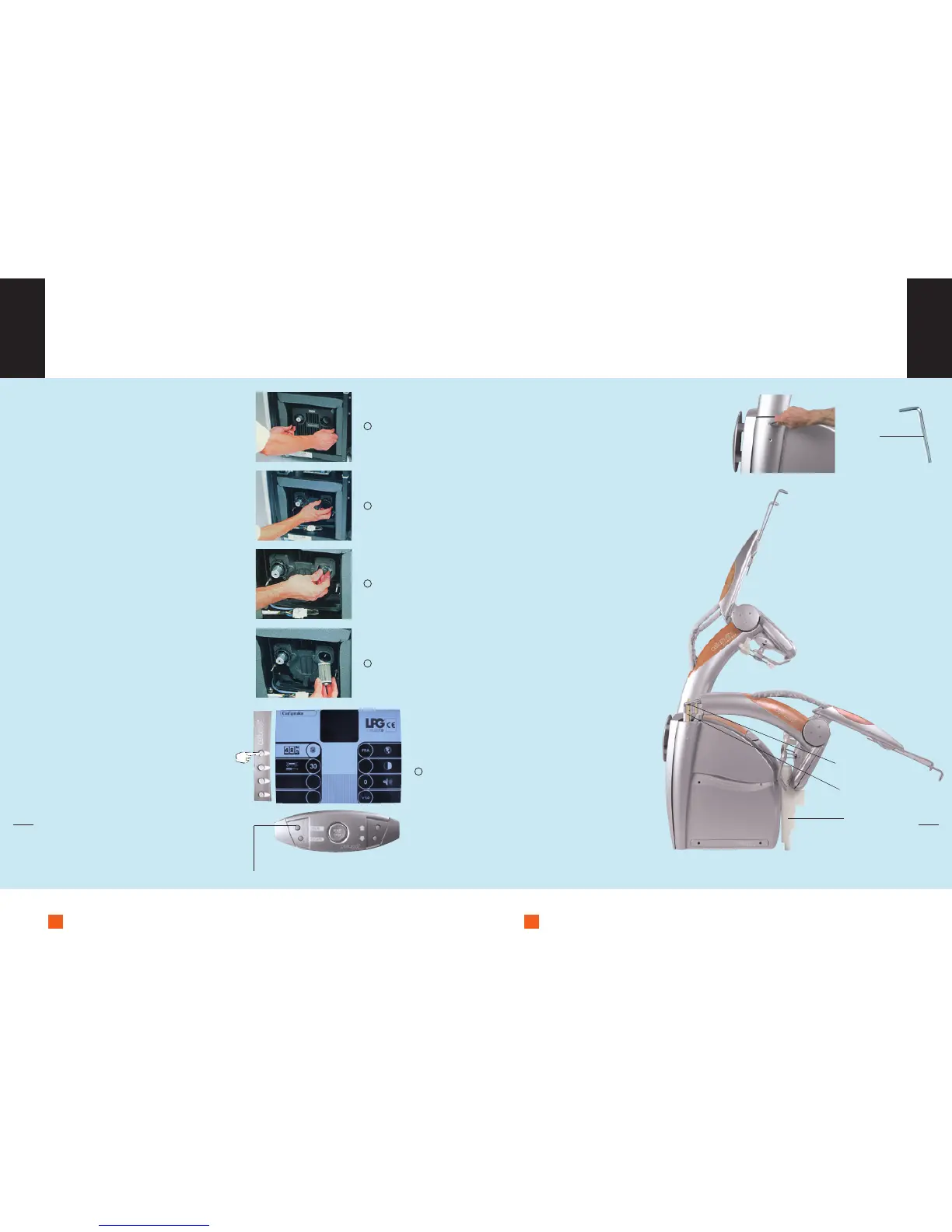

1. Open the rear door to gain access to the
technical elements.
2. Loosen the two knurled nuts of the va-
cuum generator hood.
3. Unscrew the cover.
4. Unscrew the central knurled nut.
5. Remove the cartridge from the spring.
6. Replace with a new cartridge.
7. Repeat the same operation for the
second cartridge.
8. Once the new filters are in place, validate
the operation by selecting the icon repre-
senting the filters you have just changed,
by pressing the appropriate key and hold
the VALID.
To confirm replacement, the icon depicting
the filters disappears.
Where the unit is only being moved a short
distance or when stored for a short while
in the folded position, it is essential to insert
the two shims provided for this purpose.
If you require any information on the packag-
ing, shims and procedure to be adopted,
please contact LPG Systems Customer
Services.
1. Fix the treatment heads to their relevant
support using large rubber bands.
2. Loosen the 4 screws using the large
hey key.
3. Pull the top section of the unit upwards.
4. Bend while holding the unit.
5. Insert the various shims in order
to protect the hoods.
Transport/Storage
!
LPG Systems will not be liable for damage caused by transport or storage in the folded position, if the shims provided
for this purpose, are not in place.
HEX KEY, 5
