Chapter 6. CPU Function
6-12
6.8 Allocation of Input/Output Number
Allocation of I/O number is to allocate an address to every I/O of each module to read data from input module and
output data to output module when it executes operations.
XGB series adopts each I/O 64 points occupation to every module.
(1) Allocation of I/O number
64 points are allocated to every module (incl. special, communication).

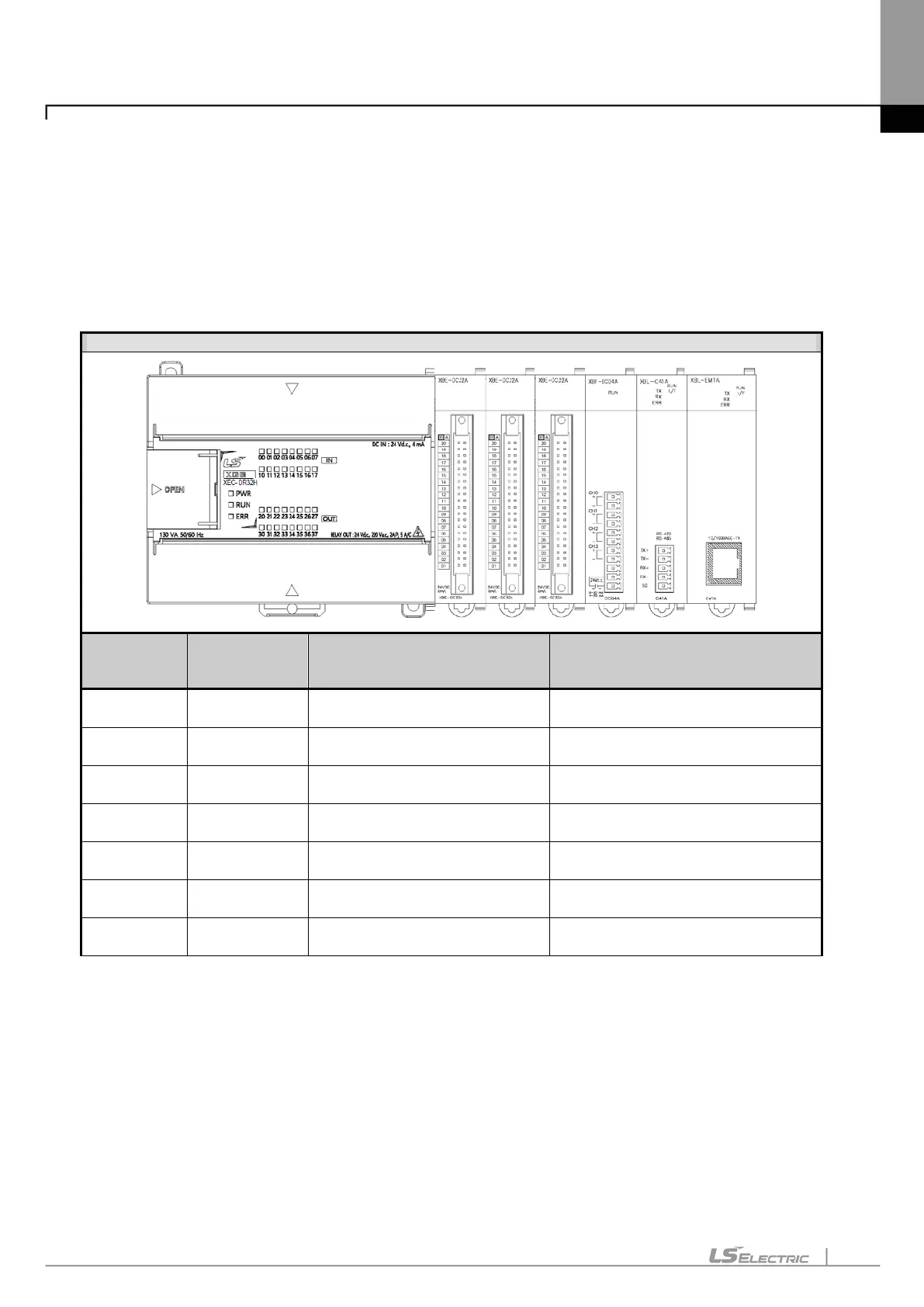

System Configuration
Number of
Connection
stage
Type I/O allocation Remarks
0 XEC-DN32H
Input : %IX0.0.0 ~ %IX0.0.63
Output: %QX0.0.0 ~ %QX0.0.63
Real input : %IX0.0.0 ~ %IX0.0.15
Real output: %QX0.0.0 ~ %QX0.0.15
1 XBE-DC32A
Input : %IX0.1.0 ~ %IX0.1.63
Output: %QX0.1.0 ~ %QX0.1.63
Real input : %IX0.1.0 ~ %IX0.1.31
2 XBE-DC32A
Input : %IX0.2.0 ~ %IX0.2.63
Output: %QX0.2.0 ~ %QX0.2.63
Real input : %IX0.2.0 ~ %IX0.2.31
3 XBE-DC32A
Input : %IX0.3.0 ~ %IX0.3.63
Output: %QX0.3.0 ~ %QX0.3.63
Real input : %IX0.3.0 ~ %IX0.3.31
4 XBF-DC04A
Input : %IX0.4.0 ~ %IX0.4.63
Output: %QX0.4.0 ~ %QX0.4.63
-
5 XBL-C41A
Input : %IX0.5.0 ~ %IX0.5.63
Output: %QX0.5.0 ~ %QX0.5.63
-
6 XBL-EMTA
Input : %IX0.6.0 ~ %IX0.6.63
Output: %QX0.6.0 ~ %QX0.6.63
-
Empty I/O point is available for internal relay.
