3 -15

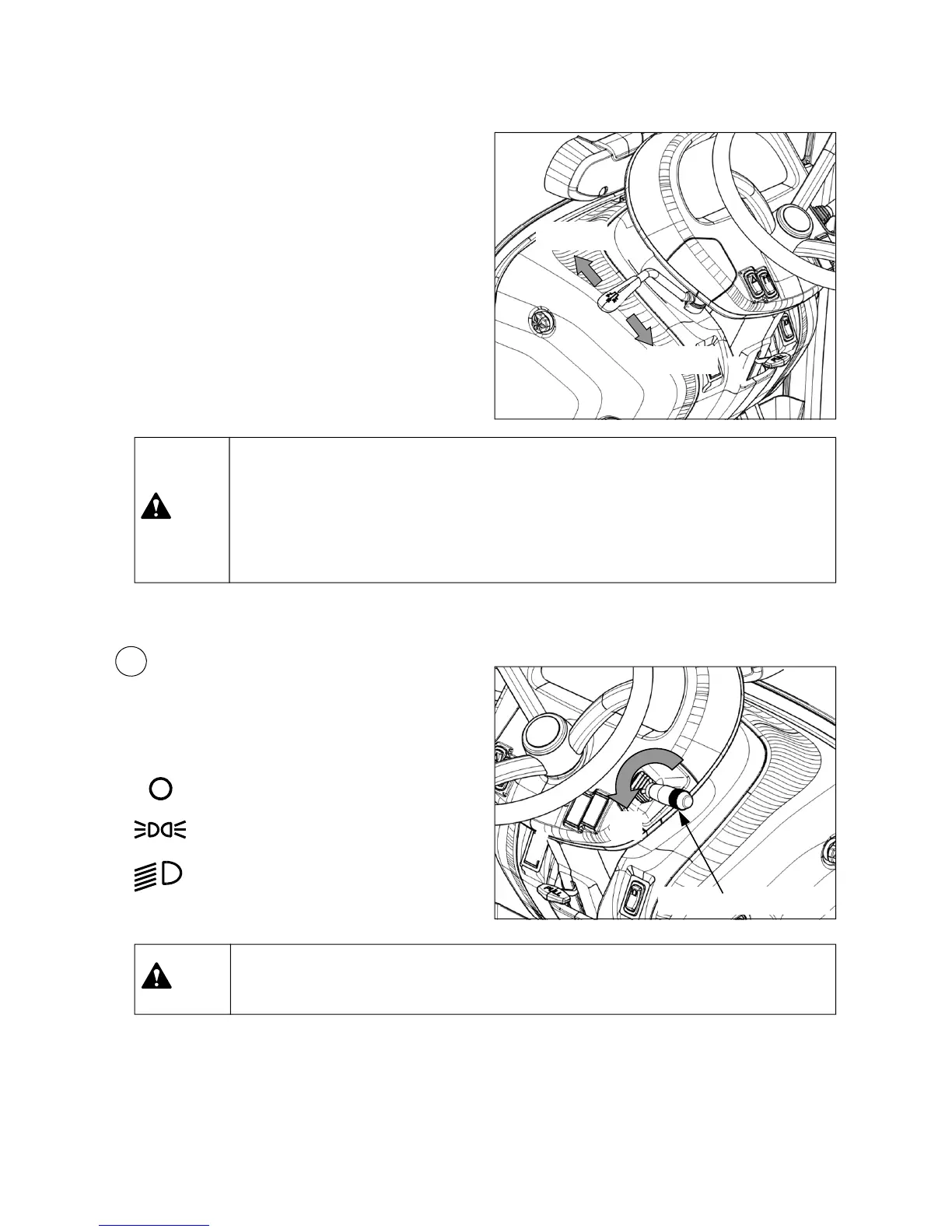

(6) Shuttle lever (Mechanical)
z It is used to select Forward / Reverse.
z Push/pull the lever forward/reverse with
depressing clutch pedal fully.
z Before reversing the tractor, lower engine speed
and check behind you.
z If shifting F/R shuttle lever forward or reverse
when the parking brake is engaged, the parking
brake indicator shall blink with alarming buzzer.
Before shifting the shuttle lever, HAVE TO
RELEASE the parking lever.
(7) Combination light switch
1
Turning ON/OFF the lights
- Instrument panel and all lights OFF
- Instrument panel and side lights ON
- Instrument panel, side lights and
headlights (Low beam) ON
▶ When passing with other vehicles in the opposite lane at night, turn the headlights
to low beam not to disturb oncoming cars.
Caution
z To turn on/off the lights described as below, turn
the switch to the position where the related
symbol is marked.
Combination light switch
Forward
Reverse
ON
▶ The synchro-shuttle shift lever allows any forward range or reverse to be shifted
while the tractor is moving slowly. However, the clutch must be disengaged and the
engaged by means of clutch pedal. Make sure to depress clutch pedal fully and
release it gradually to take up load smoothly, but sudden gear shifting may cause
transmission damage. It is recommended to stop the tractor before operating the
shuttle lever.
Caution
