3 -25

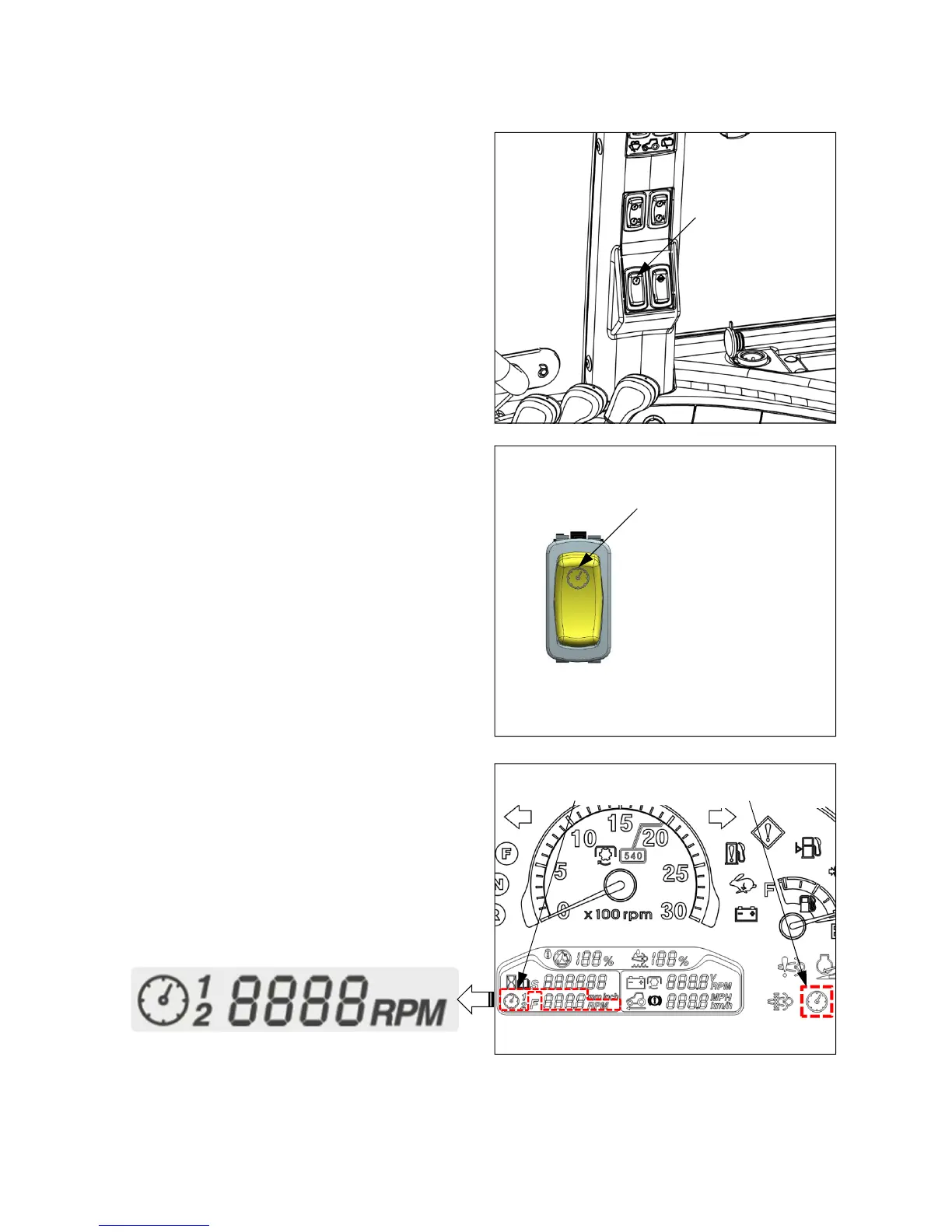

ESC main switch
ESC main switch
Engine ESC speed
• Position 2 : Resume
• Position 1 : Ready
• Position 0 : Off
① ESC main switch
z This switch is used to enable Engine Speed
Cruise control(ESC) function.
z If pressing the ESC main switch from position 0
to position 1 (Off –> Ready),
- ESC indicator on instrument panel shall be
blinked.
- Engine speed stored on ECU shall be
displayed on LCD panel.
z If pressing the ESC main switch from position 1
to position 2 (Ready –> Resume),
① (if pressing below 2 second) – ESC
indicator shall be ON and engine speed cruise
control(ESC) shall begin.
② (if pressing over 2 second) – current engine
speed shall be stored on ECU and the stored
engine speed shall be blinked 3 times on LCD
panel.
z To exit the ESC control,
-. Press the lower side (“Off ”) of the ESC main
switch or press down the brake pedals.
(13) Engine Speed Cruise control(ESC) switch
ESC main switch
