3. Position
: PTO
Cover
5. Position
: Fender
2. Position
: Starting
m
otor
6. Position
: Fender
4. Position
: Cooling
f
an
1. Position
: Fuel
Cap
9. Position
: Fender
8. Position
: Air cleaner
11. Positio
n :
frame
10. Positio
n :
frame
7. Position
: Radiator
1
1
1
1
-
1
7
12. Positio
n :
Muffler
21
23
Table of Contents
Table of Contents
2
General Notices for Safety
6
Before Using the Tractor
6
Safety Mark Description
6
Product Identification
7
Terminology
7
Notices before Using
8
Safety Precautions (Read this for Safety before Using)
8
Protect Children
9
Periodical Check
9
Genuine Parts
9
Restrict Maintenance
9
Notices When Starting Engine
10
Safety Structure
10
Notices While Operating/Using the Tractor
11
Notices When Connecting Implement
13
Notices When Towing the Tractor
13
Notices When Transporting the Tractor
14
Notices When Checking Tractor after Work
15
Notices When Handling Diesel Fuel
16
Operator Protective Structure (OPS)
16
Long-Term Storage
17
Preparation for Storage
17
Check & Maintenance During Storage
18
Preparation for Reuse
18
Notices for Use & Disposal Related to Environment Preservation
19
Symbols
20
Handling and Maintenance of Safety Decals
21

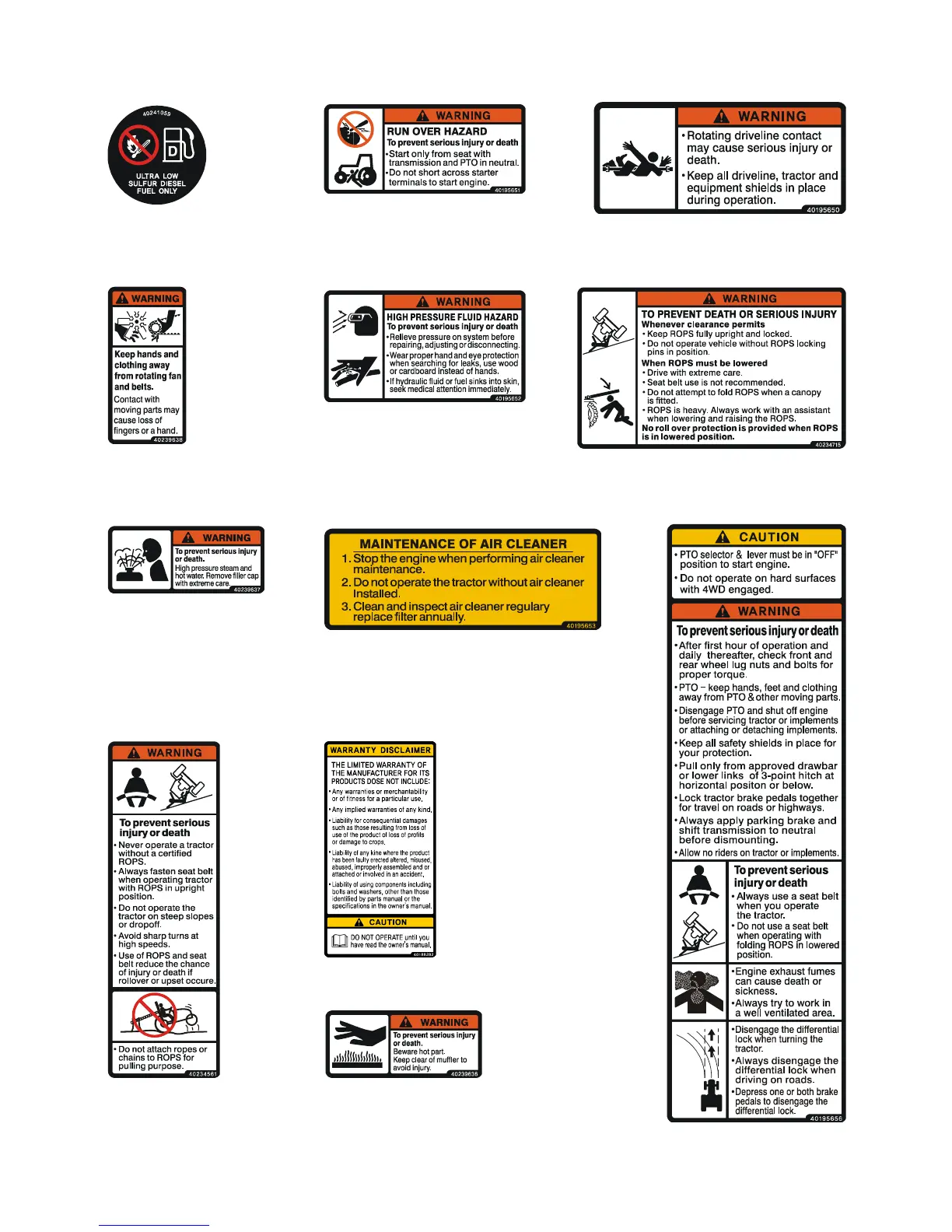

Safety Decals and Attaching Position
21
The Name of each Part
23
Roll-Bar Type View
23
Instruments and Controls
24
Instrument Panel and Switches View
24
Key Switch
24
Cold Start Aid Indicator
24
Tachometer and Hour Meter
25
Engine Coolant Temperature Gauge
25
Fuel Level Gauge
25
Turn Signal Light Switch
26
Engine Oil Pressure Indicator
26
Battery Charging Indicator
26
Fuel Filter Warning Indicator (if Fitted)
26
Light Switch
27
Horn Switch (if Fitted)
27
Hazard Warning Light Switch
28
Work Light Switch (if Fitted)
28
PTO Operation Indicator
29
PTO Switch (Independent PTO)
29
PTO Mode Switch
29
Parking Brake Indicator
30
One Side Brake Indicator (if Fitted)
30
Operating Levers and Pedals
31
Shuttle Lever (Mechanical Type)
32
Throttle Lever
32
Throttle Pedal (Mechanical Type)
32
Clutch Pedal (Mechanical Type)
33
Brake Pedal
33
Parking Brake Lever
34
Main Gear Shift Lever (Mechanical Type)
34
Range Gear Shift Lever
35
4WD Lever
35
Differential Lock Pedal
36
HST Forward / Reverse Pedal (HST Type)
36
HST Neutral Switch (HST Type)
37
Cruise Control Lever (HST Type)
37
Driver's Seat (HST Type)
38
Seat Adjustment
38
Hydraulic System
39
Steering System
39
Hydraulic Lift Control
39
Position Control
40
Down Speed Control Knob
40
Remote Control Lever and Quick Coupler (if Fitted)
41
Hydraulic System Diagram - Mechanical Type
42
Hydraulic System Diagram - HST Type
43
Safety Device
44
Seat Belt
44
Safety Frame (Roll-Bar Type)
44
Foldable Safety Frame (Roll-Bar Type) (if Fitted)
45
Operation and Work
46
Engine Start - Mechanical Type
46
Engine Start - HST Type
47
Start in Cold Weather
48
Engine Stop
48
How to Drive and How to Stop
49
How to Drive - Mechanical Type
49
How to Drive - HST Type
50
Changing Speed
51
Emergency Stop
52
Stopping Tractor
53
Driving Tractor on the Road
54
Parking
55
How to Handle New Tractor
56
Check Points
56
Notices in Handling New Tractor
56
After Using First 50 Hours
56
Attaching Implement
57
3-Point Linkage
57
Upper Link Installation and Adjustment
58
Adjustment of the Lift Rod's Length (Left / Right)
58
Adjustment of Stabilizer’s Length
58
Reference of Implement Installation Part
59
Reference of PTO Shaft
60
PTO Safety Cover and Protection Cap
60
Hitch and Drawbar (Optional)
61
7-Pole Connector (Optional)
62
Technically Maximum Permissible Mass
63
Adjusting Wheel Tracks and Tire Replacement (Rear Wheel)
64
Tires and Load Capacity
65
Adjusting Steering Angle
66
Driving Speed - Mechanical Type
67
Driving Speed - HST Type
68
Lubrication and Maintenance
69
Checking of each Part
69
Maintenance Table - Mechanical Type
71
Maintenance Table - HST Type
72
Lubricants and Capacity
73
Recommended Oil Viscosities
73
Access for Maintenance
74
First 50 Hour Check
74
When the Warning Indicator Ligths
75
Drain Water from Fuel Filter
75
Checking before Starting (Daily Check)
76
Engine Oil
76
Checking Oil Level
76
Fuel Tank
77
Using Diesel for Winter
77
Checking Fuel Level
77
Instrument Panel & Indicators
77
Turn Signal Lights, Lights, Horn
78
Engine Coolant
78
Air Cleaner (Dry Type)
79
Cleaning Filter Element
79
Assembling Filter Element
79
Cleaning of Radiator and Radiator Screen
80
Tire Air Pressure and Damage
80
Tightening State of Bolts and Nuts of each Part
81
Adjustment of Clutch Pedal Play
81
Adjusting HST Control Linkage (HST Type)
82
Adjustment of Brake Pedal Play
83
Checking the Brake Distance
83
Every 50 Hour Check
84
Lubricating Grease Nipple
84
Checking Transmission Oil
85
Checking Front Axle Oil
85
Battery Check
85
Air Cleaner (Dry Type)
85
Cleaning of Radiator and Radiator Screen
85
Every 300 Hour Check
86
Replacing Engine Oil and Filter
86
Replacing Hydraulic Oil Filter
87
Replacing Fuel Filter Cartridge
88
Replacing Air Cleaner Element (Dry Type)
88
Tension Adjustment of Fan Belt
89
Toe-In
89
Every 600 Hour Check
90
Changing Front Axle Oil
90
Changing Transmission Oil
90
Replacement of Engine Coolant
91
Adjusting Engine Valve Clearance
92
Checking Nozzle Injection Pressure
92
General Maintenance (When Required)
93
Air-Bleeding from Fuel System
93
Air-Bleeding from Fuel Filter
93
Air-Bleeding from Fuel Injection Pump
94
Fuse & Main Fuse
95
Fuse Check and Replacement
95
Capacity and Function of each Fuse
95
Main Fuse (SLOW BLOW FUSE) Check and Replacement
96
Battery Handling and Notices
97
Battery Check
97
Notices in Attaching/Detaching the Battery
98
Notices in Charging the Battery Using Separate Charger
99
How to Use Jumper Cables
100
Connecting Jumper Cables
100
Removing Jumper Cables
100
Troubleshooting
101
Dimensions and Specifications
107
Lubricants and Capacity Table
112
Recommended Oil Viscosities Chart
112
5
Based on 1 rating
Ask a question
