3. Instruments and Controls
3-1. Instrument panel and Switches

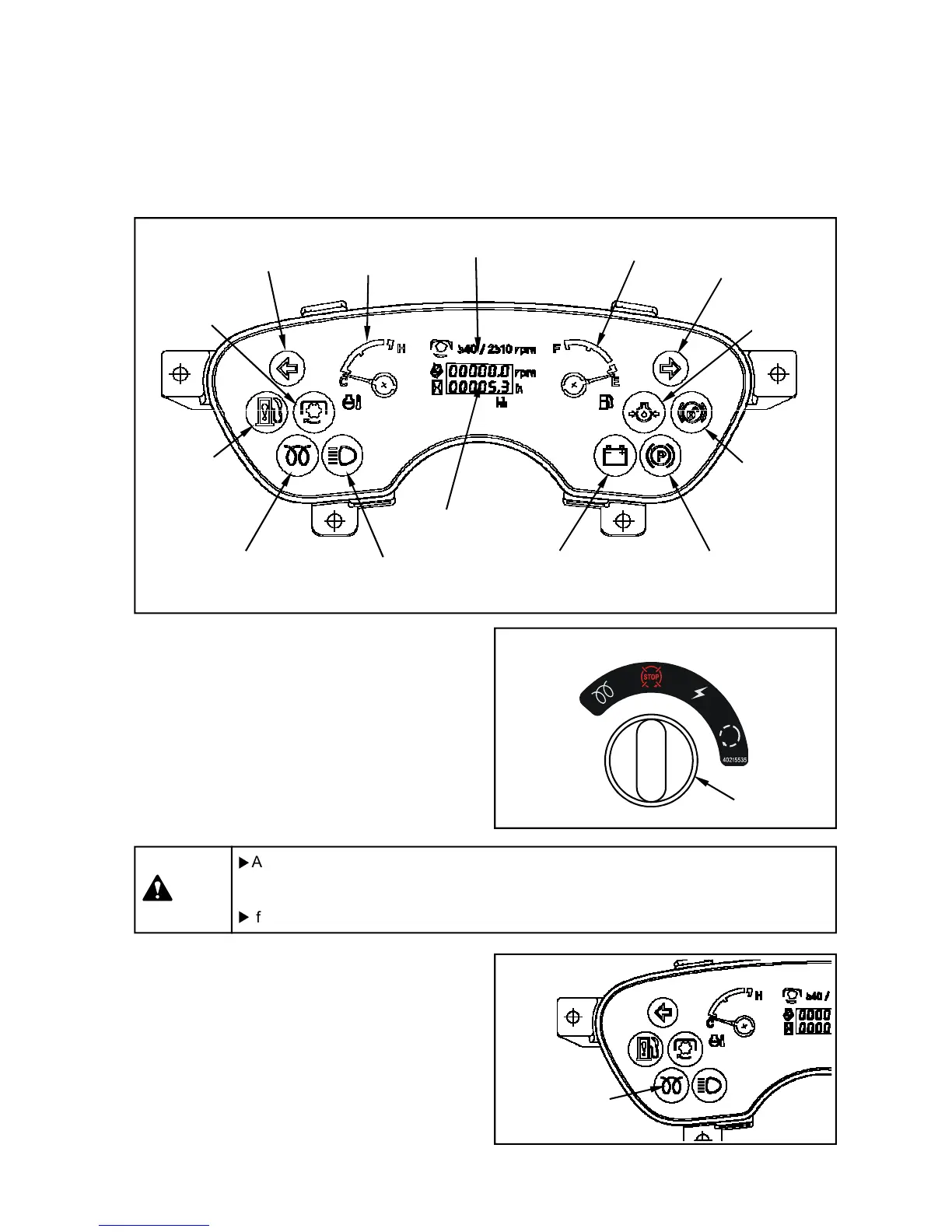

(1) The name of each part
Tachometer
Turn signal
indicator (LH)
Turn signal
indicator (RH)
Fuel level gauge
Engine coolant
temperature gauge
Engine oil
pressure
indicator
PTO operation
indicator
Hour meter
Fuel filter
warning
indicator
Battery charging
indicator
Parking brake
indicator
Cold start aid
indicator
High beam
indicator
One side
brake
indicator
(if fitted)
(2) Key switch
 Preheat - Preheat (Cold start aid)
 OFF - Engine stops, Power off
 ON - Power on
 Start - Engine start up
Key switch
Preheat
OFF
ON
Start
3
3 3
3 - 1
(3) Cold start aid indicator
 If the cold start aid device is working, this indicator
will be ON. After the indicator is OFF, start the
engine.
Cold start aid
Indicator
▶ As soon as engine starts, turn the key switch to ON position immediately. If not, it
may cause damage to starter motor.
▶ If the tractor is not in use, the ignition key should be removed.
Caution
