LS tractor K5047 - I3040;I3040 H Assembly

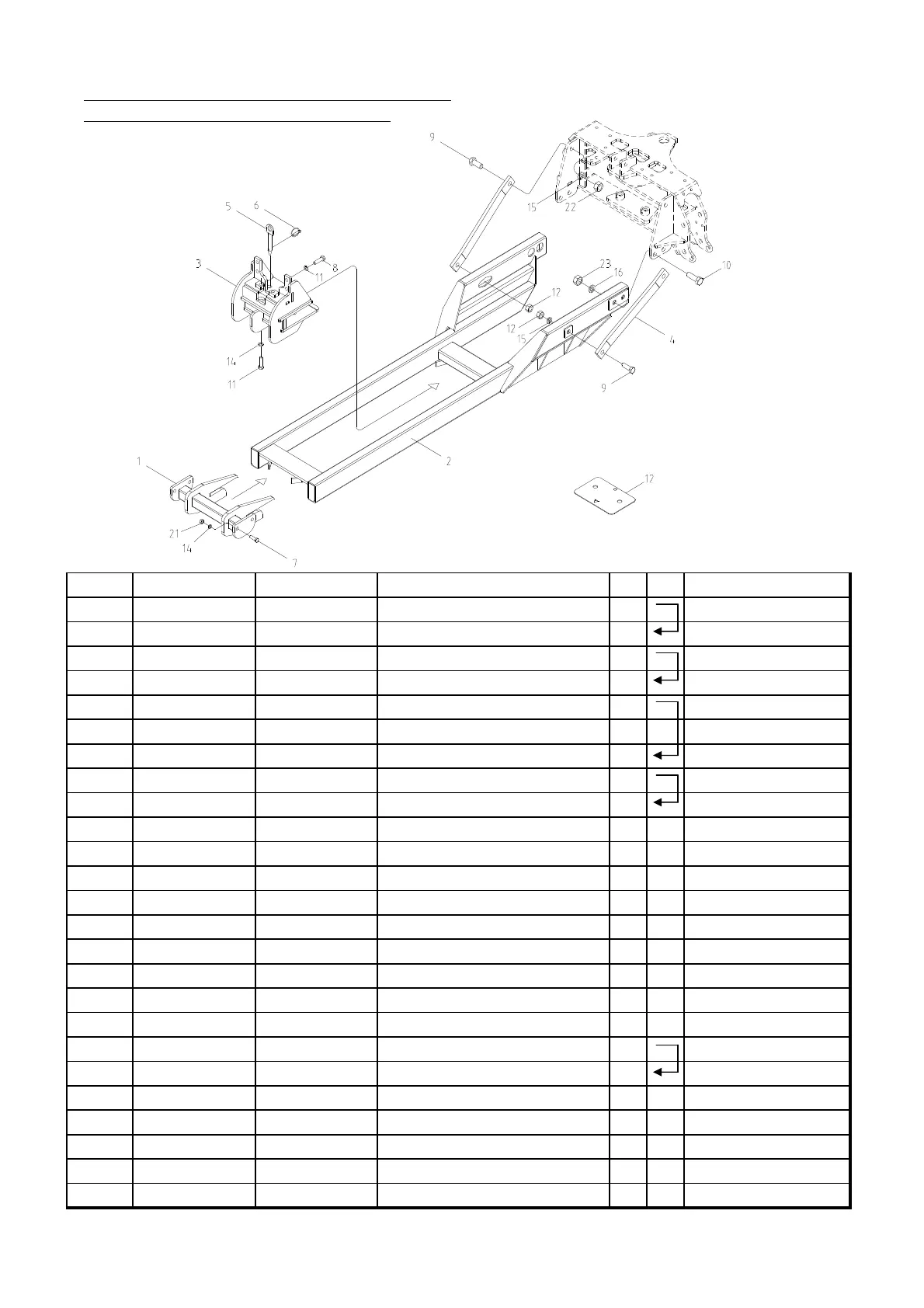

SUBFRAME ASSEMBLY
-I3030/I3030H,I3040/I3040H
REF.NO LS PART.NO PART.NO DESCRIPTION QTY I.C SERIAL OR DATE
0 40231126 FTS71-00000 SUBFRAME ASS'Y 1
40320334 FTS71-00000-06 SUBFRAME ASS'Y 1 2014.12.15~
1 40231127 FTS71-10100 CROSS BAR W.A. 1
40320335 FTS71-10100-02 CROSS BAR W.A. 1 2014.12.15~
2 40231128 FTS71-10200 RAIL W.A. 1
40256024 FTS71-10200-01 RAIL W.A. 1 2011.02.22~2014.12.14
40286940 FTS78-11200 RAIL W.A 1 2014.12.15~
3 40231129 FTS71-10300 BRACKET_MID W.A. 1
40256022 FTS71-10400 BRACKET_MID W.A. 1 2011.02.22~
4 40231116 DK05-0101-02 BRACE 2
5 40230905 14132-20120 PIN 2
6 40228656 14021-10000 RING-PIN,∅10 2
7 40228623 10191-M1406-60 HEX.BOLT-HT,M14-2.0P 60L 4
8 40230601 10191-M1406-40 HEX.BOLT-HT,M14-2.0P 40L 4
9 40230894 10191-M2007-70 HEX.BOLT-HT,M20-2.5P 70L 4
10 40230895 10191-M2207-70 HEX.BOLT-HT,M22-2.5P 70L 4
11 40230893 10191-M1406-55 HEX.BOLT-HT,M14-2.0P 55L 2 Addition (2011.02.22)
12 40264330 FTS71-10501 SPACER 1 2011.06.01 ~ 2012.05.08
14 40228643 10316-M1400 WASHER-SPRING,M14 8
40228643 10316-M1400 WASHER-SPRING,M14 10 2011.02.22~
15 40228645 10316-M2000 WASHER-SPRING,M20 4
16 40230899 10316-M2200 WASHER-SPRING,M22 4
21 40228637 10261-M1406 HEX.NUT-HT,M14-2.0P 4
22 40228639 10261-M2007 HEX.NUT-HT,M20-2.5P 4
23 40230898 10261-M2207 HEX.NUT-HT,M22-2.5P 4
