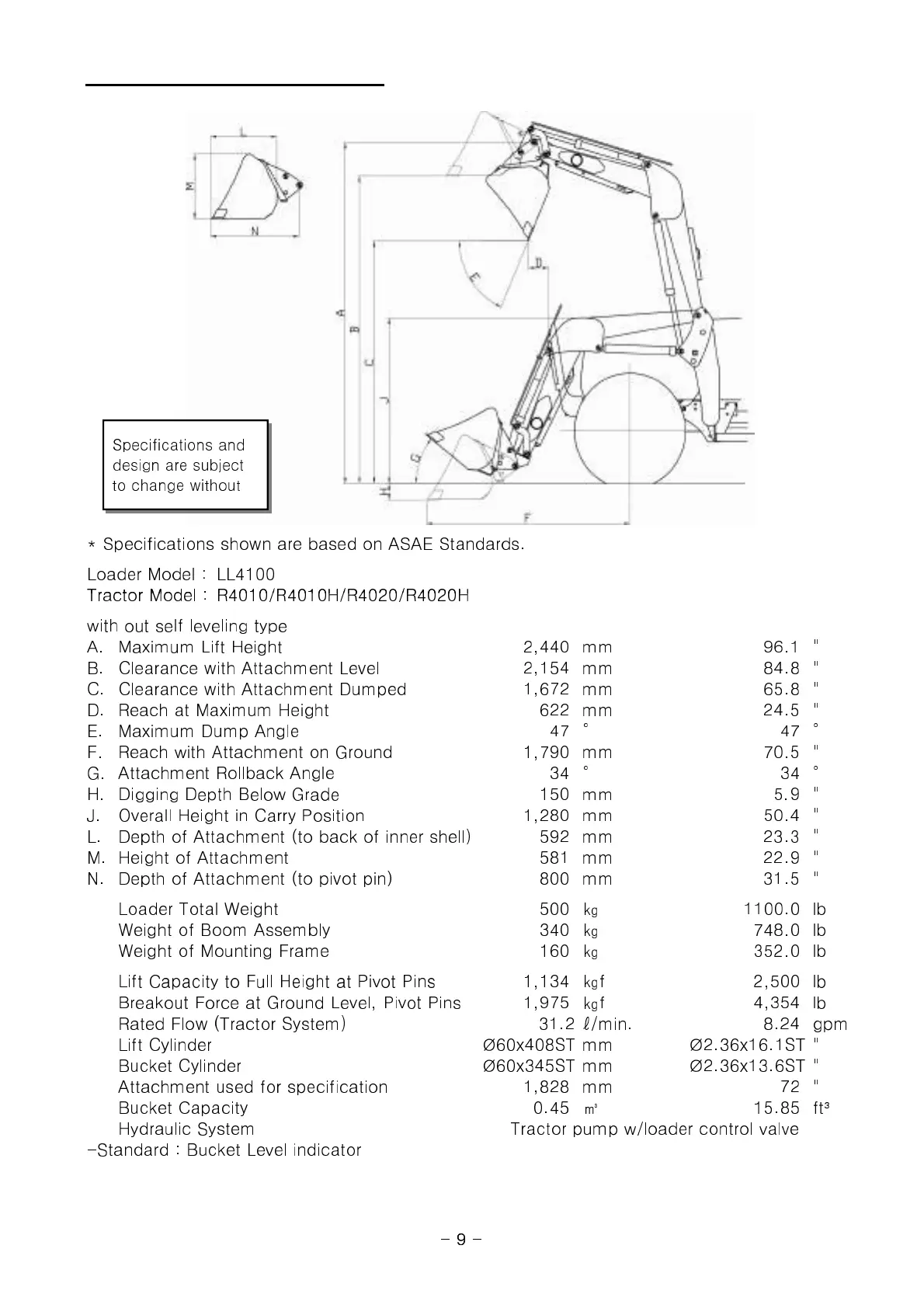

LOADER SPECIFICATION
* Specifications shown are based on ASAE Standards.
Loader Model : LL4100
R4010/R4010H/R4020/R4020H
Specifications and
design are subject
to change without
- 9 -
R4010/R4010H/R4020/R4020H
with out self leveling type
A. Maximum Lift Height 2,440 mm 96.1 "
B. Clearance with Attachment Level 2,154 mm 84.8 "
C. Clearance with Attachment Dumped 1,672 mm 65.8 "
D. Reach at Maximum Height 622 mm 24.5 "
E. Maximum Dump Angle 47 ° 47 °
F. Reach with Attachment on Ground 1,790 mm 70.5 "
G. Attachment Rollback Angle 34 ° 34 °
H. Digging Depth Below Grade 150 mm 5.9 "
J. Overall Height in Carry Position 1,280 mm 50.4 "
L. Depth of Attachment (to back of inner shell) 592 mm 23.3 "
M. Height of Attachment 581 mm 22.9 "
N. Depth of Attachment (to pivot pin) 800 mm 31.5 "
Loader Total Weight 500 ㎏ 1100.0 lb
Weight of Boom Assembly 340 ㎏ 748.0 lb
Weight of Mounting Frame 160 ㎏ 352.0 lb
Lift Capacity to Full Height at Pivot Pins 1,134 ㎏f 2,500 lb
Breakout Force at Ground Level, Pivot Pins 1,975 ㎏f 4,354 lb
Rated Flow (Tractor System) 31.2 ℓ/min. 8.24 gpm
Lift Cylinder Ø60x408ST mm Ø2.36x16.1ST "
Bucket Cylinder Ø60x345ST mm Ø2.36x13.6ST "
Attachment used for specification 1,828 mm 72 "
Bucket Capacity 0.45 ㎥ 15.85 ft³
Hydraulic System Tractor pump w/loader control valve
-Standard : Bucket Level indicator
