LOADER INSTALLATION
CAUTION: See your Loader Operator's manual for Safety Precautions and Tractor Preparations.
CAUTION: See your Loader Operator's manual for Safety Precautions and Tractor Preparations.CAUTION: See your Loader Operator's manual for Safety Precautions and Tractor Preparations.
CAUTION: See your Loader Operator's manual for Safety Precautions and Tractor Preparations.

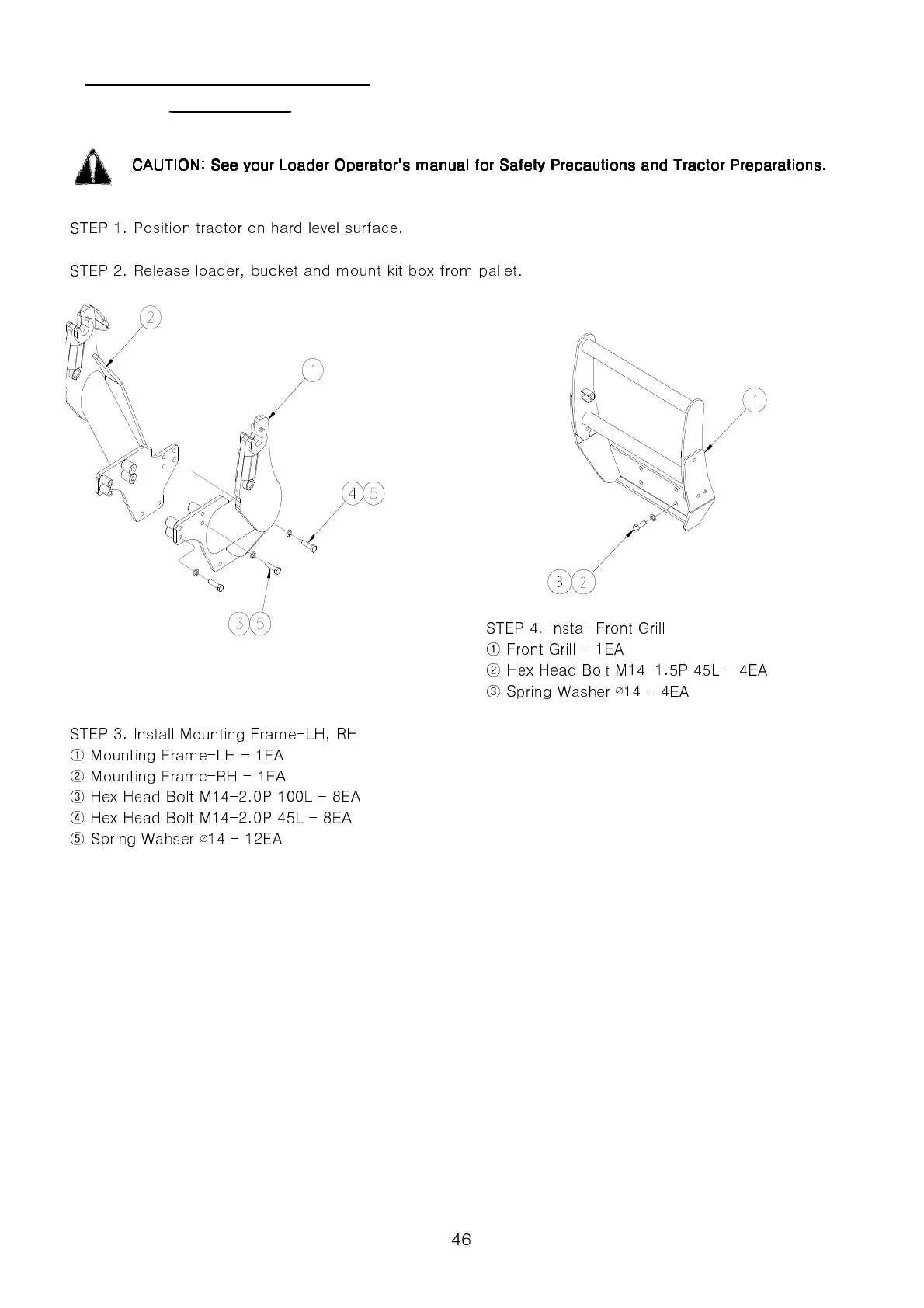

STEP 1. Position tractor on hard level surface.
STEP 2. Release loader, bucket and mount kit box from pallet.
STEP 4. Install Front Grill
① Front Grill - 1EA
② Hex Head Bolt M14-1.5P 45L - 4EA
③ Spring Washer
∅
14 - 4EA
STEP 3. Install Mounting Frame-LH, RH
① Mounting Frame-LH - 1EA
② Mounting Frame-RH - 1EA
③ Hex Head Bolt M14-2.0P 100L - 8EA
④ Hex Head Bolt M14-2.0P 45L - 8EA
⑤ Spring Wahser
∅
14 - 12EA
46
To Next Page
