LOADER INSTALLATION

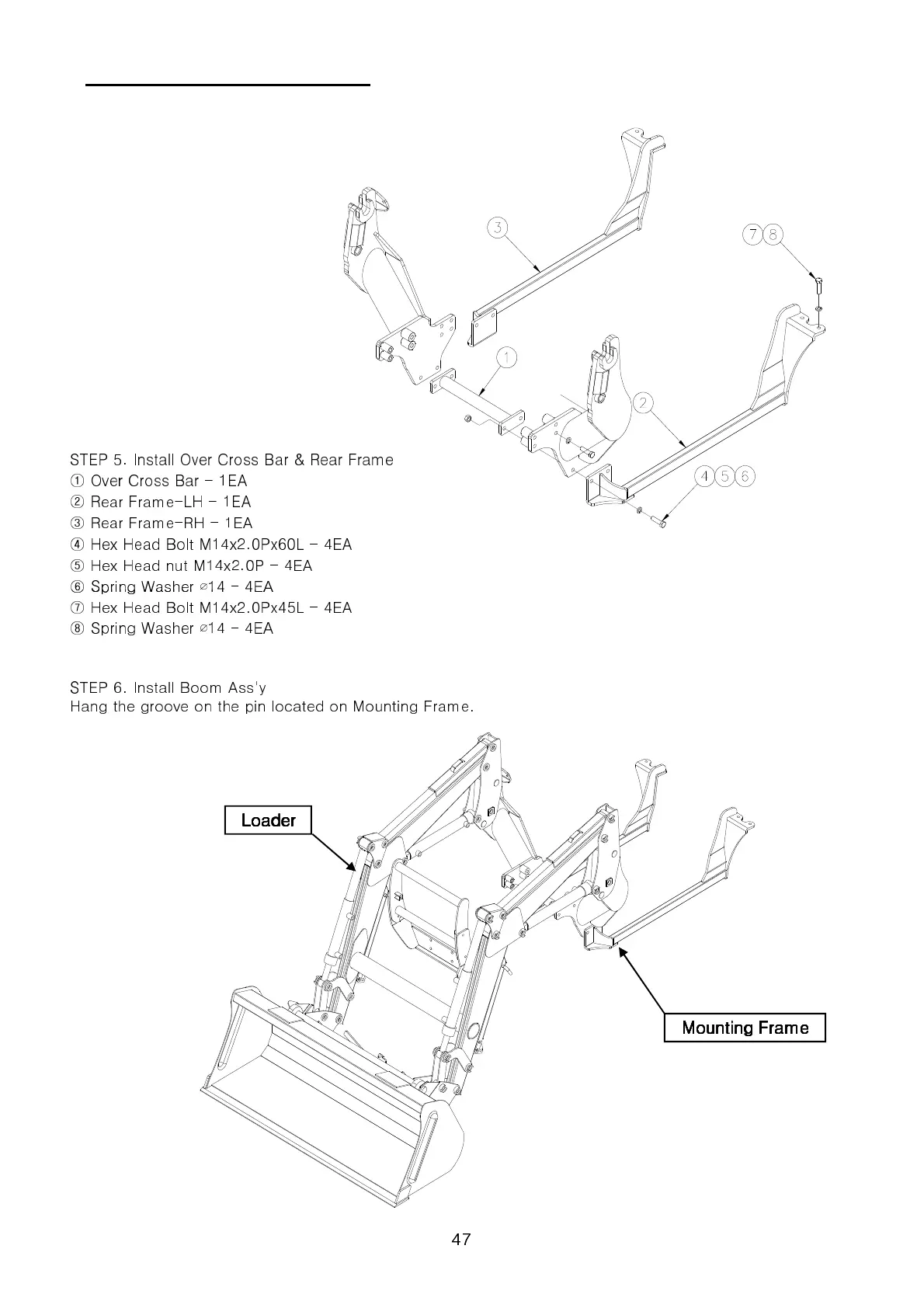

STEP 5. Install Over Cross Bar & Rear Frame
① Over Cross Bar - 1EA
② Rear Frame-LH - 1EA
③ Rear Frame-RH - 1EA
④ Hex Head Bolt M14x2.0Px60L - 4EA
⑤ Hex Head nut M14x2.0P - 4EA
⑥ Spring Washer
∅
14 - 4EA
47
⑥ Spring Washer
∅
14 - 4EA
⑦ Hex Head Bolt M14x2.0Px45L - 4EA
⑧ Spring Washer ∅ 14 - 4EA
STEP 6. Install Boom Ass'y
Hang the groove on the pin located on Mounting Frame.
Loader
LoaderLoader
Loader
Mounting Frame
Mounting FrameMounting Frame
Mounting Frame
