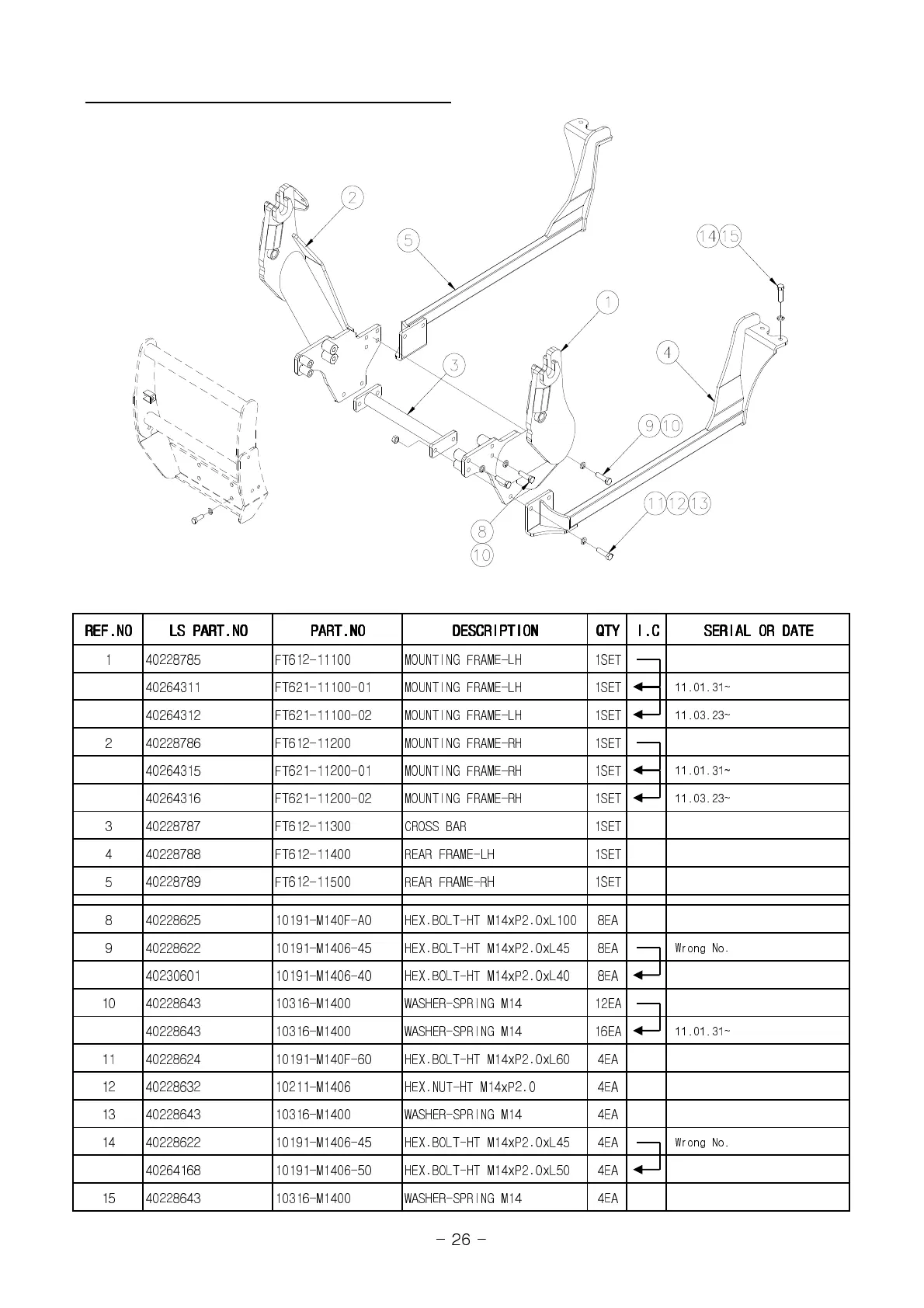

LS tractor LL4100 - MOUNTING FRAME ASSEMBLY

MOUNTING FRAME ASSEMBLY
LL4100
LL4100LL4100
LL4100
REF.NO
REF.NOREF.NO
REF.NO LS PART.NO
LS PART.NOLS PART.NO
LS PART.NO PART.NO
PART.NOPART.NO
PART.NO DESCRIPTION
DESCRIPTIONDESCRIPTION
DESCRIPTION QTY
QTYQTY
QTY I.C
I.CI.C
I.C SERIAL OR DATE
SERIAL OR DATESERIAL OR DATE
SERIAL OR DATE
1 40228785 FT612-11100 MOUNTING FRAME-LH 1SET
40264311 FT621-11100-01 MOUNTING FRAME-LH 1SET
11.01.31~
40264312 FT621-11100-02 MOUNTING FRAME-LH 1SET
11.03.23~
2 40228786 FT612-11200 MOUNTING FRAME-RH 1SET
40264315 FT621-11200-01 MOUNTING FRAME-RH 1SET
11.01.31~
40264316 FT621-11200-02 MOUNTING FRAME-RH 1SET
11.03.23~
3 40228787 FT612-11300 CROSS BAR 1SET
4 40228788 FT612-11400 REAR FRAME-LH 1SET
5 40228789 FT612-11500 REAR FRAME-RH 1SET
8 40228625 10191-M140F-A0 HEX.BOLT-HT M14xP2.0xL100 8EA
9 40228622 10191-M1406-45 HEX.BOLT-HT M14xP2.0xL45 8EA
Wrong No.
40230601 10191-M1406-40 HEX.BOLT-HT M14xP2.0xL40 8EA
10 40228643 10316-M1400 WASHER-SPRING M14 12EA
40228643 10316-M1400 WASHER-SPRING M14 16EA
11.01.31~
11 40228624 10191-M140F-60 HEX.BOLT-HT M14xP2.0xL60 4EA
12 40228632 10211-M1406 HEX.NUT-HT M14xP2.0 4EA
13 40228643 10316-M1400 WASHER-SPRING M14 4EA
14 40228622 10191-M1406-45 HEX.BOLT-HT M14xP2.0xL45 4EA
Wrong No.
40264168 10191-M1406-50 HEX.BOLT-HT M14xP2.0xL50 4EA
15 40228643 10316-M1400 WASHER-SPRING M14 4EA
- 26 -
