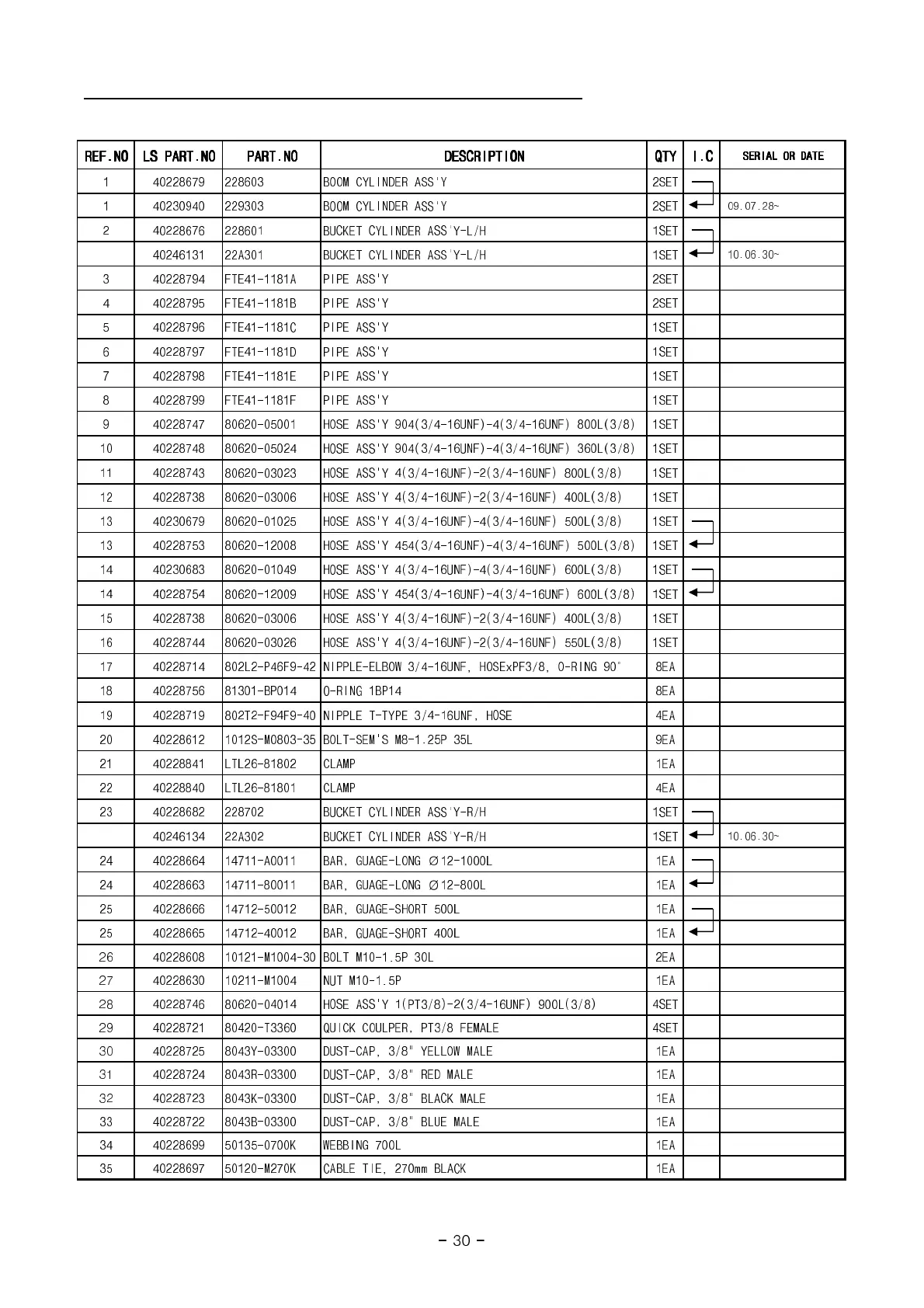

HYDRAULIC PIPING (NON SELF LEVEL T-TYPE) ~06/19/09
LL4100
LL4100LL4100
LL4100
REF.NO
REF.NOREF.NO
REF.NO LS PART.NO
LS PART.NOLS PART.NO
LS PART.NO PART.NO
PART.NOPART.NO
PART.NO DESCRIPTION
DESCRIPTIONDESCRIPTION
DESCRIPTION QTY
QTYQTY
QTY I.C
I.CI.C
I.C
SERIAL OR DATE
SERIAL OR DATESERIAL OR DATE
SERIAL OR DATE
1 40228679 228603 BOOM CYLINDER ASS'Y 2SET
1 40230940 229303 BOOM CYLINDER ASS'Y 2SET
09.07.28~
2 40228676 228601 BUCKET CYLINDER ASS'Y-L/H 1SET
40246131 22A301 BUCKET CYLINDER ASS'Y-L/H 1SET
10.06.30~
3 40228794 FTE41-1181A PIPE ASS'Y 2SET
4 40228795 FTE41-1181B PIPE ASS'Y 2SET
5 40228796 FTE41-1181C PIPE ASS'Y 1SET
6 40228797 FTE41-1181D PIPE ASS'Y 1SET
7 40228798 FTE41-1181E PIPE ASS'Y 1SET
8 40228799 FTE41-1181F PIPE ASS'Y 1SET
9 40228747 80620-05001 HOSE ASS'Y 904(3/4-16UNF)-4(3/4-16UNF) 800L(3/8) 1SET
10 40228748 80620-05024 HOSE ASS'Y 904(3/4-16UNF)-4(3/4-16UNF) 360L(3/8) 1SET
11 40228743 80620-03023 HOSE ASS'Y 4(3/4-16UNF)-2(3/4-16UNF) 800L(3/8) 1SET
12 40228738 80620-03006 HOSE ASS'Y 4(3/4-16UNF)-2(3/4-16UNF) 400L(3/8) 1SET
13 40230679 80620-01025 HOSE ASS'Y 4(3/4-16UNF)-4(3/4-16UNF) 500L(3/8) 1SET
13 40228753 80620-12008 HOSE ASS'Y 454(3/4-16UNF)-4(3/4-16UNF) 500L(3/8) 1SET
14 40230683 80620-01049 HOSE ASS'Y 4(3/4-16UNF)-4(3/4-16UNF) 600L(3/8) 1SET
14
40228754
80620-12009
HOSE ASS'Y 454(3/4-16UNF)-4(3/4-16UNF) 600L(3/8)
1SET
14
40228754
80620-12009
HOSE ASS'Y 454(3/4-16UNF)-4(3/4-16UNF) 600L(3/8)
1SET
15 40228738 80620-03006 HOSE ASS'Y 4(3/4-16UNF)-2(3/4-16UNF) 400L(3/8) 1SET
16 40228744 80620-03026 HOSE ASS'Y 4(3/4-16UNF)-2(3/4-16UNF) 550L(3/8) 1SET
17 40228714 802L2-P46F9-42 NIPPLE-ELBOW 3/4-16UNF, HOSExPF3/8, O-RING 90° 8EA
18 40228756 81301-BP014 O-RING 1BP14 8EA
19 40228719 802T2-F94F9-40 NIPPLE T-TYPE 3/4-16UNF, HOSE 4EA
20 40228612 1012S-M0803-35 BOLT-SEM'S M8-1.25P 35L 9EA
21 40228841 LTL26-81802 CLAMP 1EA
22 40228840 LTL26-81801 CLAMP 4EA
23 40228682 228702 BUCKET CYLINDER ASS'Y-R/H 1SET
40246134 22A302 BUCKET CYLINDER ASS'Y-R/H 1SET
10.06.30~
24 40228664 14711-A0011 BAR, GUAGE-LONG Ø12-1000L 1EA
24 40228663 14711-80011 BAR, GUAGE-LONG Ø12-800L 1EA
25 40228666 14712-50012 BAR, GUAGE-SHORT 500L 1EA
25 40228665 14712-40012 BAR, GUAGE-SHORT 400L 1EA
26 40228608 10121-M1004-30 BOLT M10-1.5P 30L 2EA
27 40228630 10211-M1004 NUT M10-1.5P 1EA
28 40228746 80620-04014 HOSE ASS'Y 1(PT3/8)-2(3/4-16UNF) 900L(3/8) 4SET
29 40228721 80420-T3360 QUICK COULPER, PT3/8 FEMALE 4SET
30 40228725 8043Y-03300 DUST-CAP, 3/8" YELLOW MALE 1EA
31 40228724 8043R-03300 DUST-CAP, 3/8" RED MALE 1EA
32 40228723 8043K-03300 DUST-CAP, 3/8" BLACK MALE 1EA
33 40228722 8043B-03300 DUST-CAP, 3/8" BLUE MALE 1EA
34 40228699 50135-0700K WEBBING 700L 1EA
35 40228697 50120-M270K CABLE TIE, 270mm BLACK 1EA
- 30 -
