LS tractor MT2 25S

To Next Page

To Previous Page

6 -1

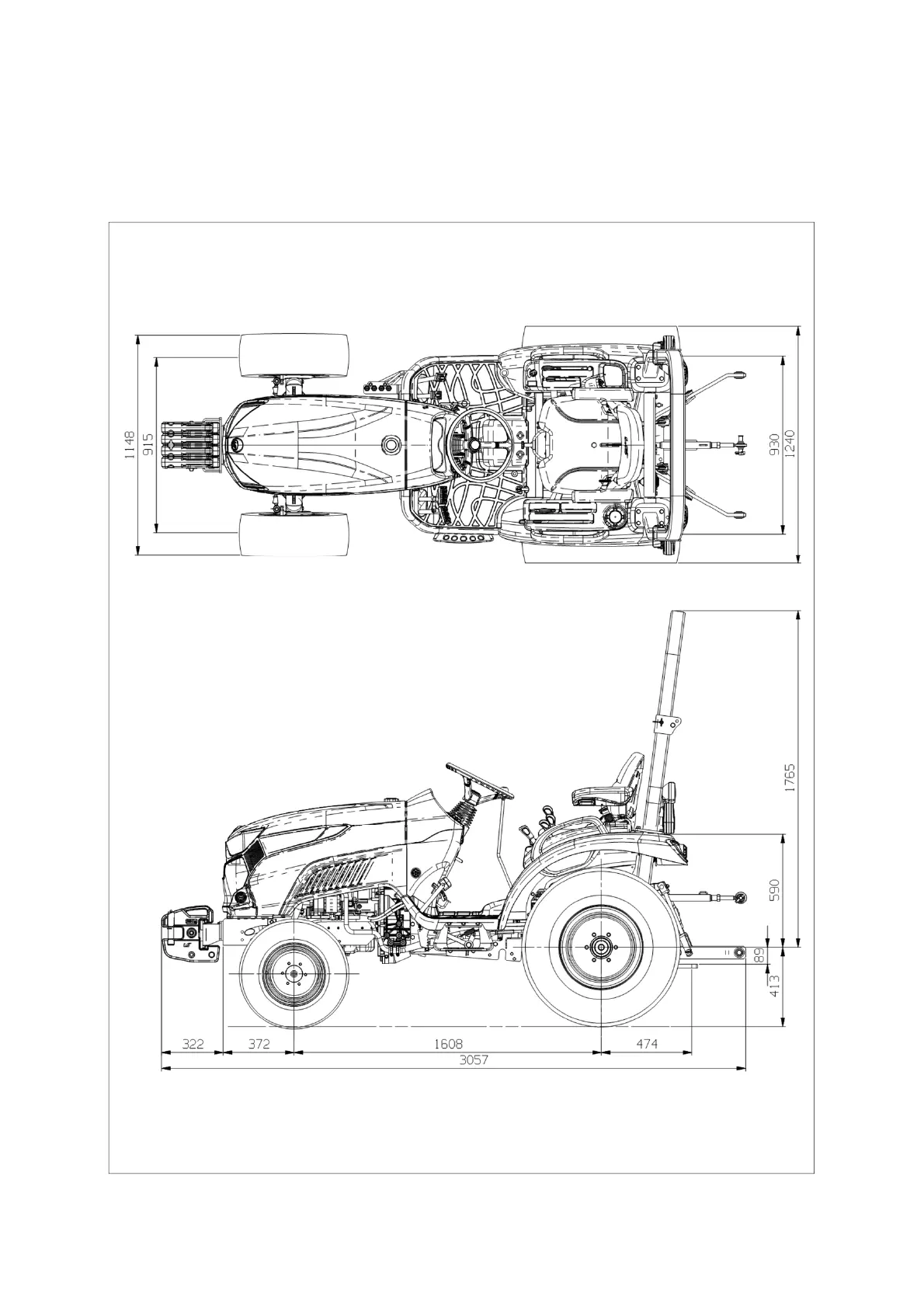

6. Dimension and Specification

- HST Type rear foldable roll-bar

(Unit : mm)

* When applying front tires: 205/65-12 R-4, rear tires: 305/70-16.5 R-4
