LS tractor MT2 25S User Manual
5
of 1
of 1 rating
187 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
3
-1
3
HST type
Range gear
shift lever
4WD lever
Differential lock pedal
Middle PTO lever
PTO switch
See chapter 3-3
Important to owner
, read carefully
.

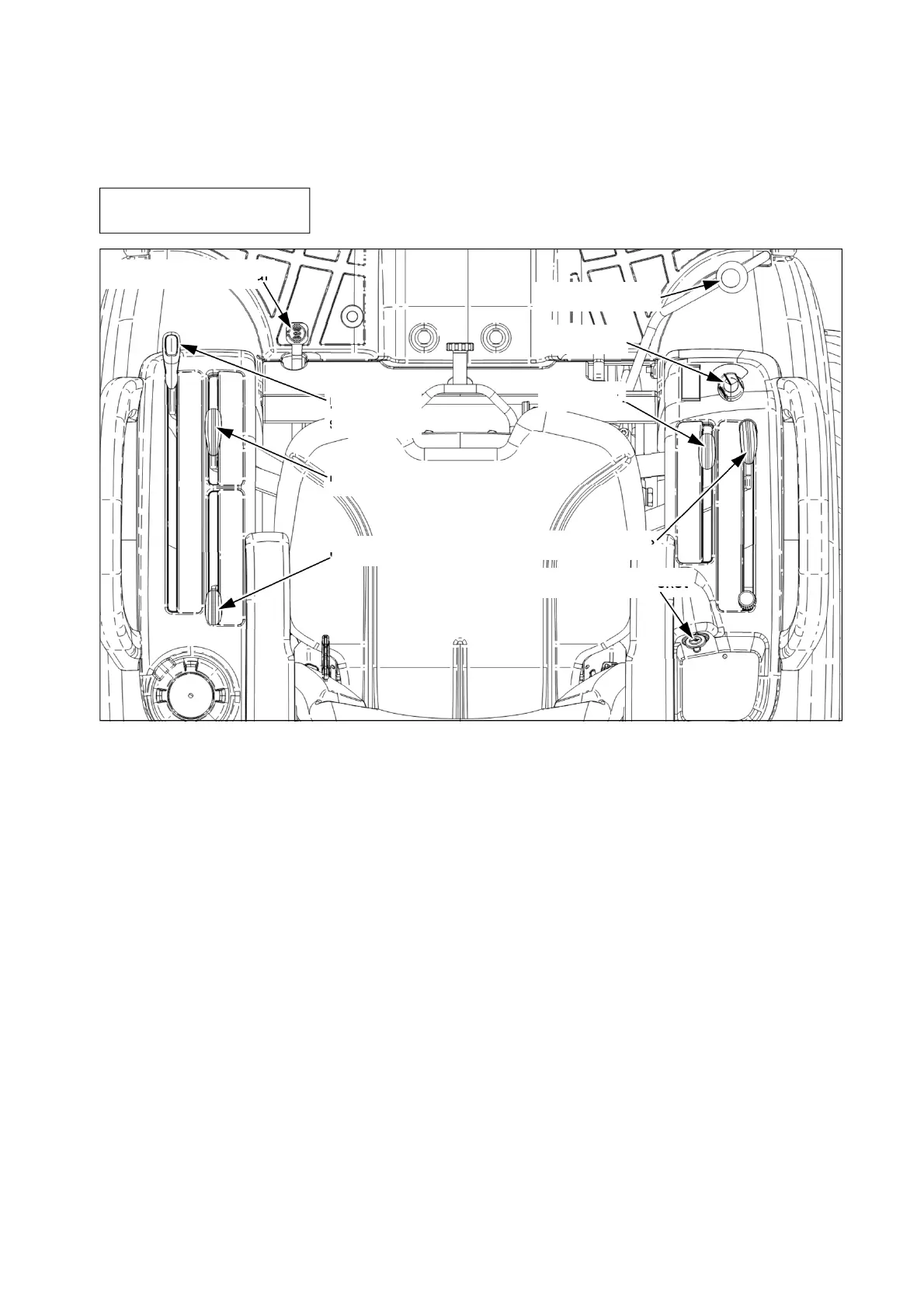

3-2. Left / Right-hand side Levers
and Pedals
Rear PTO lever
See chapter 3-3
Power outlet socket
68
70
Table of Contents
Default Chapter
3
Table of Contents
3
1 General Notices for Safety
8
Note to the Owner - General Information
8
Before Using the Tractor
10
Manual Scope and Required Training Level
12
Metric and Imperial Units Abbreviations
14
Product Identification Number (PIN)
16
Operator's Manual Storage
18
Tractor Orientation
19
Safety Precautions (Read this for Safety before Using)
20
Notices before Using the Tractor
20
Notices When Starting Engine
23
Notices While Operating/Using the Tractor
24
Notices When Connecting Implement
26
Notices When Towing the Tractor
27
Notices When Transporting the Tractor
27
Notices When Servicing the Tractor after Work
28
Notices When Handling Diesel Fuel
29
Notices When Leaving the Tractor
30
Notices Relating to Toxic Substances
30
Tractor Stability
31
Ecology and the Environment
34
Symbols
36
Safety Decals
37
Instructional Decals
42
Long-Term Storage
46
Preparation for Storage
46
Check & Maintenance During Storage
47
Preparation for Reuse
48
2 Instruction for Safe Operation
49
The Name of each Part
49
Boarding and Exiting the Tractor
50
Boarding the Tractor
50
Driver's Seat Switch
50
Seat Adjustment
51
Steering Tilt Pedal
52
Seat Belt
52
Exiting the Tractor
53
Safety Device
54
Hood (Bonnet)
54
Fender
54
PTO Safety Cover and Protection Cap
54
Roll-Over Protective Structure (ROPS)
55
3 Instruments and Controls
57
Instrument Panel and Front Controls
57
Instrument Panel
58
Key Switch
61
Multi-Functional Light Switch
61
Horn Switch (if Fitted)
64
Brake Pedal
65
HST Forward / Reverse Pedal (HST Type)
67
Cruise Control Lever(HST Type)
67
Parking Brake Lever
68
Left / Right-Hand Side Levers and Pedals
69
PTO Switch
70
4WD Lever
71
Rear Work Light Switch
71
Electrical Power Outlet Socket (USB)
72
Range Gear Shift Lever
72
Rear PTO Lever
73
Middle PTO Lever
73
Differential Lock Pedal
74
Hydraulic System
75
Safety Precautions
75
Steering System
76
Hydraulic Lift Control
77
MID Mower Height Adjustment Knob (if Fitted)
78
Joystick Lever
79
Hydraulic System Diagram
80
4 Operation and Work
81
How to Handle New Tractor
81
Check Points
81
Notices in Handling New Tractor (Engine Brake-In Procedure)
81
Engine Start and Stop
82
Engine Start
82
Start in Cold Weather
83
Engine Stop
84
How to Drive and Stop
85
Transmission Warm-Up in Cold Weather
85
How to Drive
86
Changing Speed
87
Emergency Stop
87
Stopping Tractor
88
Parking
89
Transport on Public Roads
90
Safety Rules When Driving Tractor on the Roads
90
Light Operation
91
7-Pole Connector (Optional)
92
Notices When Towing the Tractor
93
Notices When Transporting the Tractor
95
Field Operations
96
Rear 3-Point Linkage
96
Power Take-Off (PTO) Operation
100
Hitch and Drawbar (Optional)
103
Technically Maximum Permissible Mass
104
Tires and Load Capacity
105
Adjusting Wheel Tracks and Tire Replacement
106
Using Front-End Loader (Optional)
107
Adjusting Steering Angle
110
Recommended Maximum Specification of Implements
111
Driving Speed
115
5 Lubrication and Maintenance
116
General Information
116
Tightening Torque for Normal Assembly
117
Standard Torque Data for Hydraulics
119
General Specification - Diesel Fuel
122
Biodiesel Fuel
123
Refueling the Tractor
125
Change Engine Coolant to Organic Acid Technology (OAT) Coolant
126
Access for Maintenance
127
Maintenance Chart
128
Lubricants and Capacity
130
First 50 Hour Check
131
Checking before Starting (Daily Check)
132
Engine Oil
132
Fuel Tank
133
Instrument Panel & Indicators
133
Engine Oil
133
Turn Signal Lights, Lights and Horn
134
Engine Coolant
135
Air Cleaner (Dry Type)
135
Cleaning of Radiator and Radiator Screen
136
Tire Air Pressure and Damage
136
Radiator Screen
136
Tightening State of Bolts and Nuts of each Part
137
Adjustment of Brake Pedal Play
138
Fuel Filter Water Separator - Check and Drain
140
Every 50 Hour Check
141
Lubricating Grease
141
Cleaning of Radiator and Radiator Screen
141
Checking Transmission Oil
142
Checking Front Axle Oil
142
Battery Check
143
Air Cleaner (Dry Type)
143
Hydraulic Hoses and Leakage
143
Air Cleaner
143
Every 250 Hour Check
144
Replacing Engine Oil and Filter
144
Replacing Hydraulic Oil Filter
145
Tension Adjustment of Fan Belt
146
Replacing Air Cleaner Element (Dry Type)
146
Toe-In
147
Drain Fuel Tank
148
Every 500 Hour Check
149
Changing Front Axle Oil
149
Changing Transmission Oil
149
Replacing Fuel Filter Cartridge
150
Every 1000 Hour Check
151
Adjusting Engine Valve Clearance
151
Checking Nozzle Injection Pressure
151
Valve Clearance
151
Nozzle Injection Pressure
151
Every Every 2000 Hour or 2-Year Check
152
Replacement of Engine Coolant
152
Fuel and Coolant Hoses
155
Every 3000 Hour Check
156
Inspect ECU and Sensors
156
General Maintenance (When Required)
157
Air-Bleeding from Fuel System
157
Fuse & Main Fuse
160
Battery Handling and Notices
162
Alternator and Drive Belt - Check
166
Turn Signal Light Bulb - Replace
167
Headlight Bulb - Replace
168
Touch-Up Paint Color
169
Troubleshooting
170
Brake Pedal Play
172
Engine Manufacturer's Warranty
176
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the LS tractor MT2 25S and is the answer not in the manual?
Ask a question
