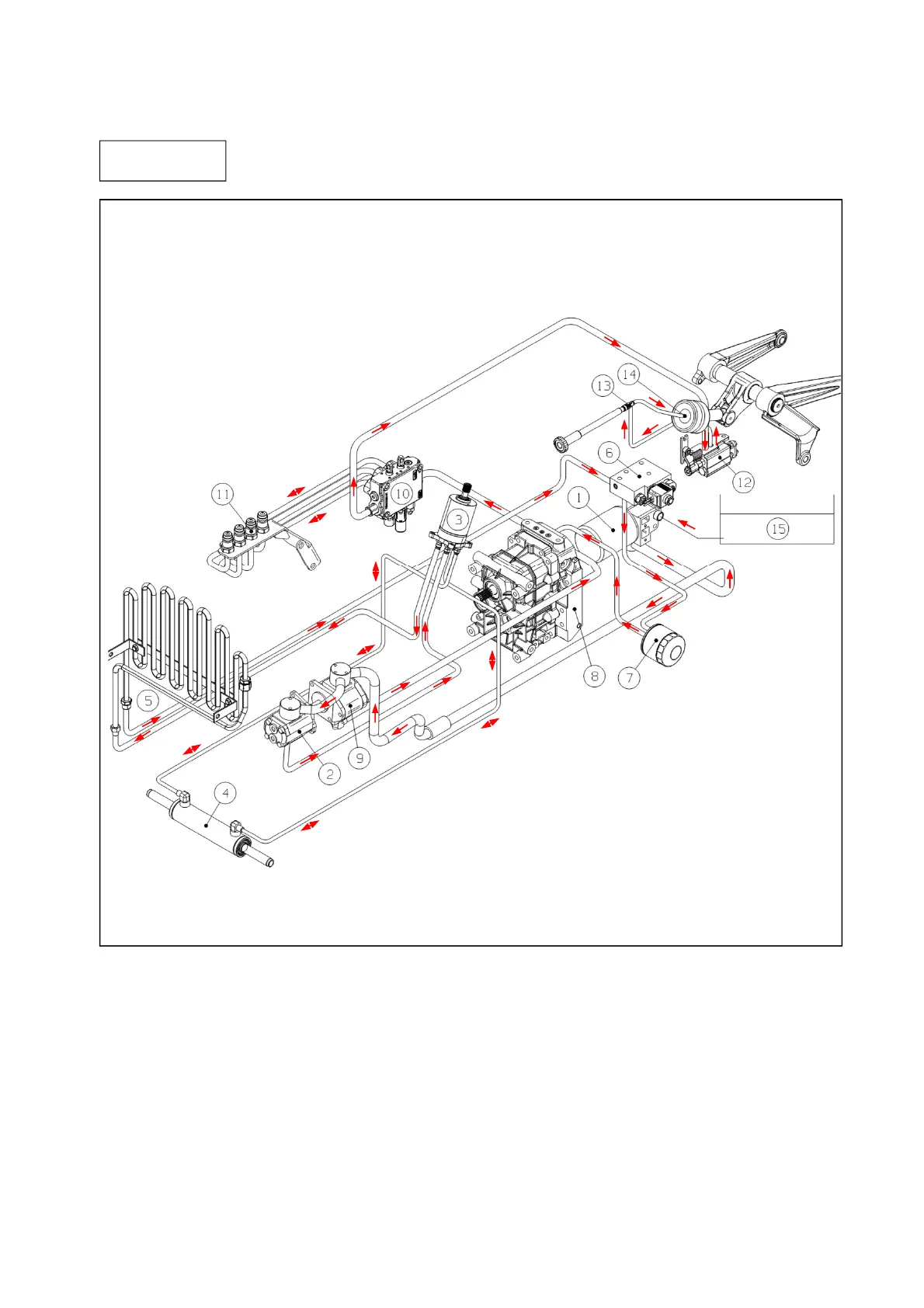

(6) Hydraulic System Diagram
HST type
1. Hydraulic oil filter
2. Hydraulic steering pump
3. Steering unit
4. Steering cylinder
5. TM oil cooler
6. PTO valve
7. HST filter
8. HST unit
9. Hydraulic lift pump
10. Front loader valve
11. Quick couplers
12. Hydraulic lift control valve
13. Down speed control valve
14. Hydraulic lift cylinder
15. Oil tank (Transmission case)
