LS tractor R4047 User Manual
5
of 1
of 1 rating
125 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...

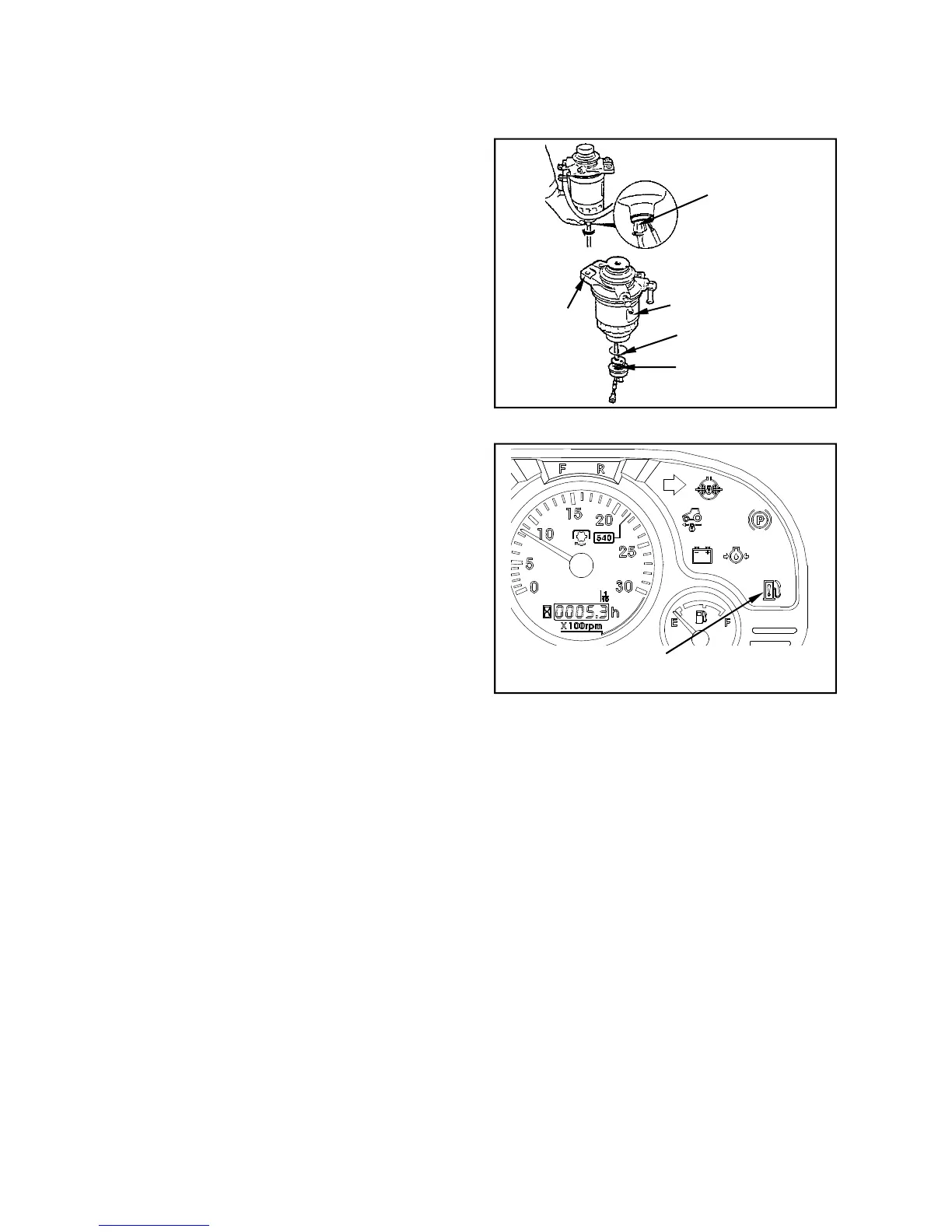

5-5. When the w
arning indicator lights
(1) Drain water
from Fuel
filter
1. Loosen
the drain plug
and
drain w
ater inside of
the filter.
(Approx.
150cc(9.1
in³))
2. Tighten
the
drain plug
and
bleed
the
air from the
fuel filter.
(
See page
5-25
)
Drain plug
Body
Element
O-ring
Fuel filter sen
sor
Fuel filter
warning in
dicator
5
5
5
5
-
7
87
89
Table of Contents
Default Chapter
2
Table of Contents
2
General Notices for Safety
7
Before Using the Tractor
7
Safety Precautions (Read this for Safety before Using)
9
Notices before Using
9
Notices When Starting Engine
11
Notices While Operating/Using the Tractor
12
Notices When Connecting Implement
14
Notices When Towing the Tractor
14
Notices When Transporting the Tractor
15
Notices When Parking Tractor
15
Notices When Checking Tractor after Work
16
Notices When Handling Diesel Fuel
17
Operator Protective Structure (OPS)
17
Long-Term Storage
18
Preparation for Storage
18
Check & Maintenance During Storage
19
Preparation for Reuse
19
Notices for "Use & Disposal" Related to Environment Preservation
20
Symbols
21
Safety Decals
22
Handling and Maintenance of Safety Decals
22
Safety Decals and Attaching Position
22
3 Instruments and Controls
24
Frame Type
24
The Name of each Part
24
Key Switch
25
Cold Start Aid Indicator
25
Tachometer and Hour Meter
26
Engine Coolant Temperature Gauge
26
Fuel Level Gauge
26
Turn Signal Light Switch
27
2 The Name of each Part
24
Engine Oil Pressure Indicator
27
Battery Charging Indicator
27
Fuel Filter Warning Indicator
27
Light Switch
28
Horn Switch
28
Hazard Warning Light Switch
28
Work Light Switch
29
Cruise Control Indicator (HST Type)
29
Cruise Control Switch (HST Type)
29
PTO Operation Indicator
30
PTO Switch
30
Parking Brake Indicator
30
Operating Levers and Pedals
31
Main Gear Shift Lever
34
Range Gear Shift Lever
35
PTO Gear Lever (if Fitted)
35
4WD Lever
36
Differential Lock Pedal
36
HST Forward/ Reverse Pedal (HST Type)
37
HST Neutral Switch
37
Driver's Seat (HST Type)
38
Seat Adjustment
38
Tilt Steering Wheel
39
EZ-Shift (Automated Mechanical Transmission) (if Fitted)
40
Clutch Pedal (EZ-Shift)
42
Adjustment of Clutch Pedal Play (EZ-Shift)
42
Instrument Panel (EZ-Shift)
43
Time Clock Adjustment (EZ-Shift)
44
Error Diagnosis Code (EZ-Shift)
45
Electrical Switch & Sensor Check (EZ-Shift)
46
Automatic Calibration (EZ-Shift)
47
Fuse (EZ-Shift)
49
Trouble Shooting (EZ-Shift)
50
Hydraulic System
52
Steering
52
Hydraulic Lift Control
52
Down Speed Control Knob
54
Remote Control Lever and Quick Coupler
54
Joystick Lever (if Fitted)
55
Hydraulic System Diagram
56
Safety Device
58
Seat Belt
58
Foldable Safety Frame (R.O.P.S Type)
58
Operation and Work
59
Engine Start and Stop
59
Engine Start
59
Start in Cold Weather
61
Engine Stop
61
How to Drive and How to Stop
62
How to Drive
62
Changing Speed
64
Emergency Stop
65
Stopping Tractor
66
Driving Tractor on the Road
67
Parking
68
Handling the Turbocharger
68
How to Handle New Tractor
69
Check Points
69
Notices in Handling New Tractor
69
Attaching Implement
70
3-Point Linkage
70
Upper Link Installation and Adjustment
71
Adjustment of Lift Rod's Length (Left/ Right)
71
Adjustment of Stabilizer's Length
71
Reference of Implement Installation Part
72
Reference of PTO Shaft
73
PTO Safety Cover and Protection Cap
73
Hitch and Drawbar
74
7-Pole Connector (Option)
75
Technically Maximum Permissible Mass
76
Adjusting Wheel Tracks and Tire Replacement
77
Tires and Load Capacity
78
Adjusting Steering Angle
79
Driving Speed
80
Lubrication and Maintenance
82
Checking of each Part
82
Checking Parts
82
Maintenance Table
84
Lubricants and Capacity
86
Access for Maintenance
87
First 50 Hour Check
87
When the Warning Indicator Lights
88
Engine Oil
90
Fuel Tank
90
Instrument Panel & Indicators
90
Turn Signal Lights, Lights and Horn
91
Engine Coolant
91
Air Cleaner (Dry Type)
92
Cleaning of Radiator and Radiator Screen
93
Tire Air Pressure and Damage
93
Tightening State of Bolts and Nuts of each Part
94
Adjustment of Clutch Pedal Play
94
Adjusting HST Control Linkage (HST Type)
95
Adjustment of Brake Pedal Play
96
Lubricating Grease Nipple
97
Checking Transmission Oil
98
Checking Front Axle Oil
98
Battery Check
98
Air Cleaner (Dry Type)
98
Cleaning of Radiator and Radiator Screen
98
Every 300 Hour Check
99
Replacing Engine Oil and Filter
99
Replacing Hydraulic Oil Filter
100
Replacing Fuel Filter Cartridge
101
Replacing Air Cleaner Element
101
Tension Adjustment of Fan Belt
102
Toe-In
102
Every 600 Hour Check
103
Changing Front Axle Oil
103
Changing Transmission Oil
103
Replacement of Engine Coolant
104
Adjusting Engine Valve Clearance
105
Checking Nozzle Injection Pressure
105
General Maintenance (When Required)
106
Air-Bleeding from Fuel System
106
Fuse & Main Fuse
108
Battery Handling and Notices
110
Troubleshooting
114
Dimension and Specification
120
