STEP 7

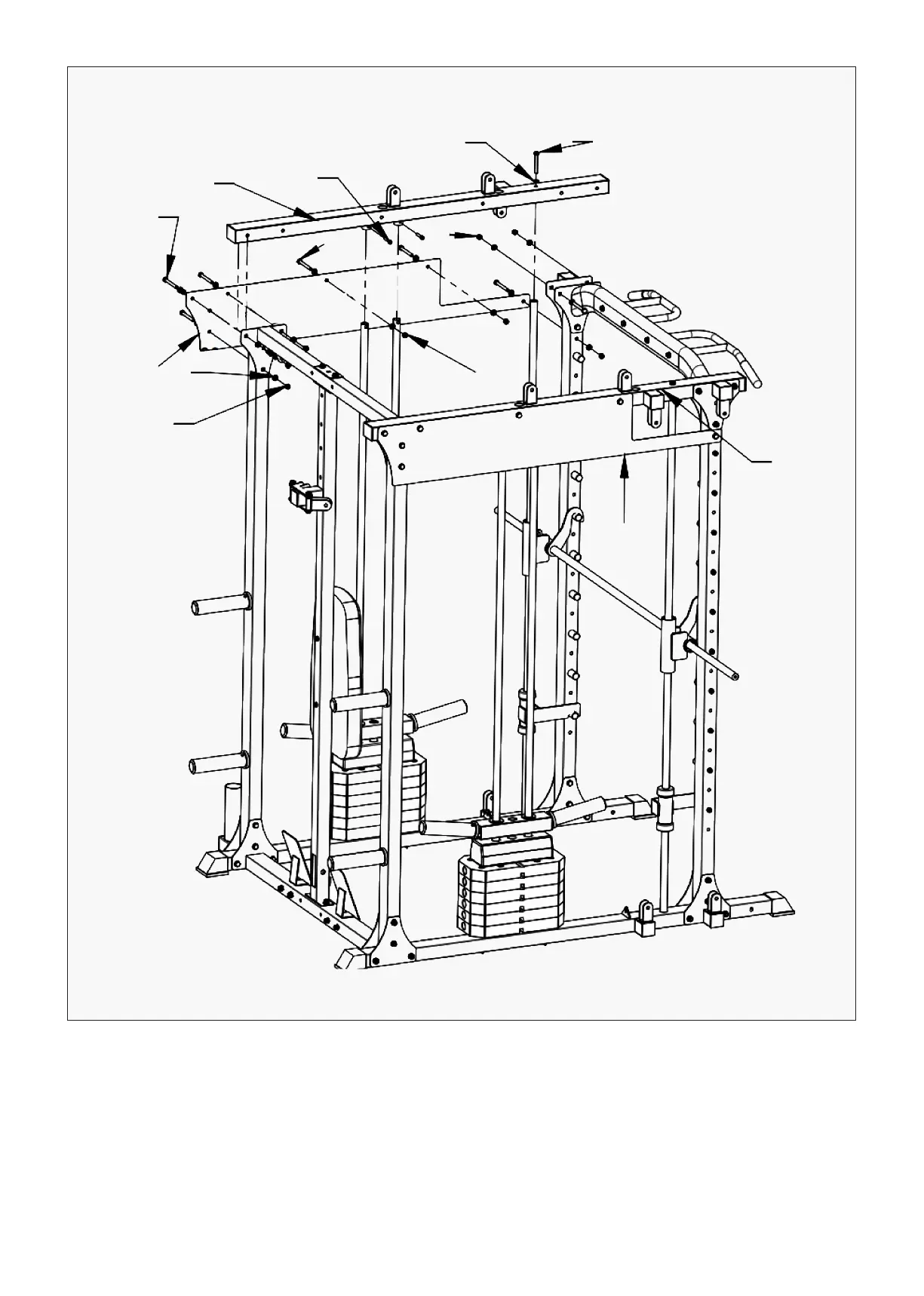

1. According to the diagram, first insert (#24) onto (#17) and on both sides (#8) and (#9), and (#20) with
bolts (#92), flat washer (#99), nut (#100). Then use bolts (#105) to fix on (#17) and use bolts (#93) and
flat washers (#99) to fix onto (#12) at the top of the frame.
2. Place (#26) outside (#24) and secure with bolts (#92), flat pads (#99) and nuts (#100).
3. Repeat the same on the other with part (#25) and (#27).
| ASSEMBLY INSTRUCTIONS
92
24
105
99
93
92
100
100
99
100
26
27
25
To Next Page
