LSG GRK200 - Page 16

16 | ASSEMBLY INSTRUCTIONS

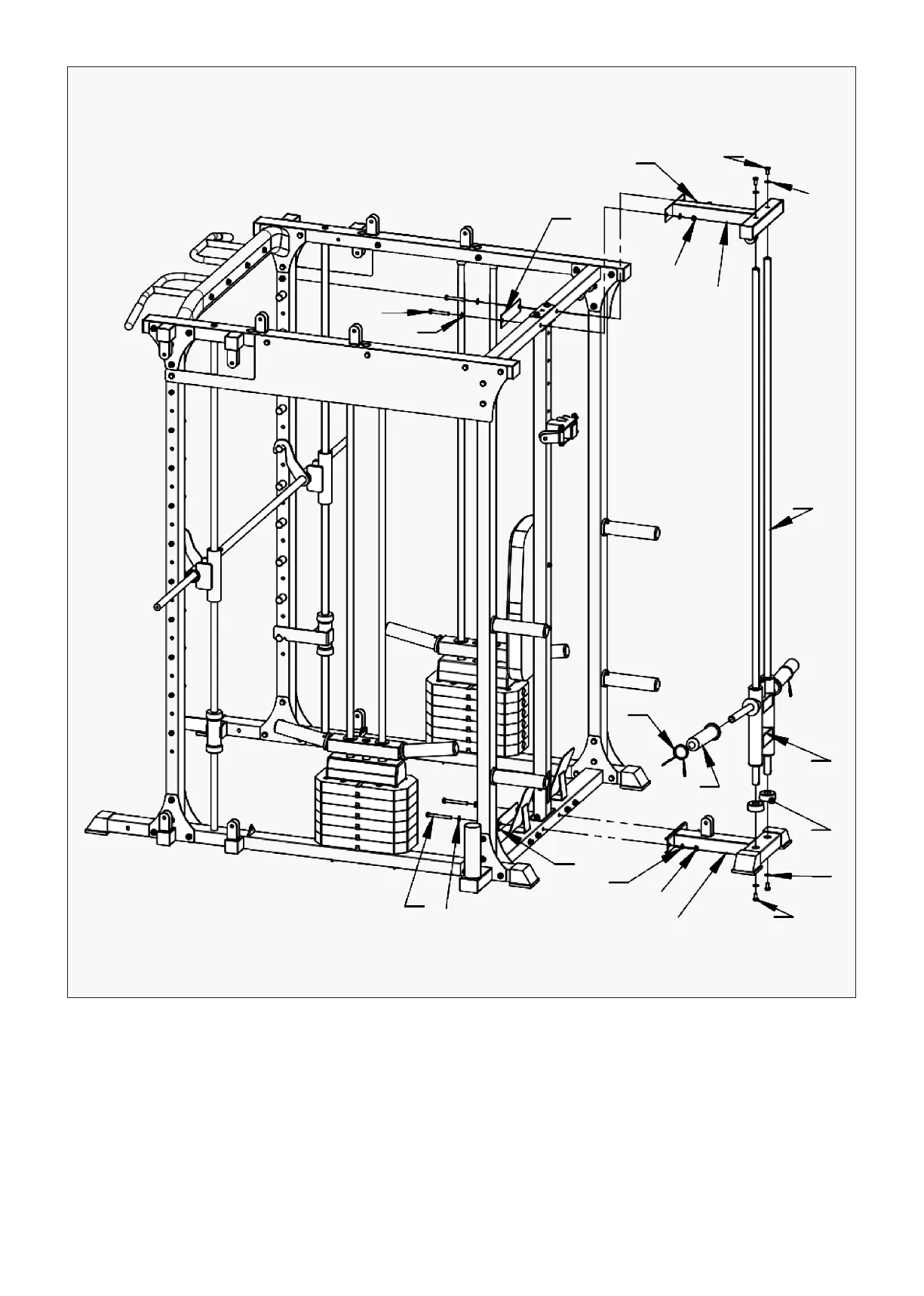

STEP 9
1. Place (#34) in (#33) as shown and tighten with bolts (#94) and flat spacers (#99).
2. Install (#33) to the (#1) side and tighten with (#62), bolts (#92), flat spacers (#99), and nuts (#100).
3. Set (#34) into (#79) and (#35). Attach sleeve (#77) to (#35) and place (#78) on the sleeve.
4. Install (#36) onto (#34) and secure with bolts (#94), flat spacers (#99).
5. Secure the other side to (#21), using (#62) and tighten with bolts (#93), flat spacers (#99) and nut
(#100).
62
99
94
99
100
36
99
93
34
78
77
35
79
99
94
33
100
99
62
99
92
