LSG RB-2 - Page 9

9
RB-2

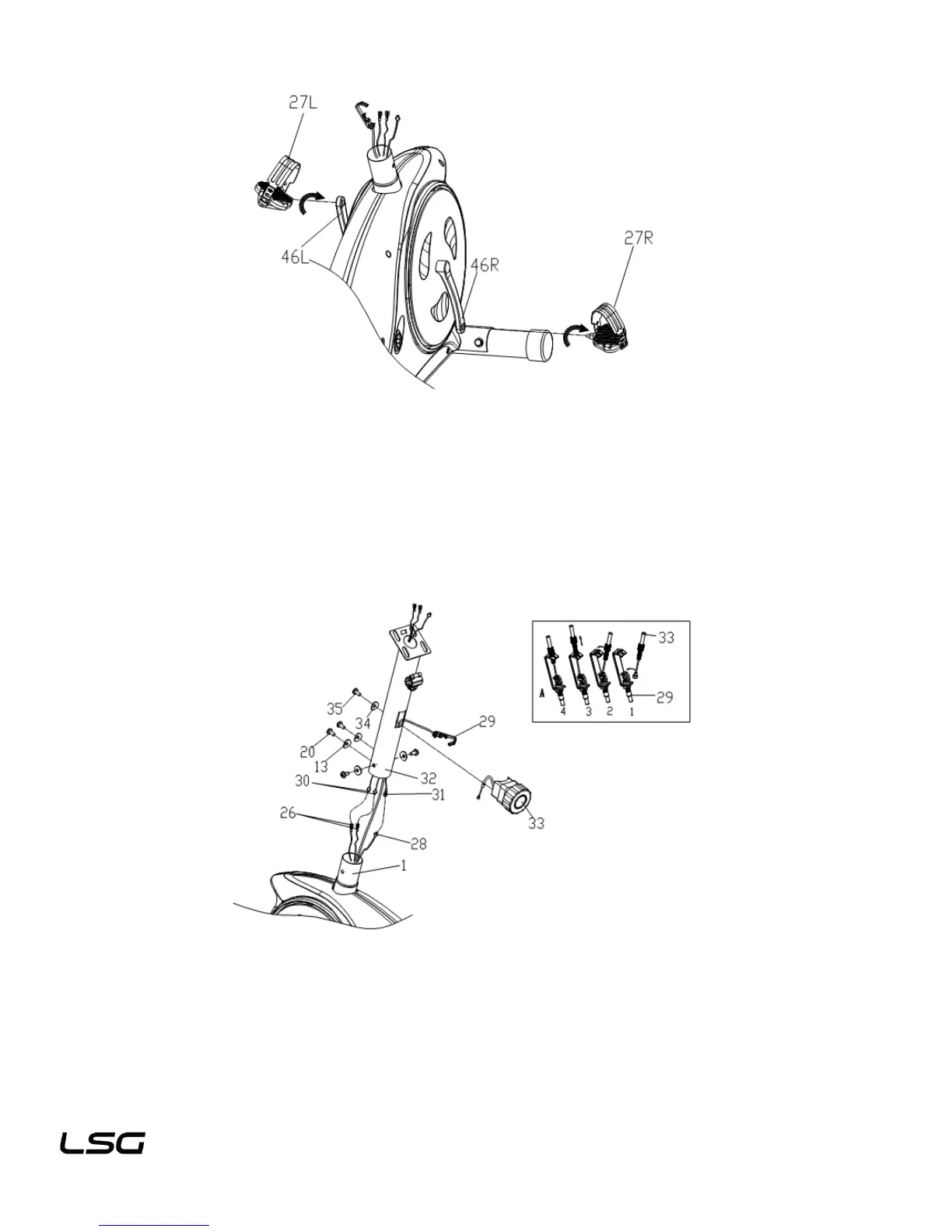

STEP 6:
1. Lock the pedal (27L/R) to the crank (46L/R).
NOTE: To tighten, turn the left pedal COUNTER-CLOCKWISE and the right pedal CLOCKWISE. And please
make sure the pedal (27L/R) are locked tightly during your training, otherwise the pedal will be broken.
IMPORTANT: FAILURE TO FOLLOW PROCEDURES MAY RESULT IN PERMANENT DAMAGE TO YOUR
BIKE.
STEP 7:
1. Connect the extension pulse wire 2 (26) with extension pulse wire 3 (30), and connect the extension
wire (31) with sensor wire (28).
2. B: Feed the tension connecting wire (29) through the bottom of the handlebar post (32) and pull it out
from the hole on the handlebar post (32).
3. Then connect the cable of the tension controller (33) with the hook of the tension connecting wire (29)
