Drive Information page
www.lsi.com/channel/products 195
numbers are shown in the subunits section. The VPort number is a link to the
Drive Information page.
Drive Information page

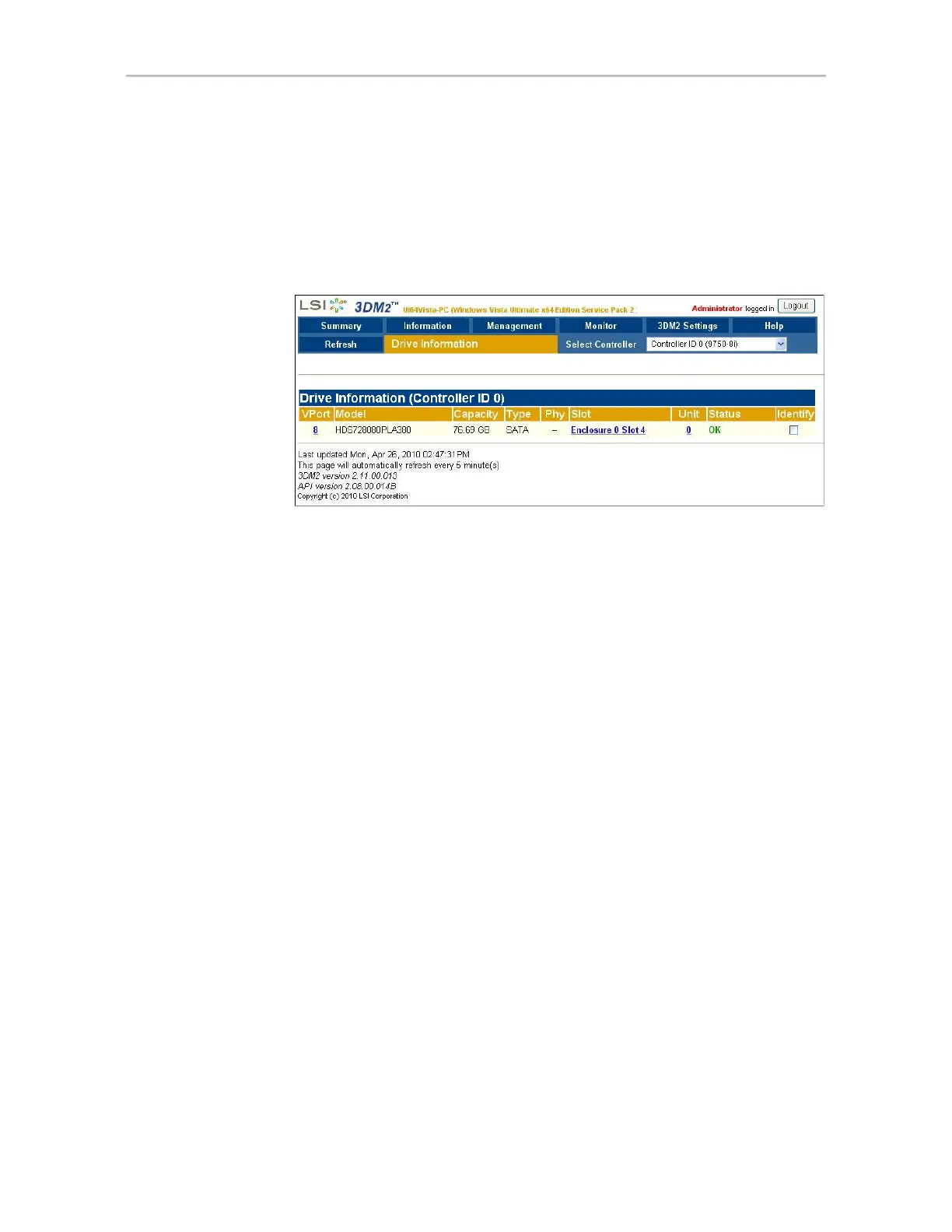

Figure 98. Drive Information Page
The Drive Information page appears when you choose Information >> Drive
Information
from the menu bar, or when you click a VPort # on the Unit
Details page. If you arrive at this page from the VPort # hyperlink on the Unit
Information page, the line showing the VPort # you clicked on is highlighted.
This page shows a list of drives on the current controller and a summary of
each one.
To see additional detail about a particular drive in the Drive Details window,
including the SMART data, whether command queuing is supported and
enabled, and the SATA Link speed, click the link in the VPort # column.
VPort #. The virtual port to which the drive is assigned.
Model. The model of the drive.
