LSI SAS 9300-8i PCI Express to 12Gb/s SAS Host Bus Adapter User Guide
March 2013
Technical Support
Thermal and Atmospheric Limits
5. Insert the HBA into an available PCIe slot. Locate an empty x8 PCIe slot. Remove the blank bracket panel on the
rear of the computer that aligns with the empty PCIe slot. Save this bracket screw, if applicable. Align the HBA to a
PCIe slot. Press down gently, but firmly, to seat the HBA correctly in the slot. The following figure shows how to
insert the HBA into a PCIe slot.
NOTE The shape, size, and locations of the components on your HBA and its
bracket might vary from this illustration. The HBA requires a x8
PCIe slot.

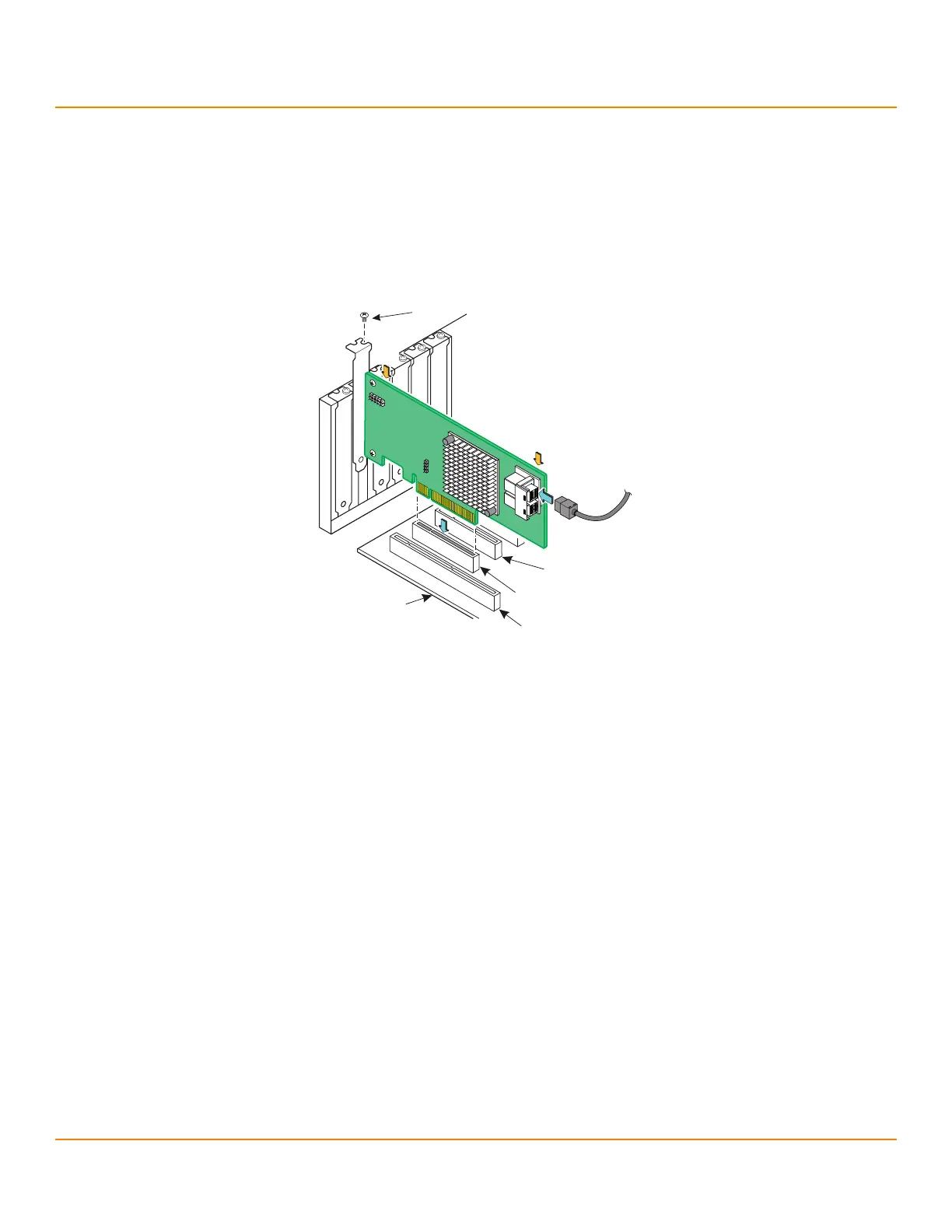

Figure 2 Install an LSI 12Gb/s x8 HBA in a PCIe Slot
6. Secure the HBA bracket to the system’s chassis. Install the bracket screw, if applicable, or engage the system
retention mechanism to secure the HBA to the system’s chassis.
7. Connect SAS cables between the HBA and the SAS backplane or any other SATA or SAS device. The LSI
12Gb/s SAS HBA has two SFF-8643, internal x4, mini-SAS HD connectors. Use cables with an internal mini-SAS HD
connector on one end (to connect to the HBA) and the appropriate connector on the other end to attach to
backplane or SAS/SATA devices.
8. Replace the cover and any power cords, and power up the system. Replace the chassis’s cover, reconnect any
power cords, and reconnect any network cables. Turn on the power.
The hardware installation of your LSI 12Gb/s SAS HBA is complete.
8 Technical Support
For assistance installing, configuring, or running the LSI 12Gb/s SAS HBA, contact LSI Technical Support:
E-mail: support@lsi.com
Phone: 1-800-633-4545 (North America)
00-800-5745-6442 (International)
Website:
www.lsi.com/support
