Installation Quick Guide
Basic Commissioning
• In this step the motor is checked for proper direction
and operation. This test is to be performed solely
from the keypad. Apply power to the drive after all the
electrical connections have been made and protective
convers have been reattached.
• Please go through the following direction to run the
motor.
• Observe the motor’s rotation from the load side and
ensure that the motor rotates counterclockwise
(forward).
• If the motor rotation is not correct, change the
wiring of the motor. (ex. U-V-W > V-U-W)
• This step shows how to setup the sequence and
reference method of the drive. The sequence method
determines how the drive receives its start and stop
command and the reference method determines how
the speed of the motor is controlled. Make sure all
protective covers have been reattached and power is
turned on.

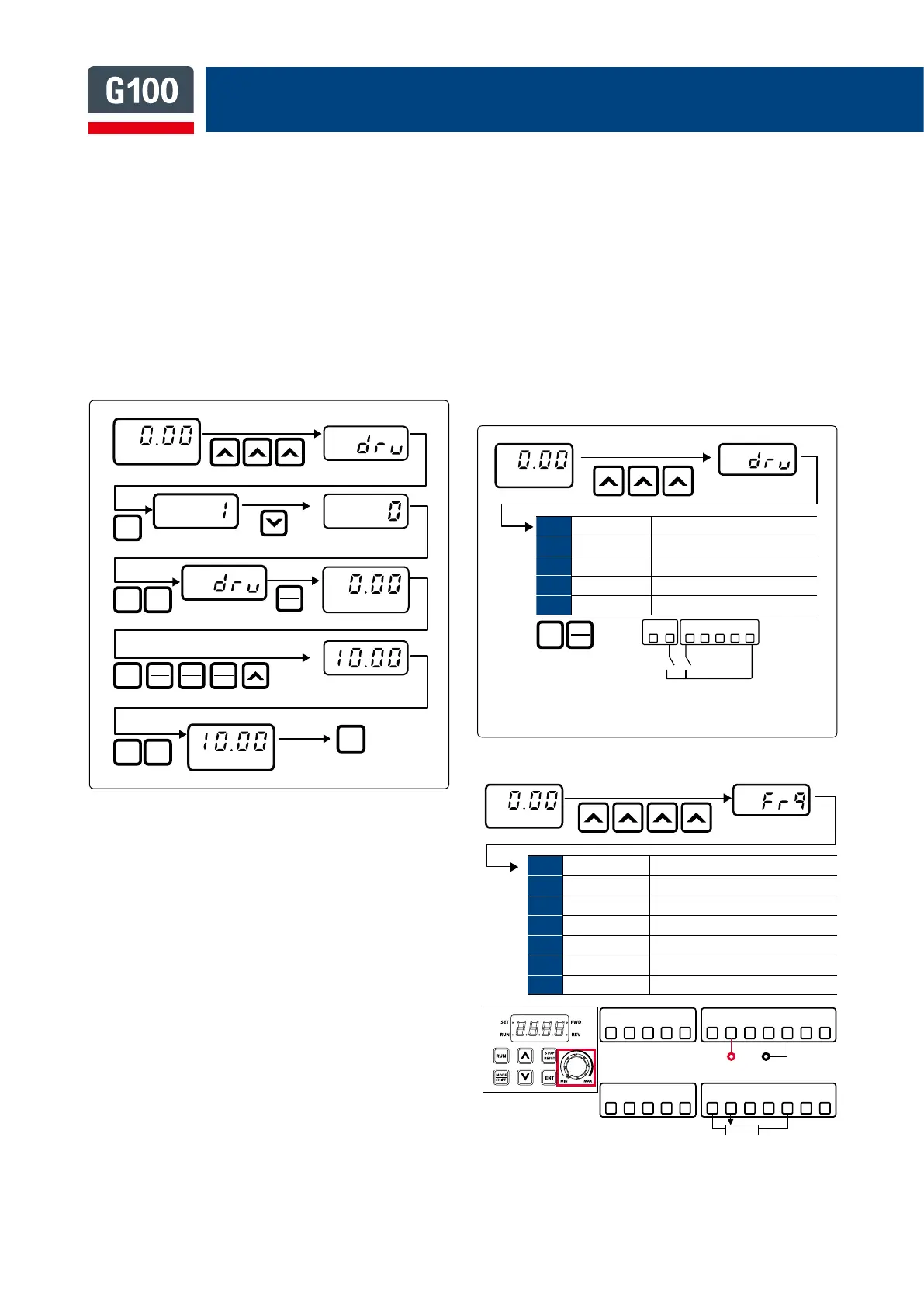

• Select start / Stop method
Motor direction inspection Start/Stop and speed source settings
0: Keypad
0
Keypad Default
1
Fx/Rx-1
2
Fx/Rx-2
3
Int 485
4
Field Bus
• Select frequency method
0 ~ 10 Vdc
Potentiometer resistance: 1~5kΩ
+ -
A1 B1 C1 A2 C2
A1 B1 C1 A2 C2
VR V1 I2 A0 CM S+ S-
VR V1 I2 A0 CM S+ S-
4: V0, Built-in pot
2: V1, 0~10V
0
KeyPad-1 Default
1
KeyPad-2
2
V1 External potentiometer
4
V0 Built-in potentiometer
5
I2
6
Int 485
8
Field Bus
RUN
MODE
SHIFT
MODE
SHIFT
MODE
SHIFT
MODE
SHIFT
ENT
ENT
ENT
ENT
ENT ENT
Operation
Operation
Operation
Operation
Operation
Fx
Rx
24 P1 P1 P2 P3 P4 CM
1: Fx/Rx-1
2: Fx/Rx-2
Refer to the manual
To Next Page
