Ethernet IP Quick Start
S100
2
LSIS S100 Ethernet Setup Guide
Rev C_1-5-2018

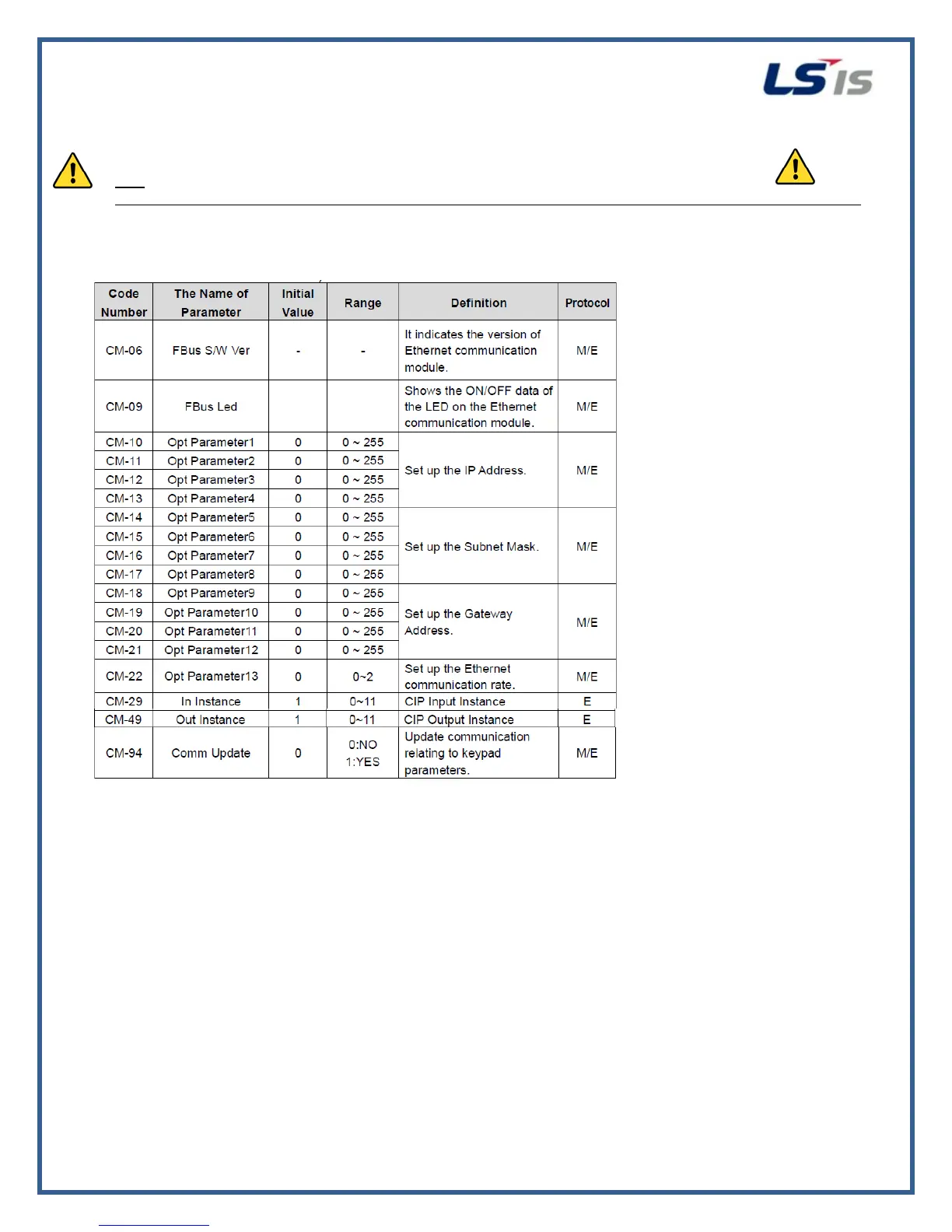

Figure 2. S100 Communication Group Parameters to change
4. Apply all changes by setting CM94=1. This parameter setting will return to ‘0after being set.
And set CNF48=1 to make the drive retain the parameter settings after a power loss.
NOTE: If this step is not completed, the drive will NOT retain the communication parameters after a power cycle.
2.1 Parameters to change (CM Group)
2.1.1 Enter IP Address, Subnet Mask, and Gateway information
The IP Address, Subnet Mask, and the Gateway setting are broken down into octets. See the example below on
how to setup an IP address. The same setup applies to subnet mask and gateway settings.
Example:
IP Address: 196.168.10.131 Programmed into parameters CM-10 through CM-13.
CM-10 = 196
CM-11 = 168
CM-12 = 10
CM-13 = 131
