LSIS S100 Setup Guide

Ethernet IP Quick Start
S100
3
LSIS S100 Ethernet Setup Guide
Rev C_1-5-2018
2.2 Parameters to Change (DRV Group)
Change the Command Source DRV06 to 4 (Field Bus). Change the Command Source DRV07 to 8 (Field Bus).
This allows the PLC to control the speed and run commands.

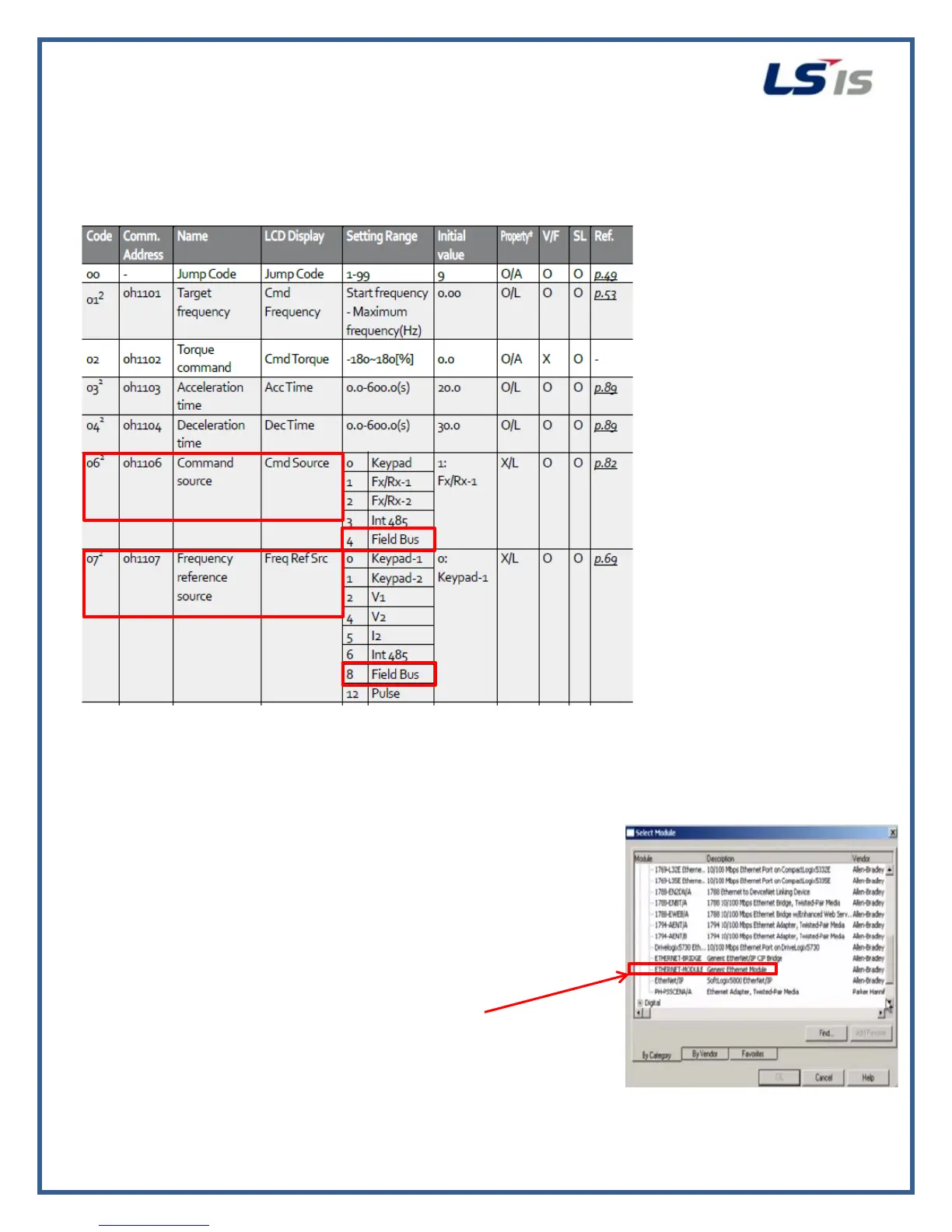

Figure 3. S100 Drive Group Parameters to Change
3 Allen Bradley PLC Setup for the LSIS S100
In RS Logix perform the following steps.
1. Open a project previously created.
2. Double click the Ethernet port in the I\O Configuration tree (In the left
hand window)
a. Under the General tab, enter the IP Address you will be using
and click OK.
3. Right click Ethernet, located under the I\O Configuration tree.
a. Select New Module
i. Expand the Communication tree
1. Scroll to find Generic Ethernet
Module
2.
Select it and click OK
Figure 4. AB Generic Ethernet Module Selection
