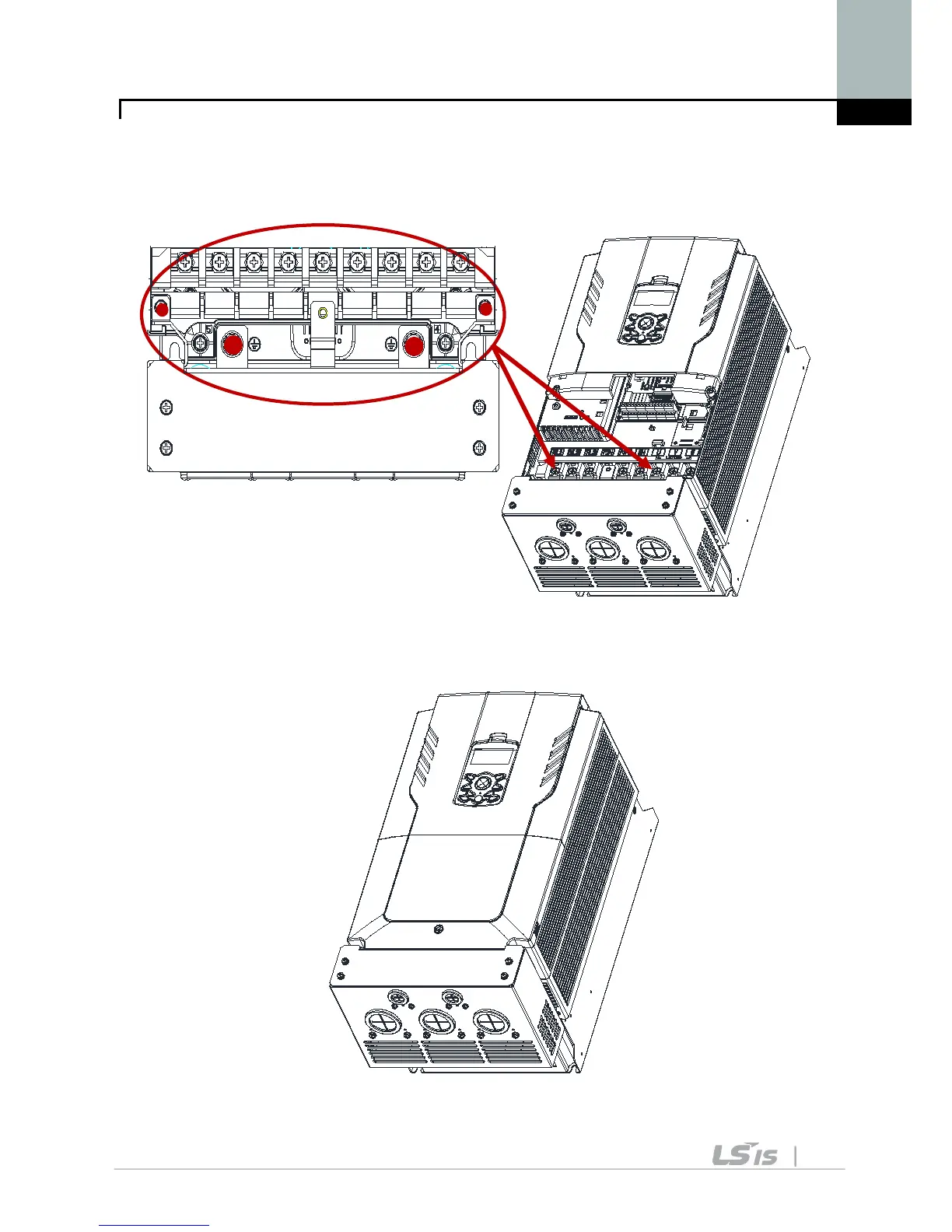

S100/H100 Conduit Option Installation Manual
② Fasten the Conduit Option to fit on the ground terminals and both ends (4points) of the product using the
prescribed bolt as shown in the Figure 14.
Figure 14. Install
③ Install the Power cover again.
Figure 15. After installation
13
