Chapter 13 Analog Input Module (XBF-AD04C)

(6) In case of IEC, you can see variables with diverse option at ‘View’ menu like (1)~(5).

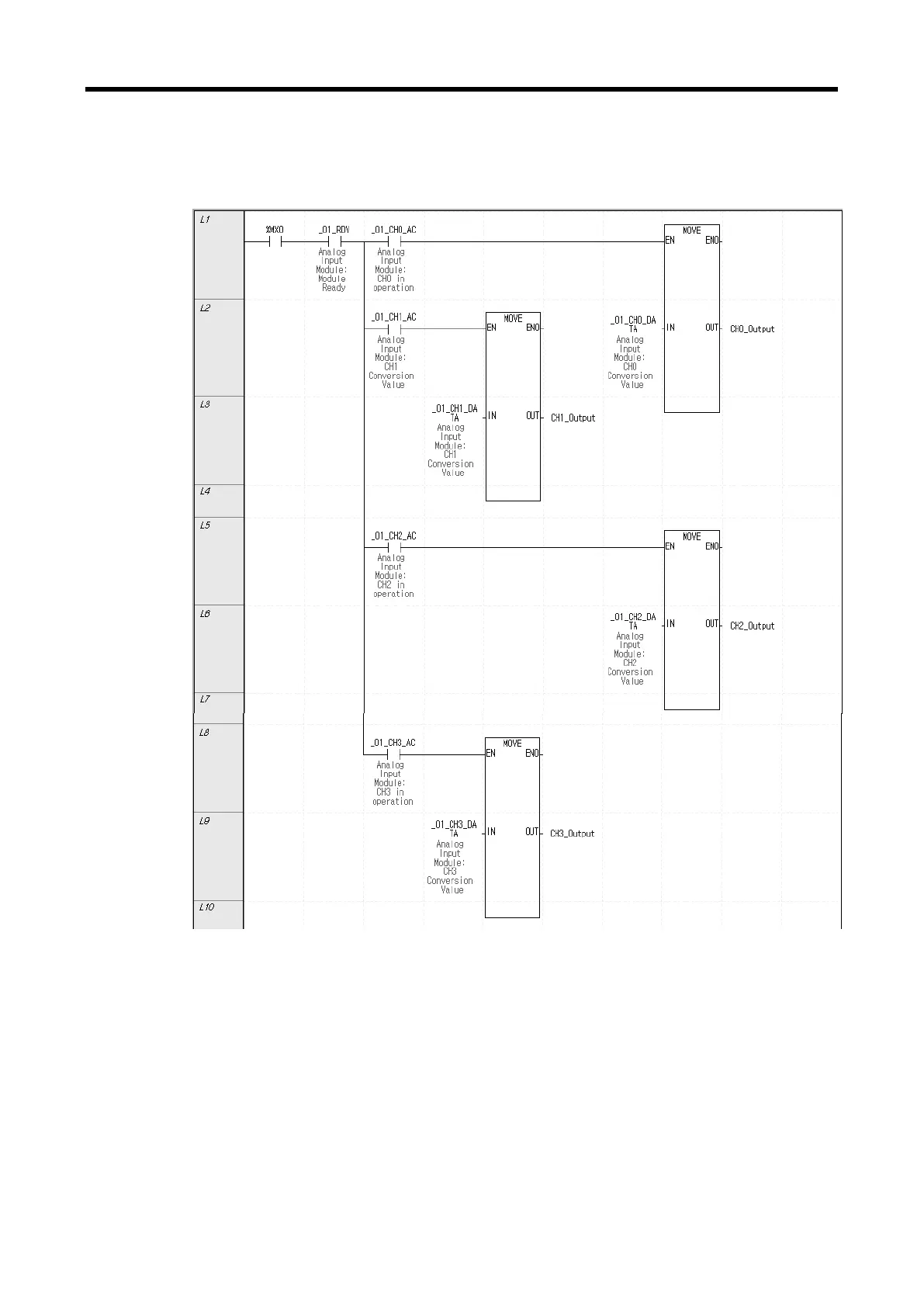

The following is example selecting ‘View Variable/Comment’ at IEC type.

13 - 35
