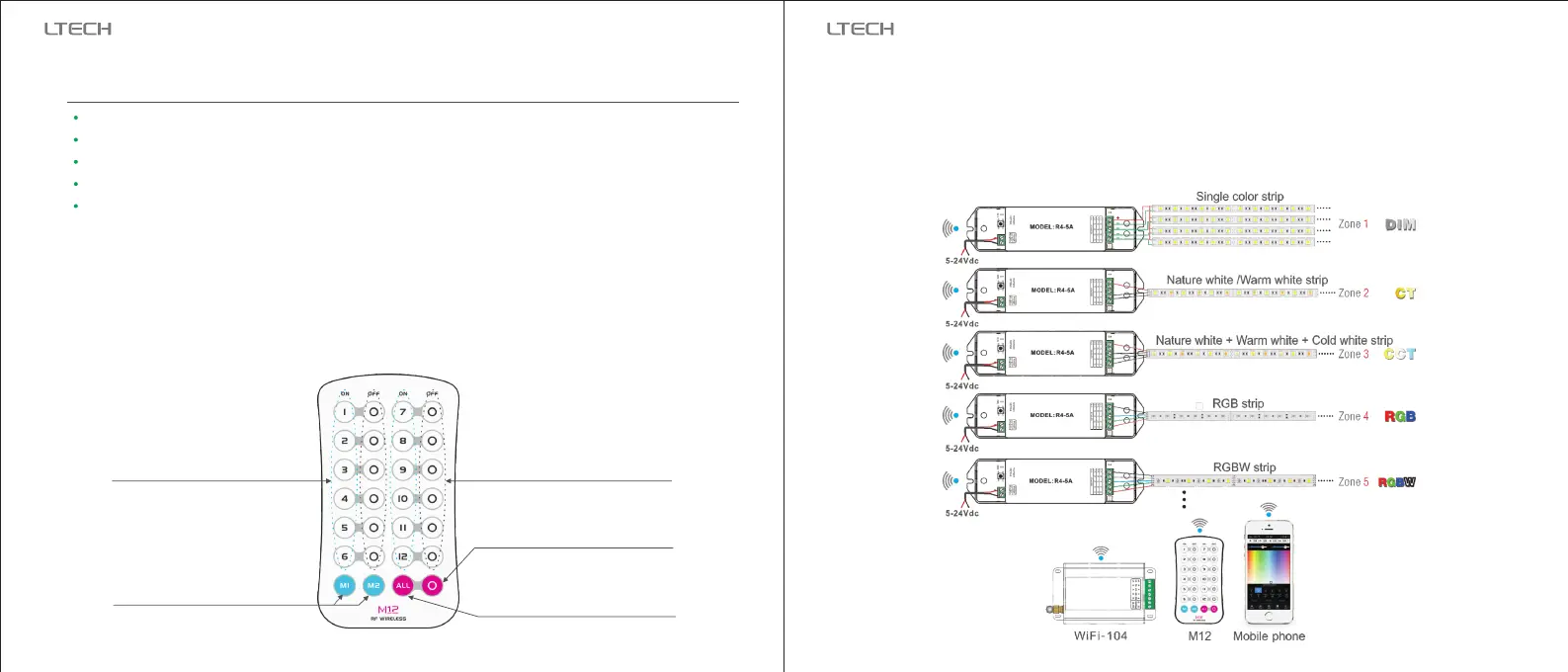

7. Wiring Diagram
Attn]: [
7.1 Connection Between Zone Receiver to LEDs ( Same as WiFi-104 )
Turn on zones
Long press to save scene
applied for 12 zones
Turn off zones
Short press to turn off all zones
Short press to turn on all zones
Long press to turn on the key tone
Long press to turn off key tone
(long press to increase brightness
slowly under the mode of dimming or CT.)
(long press to decrease brightness
slowly under the mode of dimming or CT)
(excluding the zones being closed separatedly)
Remote Operating Instructions
6.
Short press ”MATCH” on WiFi-104, , press any key on M12, again,
ID matched.
the buzzer long beep the buzzer beep
Long press ”MATCH” on Wifi-104 above 6s, the buzzer long beep, ID cancelled
(cancelled all matched remotes).
Learning ID
Cancelling ID
M12 Remote
Working Voltage:
Transmitting Frequency:
Remote Distance:
Dimensions:
Weight (G.W):
3Vdc (CR2032 button battery)
2.4GHz
30m (to WiFi-104)
L104×W60×H9(mm)
42g
All zones could be used for same LED types or not. e.g. single color dimming in all zones, all set to
DIM type. Set different LED type in each zone accordingly (Dimming, CT or RGB, etc.).
Short press to recall scene
WiFi-104 LED Controller WiFi-104 LED Controller
Wifi-104 itself is defaulted as zone NO.1, connecting lights is optional, slave control will be zone NO.1,
if not connected.
