Current Outputs

MXD70 Setpoints, Current Outputs,
and Digital Inputs Configuration Guide
- 25 -
Current Outputs


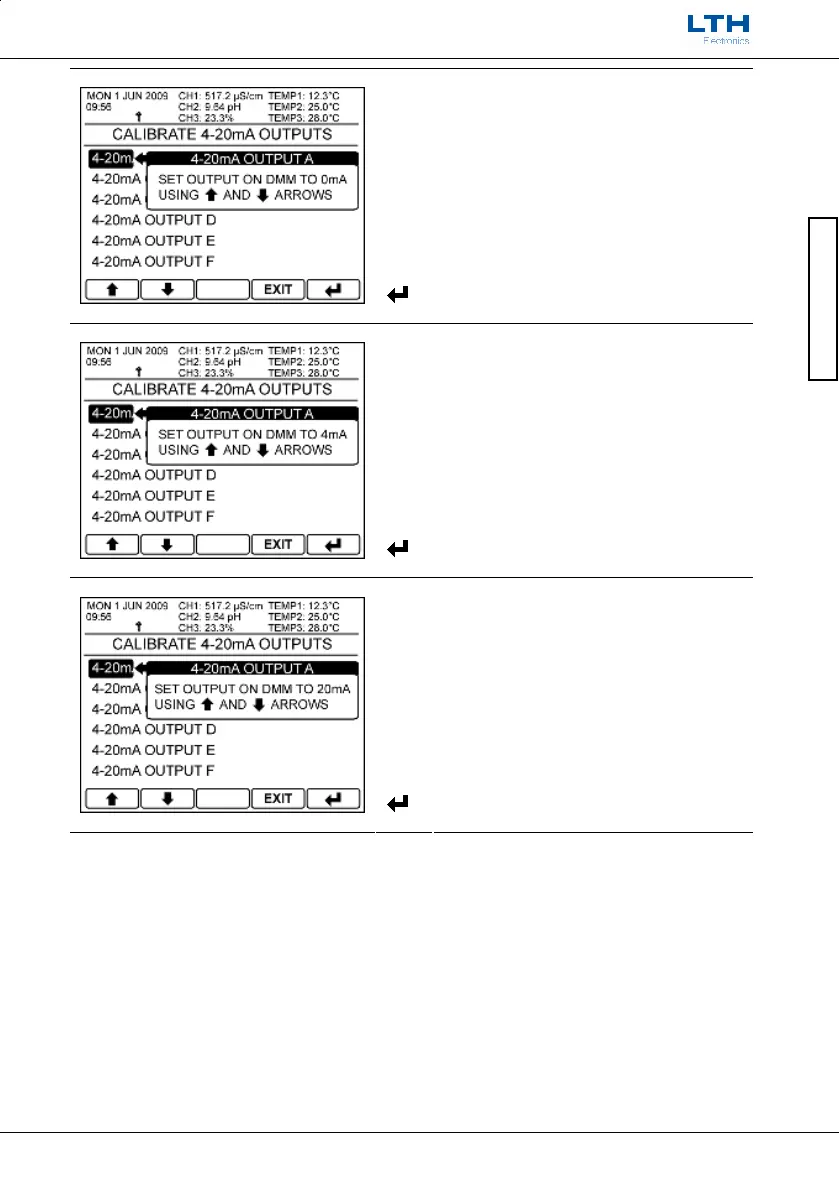

Adjust 0mA Output
Using the  and  buttons adjust the current output
until it reads the desired value on your current meter.
Please keep in mind that the current output cannot
go below 0mA.
/ – Adjust Output
EXIT
– Cancel
– Save Adjustment
Adjust 4mA Output
Using the
 and  buttons adjust the current output
until it reads the desired value on your current meter.
/ – Adjust Output
EXIT
– Cancel
– Save Adjustment
Adjust 20mA Output
Using the
 and  buttons adjust the current output
until it reads the desired value on your current meter.
/ – Adjust Output
EXIT
– Cancel
– Save Adjustment
